Direct procurement1999 Model

Sell your Toshiba BTD 13F R22 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

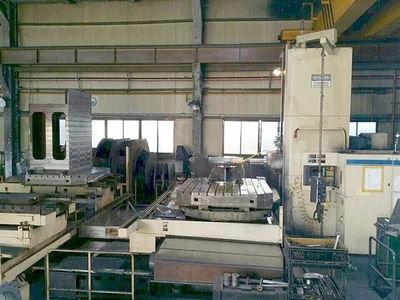

Make: Toshiba
Model: BTD 13F R22
Year: 1999
Category: CNC Boring Mills
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Toshiba BTD 13F R22 Specifications

Table Size: 70.9'' X 86.6''
Table Load Capacity: 22,000 LBS.
Spindle Diameter: 5.1''
Spindle Speed: 2500 RPM
Z Axis Travel: 118''
Z Axis Travel: 90.5''
Z Axis Travel: 63''
Z Axis Travel: 27.5''
Rapid Traverse Rate: 396 IPM
Feed Rate: 396 IPM
Main Motor: 40 H.P. A.C.
Spindle Taper: #50
Auto Tool Change Capacity: 40 ATC
Maximum Tool Diameter: 9.05''
Tool Length: 15.75''
Approx Machine Weight: 74,800 LBS.

Do you have a Toshiba BTD 13F R22 to sell?

We are actively seeking a 1999 Toshiba BTD 13F R22 CNC Boring Mill. This robust machine is designed for high-performance boring applications, making it an excellent choice for manufacturers looking to enhance their production capabilities. With two tables measuring 70.9 inches by 86.6 inches, this model boasts a remarkable table load capacity of 22,000 pounds, ensuring it can handle substantial workpieces with ease. The spindle diameter of 5.1 inches, coupled with a spindle speed of 2500 RPM, provides the versatility and efficiency required for a variety of machining tasks. The Toshiba BTD 13F R22 offers three ranges of Z-axis travel, accommodating lengths of 118 inches, 90.5 inches, 63 inches, and 27.5 inches. This flexibility allows operators to tackle complex projects while achieving precision with a rapid feed rate of 396 IPM and a cutting feed rate of the same.

The machine's main motor, rated at 40 H. P. A. C., ensures that it operates at optimal performance levels, while the #50 spindle taper allows for a wide range of tooling options. In terms of tool management, this model is equipped with a tool changer capacity of 40 ATC, allowing for quick and efficient tool swaps. It can accommodate tools with a maximum diameter of 9.05 inches and a maximum length of 15.75 inches, with a maximum tool weight of 44 pounds.

Weighing in at 74,800 pounds, the Toshiba BTD 13F R22 is a sturdy addition to any shop floor, delivering both reliability and precision. Sellers often part with machines like this due to various reasons, including upgrading to newer technology, downsizing operations, or closing facilities. Whatever your reason may be, we understand the importance of a smooth transition. If you have a 1999 Toshiba BTD 13F R22 or similar CNC boring mill, we want to hear from you!
