Direct procurement1986 Model

Sell your Toshiba BTD-11B today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Toshiba
Model: BTD-11B
Year: 1986
Category: CNC Boring Mills
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Toshiba BTD-11B Specifications

Spindle Diameter: 4.33”
Spindle Nose Taper Hole: No. 50
Spindle Extension Length: 24.8”
Headstock Vertical Travel: 59.1”
Table Cross Travel: 98.4”
Table Longitudinal Travel: -5.9” to 57.1”
Spindle Speed High Range: 400 – 1600 RPM
Low Range: 8 – 400 RPM
Rapid Feed: 126 IPM
Main Motor: 20 HP
Required Floor Space: 284” x 246” x 173”
Machine Weight: 48,510 lbs
Control System: Allen Bradley 9/Series
Max Weight on Table: 17,640 lbs
Max Spindle Speed: 1600 RPM
Overall Height: 173”
Approximate Dimensions: 284” x 246” x 173”
Approximate Weight: 48,510 lbs
Other: Chip Conveyor

Do you have a Toshiba BTD-11B to sell?

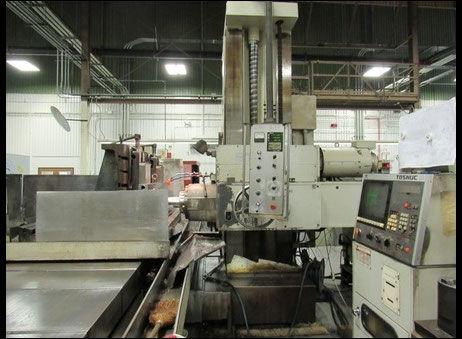

We are actively seeking a 1986 Toshiba BTD-11B CNC Horizontal Boring Mill. This machine is known for its robust performance and reliability, making it a valuable asset in any machining environment. With a substantial table working area of 59.1 inches by 98.4 inches, it can accommodate large workpieces with ease. The BTD-11B features a spindle diameter of 4.33 inches and a No. 50 taper hole, ensuring compatibility with a wide range of tooling options. The spindle extension length of 24.8 inches allows for versatile machining capabilities, while the headstock vertical travel of 59.1 inches provides ample clearance for various operations.

In terms of travel, the table offers impressive cross travel of 98.4 inches and longitudinal travel ranging from -5.9 inches to 57.1 inches, giving operators the flexibility needed for intricate tasks. The spindle speed ranges from 8 to 1,600 RPM, allowing for both high-speed and low-speed machining, which is crucial for different materials and applications. With a rapid feed rate of 126 IPM, this machine enhances productivity by minimizing idle time. The Toshiba BTD-11B is equipped with an Allen Bradley 9 Series Control, providing user-friendly operation and reliable performance. Its powerful 20 HP main motor ensures that it can handle demanding jobs without compromising on speed or accuracy.

The machine's overall weight of 48,510 pounds and required floor space of 284 inches by 246 inches by 173 inches make it a sturdy addition to any workshop. Sellers often part with machines like the Toshiba BTD-11B for various reasons, including upgrading to newer technology, downsizing their operations, or even plant closures. If you find yourself in a similar situation, we are here to help. If you're ready to sell your Toshiba BTD-11B or have any questions about our buying process, don't hesitate to reach out. Your machine deserves a new home where it can continue to be productive and valuable.
