Direct procurement1980 Model

Sell your Tos W100A today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

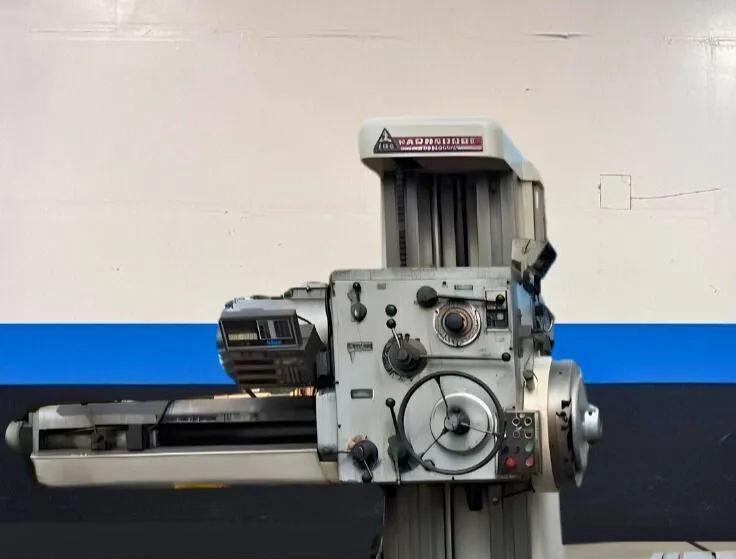

Make: Tos
Model: W100A
Year: 1980
Category: CNC Horizontal Boring Mills
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Tos W100A Specifications

Spindle Size: 4" 101.6 mm
X-Horiz Tvl of Table: 63" 1,600.2 mm
Y-Vert Tvl of Head: 44" 1,117.6 mm
Power: 15 hp 11.2 kW
RPM: 1,120 RPM 1,120 RPM
Table-W: 49.2" 1,249.7 mm
Table-L: 49.2" 1,249.7 mm
Spindle Tvl: 35.43" 899.92 mm
Dimensions: 234″ x 118″ x 118″ High 234″ x 118″ x 118″ High
Weight: 30,905 lbs. Approx. 30,905 lbs. Approx.
Travels: X Axis (Table Traverse Travel): 63.00″ Y Axis (Headstock Vertical Travel): 44.09″ Z Axis (Table Longitudinal Travel): 49.21″ W Axis (Spindle Stroke): 27.6″
Feed Rates: Feeds For Boring – 32 Stages: 0.0008 – 0.47 inch/rev. Feeds For Milling – 18 Stages: 0.71 – 35.43 inch/min Rapid Traverse (Spindle Stroke, Headstock and Table): 110.24 inch/min
Rotary Table: Length: 49.21″ Width: 49.21″ Max Weight on Table: 6,624 lbs Indexing: 1 Degree
Spindle: Spindle Diameter: 3.94″ Spindle Range: 7.1 – 1,120 RPM Spindle Taper: 50 Power: 15 HP
Facing Head: Diameter: 23.62″ Slide Travel: 8.26″ Facing Diameter Max: 35.43″ Speed Range: 7.1 – 224 RPM
General: Power: 66FLA / 205-220v / 3-Phase Machine Dimensions: 234″ x 118″ x 118″ High Machine Weight: 30,905 lbs. Approx.

Do you have a Tos W100A to sell?

We are actively seeking a 1980 TOS VARNSDORF W100A CNC Horizontal Boring Mill. This robust machine features a 4" spindle size and is capable of impressive performance with a maximum RPM of 1,120. The W100A offers ample travel capabilities, with an X-axis table traverse of 63" and a Y-axis vertical head travel of 44". The spindle travel measures 35.43", ensuring versatility across various machining tasks.

With a powerful 15 HP motor, this machine is designed to handle demanding operations while delivering precision and reliability. The horizontal table type of the W100A boasts a table width and length of 49.2", making it suitable for larger workpieces, while the rotary table can support loads of up to 6,624 lbs. The machine's rapid traverse rate reaches 110.24 inches per minute, enhancing productivity during operation. With 32 feed stages for boring ranging from 0.0008 to 0.47 inch/rev, as well as 18 stages for milling from 0.71 to 35.43 inch/min, the TOS VARNSDORF W100A is engineered for efficiency.

This machine, measuring 234" x 118" x 118" high and weighing approximately 30,905 lbs, is a substantial investment for any machining operation. Its versatility is further highlighted by the facing head with a diameter of 23.62" and a maximum facing diameter of 35.43". If you are looking to sell your TOS VARNSDORF W100A CNC Horizontal Boring Mill, we want to hear from you! Contact us today to discuss how we can help you get the best value for your equipment.
