Direct procurement1999 Model

Sell your Okuma LB15II-MW today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

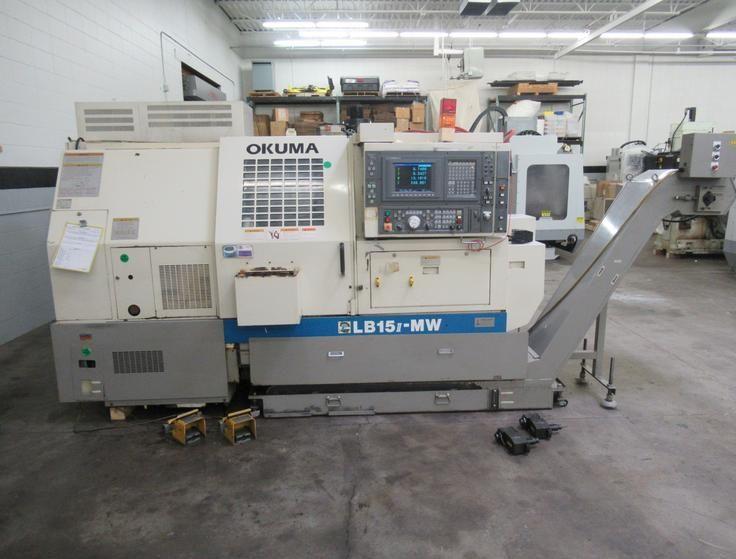

Make: Okuma
Model: LB15II-MW
CNC Control: OSP-U100L CNC Control
Year: 1999
Category: CNC Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okuma LB15II-MW Specifications

Control: OSP-U100L CNC Control
Spindle Nose: A2-6
Main Spindle Chuck Size: Lexair FB10-32 10" Full Bore Air Collet Chuck with Hardinge S30 Master Collet
Sub-Spindle Chuck Size: 16C
Max Swing Over Bed: 15.75"
Max Turning Diameter: 9.84"
Max Turning Length: 19.69"
Turret Travels (X/Z): 5.91" / 20.47"
Turret Capacity: 12 Stations (All Live)
Main Bar Capacity: 3" with Hardinge S30 Collets
Other: Max Capacity / 3-1/8" Spindle Bore
Main Spindle Speeds: 3800 RPM
Main Spindle Drive: 30HP
Main Spindle Orientation: Full C-Axis
Sub-Spindle Speeds: 4500 RPM
Sub-Spindle Orientation: 15° Indexing
Live Tool Speeds: 4500 RPM
Rapids: 787 IPM

Do you have a Okuma LB15II-MW to sell?

We are actively seeking a 1999 Okuma LB15II-MW CNC Turning Center to enhance our inventory of high-quality used CNC machines. This model is renowned for its exceptional capabilities, featuring a C-axis, sub-spindle, and live tool turret that make it an ideal choice for precision machining tasks. The OSP-U100L CNC control system provides intuitive operation, allowing for seamless programming and execution of complex parts. With a maximum swing over the bed of 15.75 inches and a turning diameter of 9.84 inches, the LB15II-MW accommodates a wide range of workpieces, while the turning length of 19.69 inches allows for versatility in production runs. Equipped with a robust main spindle that boasts speeds of up to 3800 RPM and a powerful 30HP drive, this machine ensures high efficiency and productivity.

The spindle nose features an A2-6 configuration, complemented by a Lexair FB10-32 10" full bore air collet chuck, offering secure and reliable workholding. Additionally, the sub-spindle operates at an impressive 4500 RPM with 15° indexing, enhancing the machine's ability to complete intricate operations with ease. The turret of the LB15II-MW provides 12 stations, all equipped with live tools, allowing for detailed milling and drilling operations without the need for part repositioning. With turret travels of 5.91 inches in the X-axis and 20.47 inches in the Z-axis, this CNC turning center is designed for extensive machining tasks. The main bar capacity of 3 inches with Hardinge S30 collets and a maximum spindle bore capacity of 3-1/8 inches further underscore its capability for handling various materials.

We invite you to sell your 1999 Okuma LB15II-MW CNC Turning Center to Superior Machine Tools. Our team is dedicated to providing fair evaluations and competitive offers for your used machinery, ensuring you receive the best value in the market. Contact us today to discuss your machine's specifications and explore your selling options!
