Direct procurement2005 Model

Sell your Okamoto OGM today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

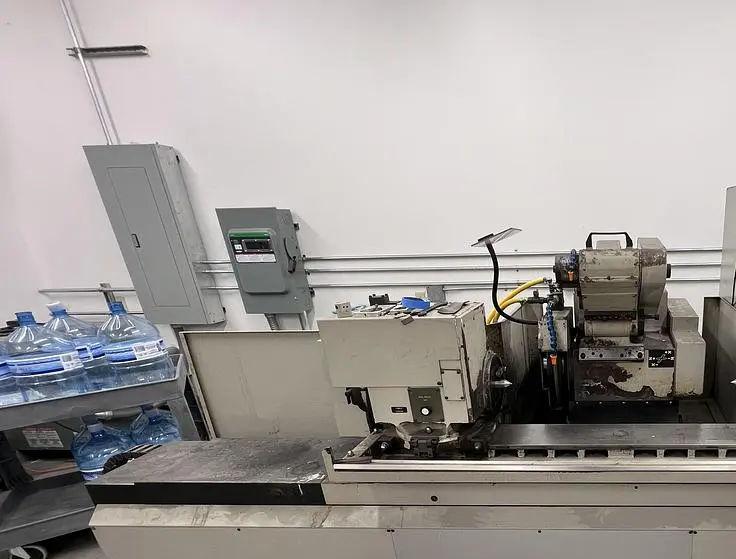

Make: Okamoto
Model: OGM
CNC Control: Fanuc 21-GA (MDI Multi-Diameter Grinding)
Year: 2005
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okamoto OGM Specifications

Control: Fanuc 21-GA (MDI Multi-Diameter Grinding)
Swing Over Table: 12.6"
Distance Between Centers: 36"
Max. Grinding Diameter: 12"
Max. Load Between Centers: 330 lbs
Grinding Wheel Size: 14" x 1.5" x 5"
Grinding Wheel Speed: 1,820 RPM
Spindle Motor: 7.5 HP
Machine Weight: Approx. 9,250 lbs
Floor Space Required: 144" x 70" x 75"
ID Grinding Attachment: Swing-down internal grinding spindle for versatile ID/OD processing
Wheelhead Swivel: +/- 30 Degrees
Workhead Swivel: +90 to -30 Degrees
Table Swivel: 0 to 8.5 Degrees
Z-Axis Travel (Table): 50"
X-Axis Travel (Wheelhead): 11.8"
Minimum Increment: 0.00001" (High-resolution feedback)

Do you have a Okamoto OGM to sell?

We are actively seeking a 2005 Okamoto OGM-1236UB Universal Cylindrical Grinder. This exceptional machine is known for its precision and versatility, making it an ideal choice for various grinding applications. With a swing over the table of 12.6 inches and a distance between centers of 36 inches, the OGM-1236UB allows for impressive grinding capabilities. It can handle a maximum grinding diameter of 12 inches and supports a load of up to 330 lbs between centers, making it suitable for a wide range of workpieces. Equipped with a Fanuc 21-GA control system, this grinder features multi-diameter grinding capabilities, ensuring that operators can achieve high levels of accuracy and efficiency.

The grinding wheel size of 14 inches by 1.5 inches by 5 inches, combined with a grinding wheel speed of 1,820 RPM, provides excellent material removal rates. The robust 7.5 HP spindle motor ensures that it can handle demanding tasks with ease. The OGM-1236UB's design incorporates an ID grinding attachment, featuring a swing-down internal grinding spindle for versatile ID/OD processing. Additionally, the machine boasts a wheelhead swivel of +/- 30 degrees and a workhead swivel ranging from +90 to -30 degrees, allowing for precise angular adjustments. The table swivel capability of 0 to 8.5 degrees further enhances its versatility.

With Z-axis travel of 50 inches and X-axis travel of 11.8 inches, operators can achieve fine adjustments with a minimum increment of 0.00001 inches, thanks to its high-resolution feedback system. If you have a 2005 Okamoto OGM-1236UB that you are looking to sell, we would love to hear from you. At Superior Machine Tools, we specialize in purchasing used CNC machines and can offer you a fair price along with a hassle-free transaction. Contact us today to discuss your machine and get an offer that meets your expectations.
