Direct procurement1981 Model

Sell your Okamoto 820N today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

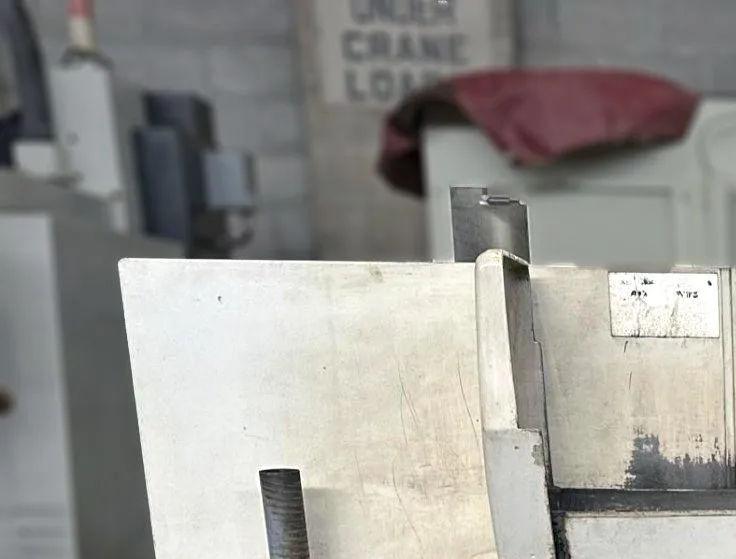

Make: Okamoto
Model: 820N
Year: 1981
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okamoto 820N Specifications

Spindle: Horizontal
Magnetic Chuck Working Surface-L: 20" 508 mm
Magnetic Chuck Working Surface-W: 8" 203.2 mm
Max Height Under New Wheel: 15.6" 396.24 mm
Max Longitudinal Travel: 25.59" 649.99 mm
Cross Travel: 9.05" 229.87 mm
Cross Feed Handwheel Graduation: 0.0004" 0.0102 mm
Vertical Handwheel Graduation: 0.00005" 0.0013 mm
Table Longitudinal Feeds Range (Variable): 1 - 83 ft/min. 25.3 m/min.
Max Spindle Speed: 6,000 RPM 6,000 RPM
Max Grinding Wheel Diameter: 8" 203.2 mm
Max Grinding Wheel Width: 1" 25.4 mm
Max Grinding Wheel Hole Diameter: 1.25" 31.75 mm
Grinding Wheel Power: 3 hp 2.2 kW
Electrics: 230/3/60 230/3/60
Dimensions: 90" x 65" x 72" 90" x 65" x 72"
Weight: 3,500 lbs 3,500 lbs

Do you have a Okamoto 820N to sell?

We are actively seeking a 1981 Okamoto 820N Reciprocating Surface Grinder to enhance our inventory of quality CNC grinding machines. This model is well-regarded for its precision and reliability, making it a sought-after choice for many manufacturing operations. The Okamoto 820N features a horizontal spindle design, enabling efficient grinding processes with a maximum spindle speed of 6,000 RPM. It comes equipped with an 8" x 20" magnetic chuck, providing a stable and secure work surface for various grinding applications. The machine boasts a maximum height under the new wheel of 15.6 inches, and its longitudinal travel reaches up to 25.59 inches, allowing for versatility in handling different workpieces.

With a cross travel of 9.05 inches, operators can achieve precise movements and adjustments. The variable table longitudinal feeds range from 1 to 83 feet per minute, accommodating a wide range of grinding tasks, while the cross feed handwheel graduation of 0.0004 inches ensures meticulous control. This grinder is powered by a robust 3 HP motor, providing the necessary strength for demanding operations. The machine's dimensions are 90" x 65" x 72", and it weighs approximately 3,500 lbs, making it a substantial addition to any workshop. With its durability and advanced features, the Okamoto 820N is an excellent investment for businesses looking to improve their grinding capabilities.

If you have a 1981 Okamoto 820N or any other used CNC machines to sell, contact us today. At Superior Machine Tools, we offer competitive prices and a seamless selling experience. Let us help you unlock the value of your machinery!
