Direct procurement1994 Model

Sell your Okamoto OKAMOTO today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Okamoto
Model: OKAMOTO
Year: 1994
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okamoto OKAMOTO Specifications

Swing over table: 8.66"
Distance between centers: 19.68"
Maximum work piece diameter: 7.87"
Maximum weight between centers: 44 Lbs.
Grinding wheel size: 12" x 1" x 5"
Grinding wheel speeds: 1880 / 2010 / 2210 RPM
Wheelhead X axis travel: 7.87"
Wheelhead swivel angle: +/- 30°
Wheelhead least travel increment: 0.00001"
Wheelhead continuous feed rate: 0.0001" - 157.48"
Wheelhead rapid feed rate: 157.48"
Table Z axis travel: 25.59"
Table swivel angle: -4° to 9°
Table least travel increment: 0.00001"
Table continuous feed rate: 0.0001" - 157.48"
Table rapid feed rate: 157.48"
Workhead spindle taper: #3 Morse Taper
Workhead spindle bore: .068"
Workhead spindle speed: 15 - 500 RPM
Workhead swivel angle: -30° - 90°
Tailstock stroke: 0.78"
Tailstock taper: #3 Morse Taper.

Do you have a Okamoto OKAMOTO to sell?

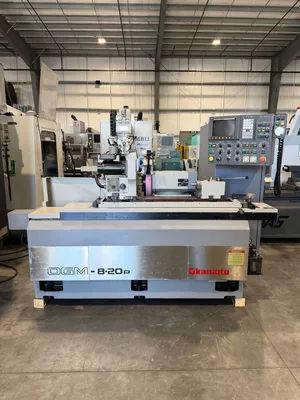

We are actively seeking a 1994 OKAMOTO OGM-8-20P Universal Cylindrical Grinder to enhance our inventory of high-quality used CNC machines. This model features a swing over the table of 8.66 inches and a distance between centers of 19.68 inches, making it an ideal choice for precision grinding tasks. With a maximum workpiece diameter of 7.87 inches and a weight capacity between centers of 44 lbs, this grinder is designed for versatility in various applications. The grinding wheel size of 12 inches by 1 inch with a 5-inch bore allows for efficient material removal, while the grinding wheel speeds of 1880, 2010, and 2210 RPM ensure optimal performance for different materials and grinding requirements.

The wheelhead offers an X-axis travel of 7.87 inches and a swivel angle of +/- 30°, allowing for precise adjustments and enhanced grinding capabilities. Additionally, the wheelhead's least travel increment of 0.00001 inches and continuous feed rate of 0.0001 inches to 157.48 inches per minute provide exceptional control over the grinding process. The table Z-axis travel measures 25.59 inches, with a swivel angle ranging from -4° to 9°, further adding to the machine's flexibility. The workhead spindle taper of #3 Morse Taper, along with a spindle speed range of 15 to 500 RPM, allows for a variety of setups and operations.

Tailstock features include a stroke of 0.78 inches and a taper of #3 Morse Taper, enhancing the machine's functionality. If you have a 1994 OKAMOTO OGM-8-20P Universal Cylindrical Grinder that you are looking to sell, we invite you to reach out to us. At Superior Machine Tools, we offer competitive prices and a seamless selling process for your used CNC machines.
