Direct procurement1989 Model

Sell your Okamoto 1632N today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

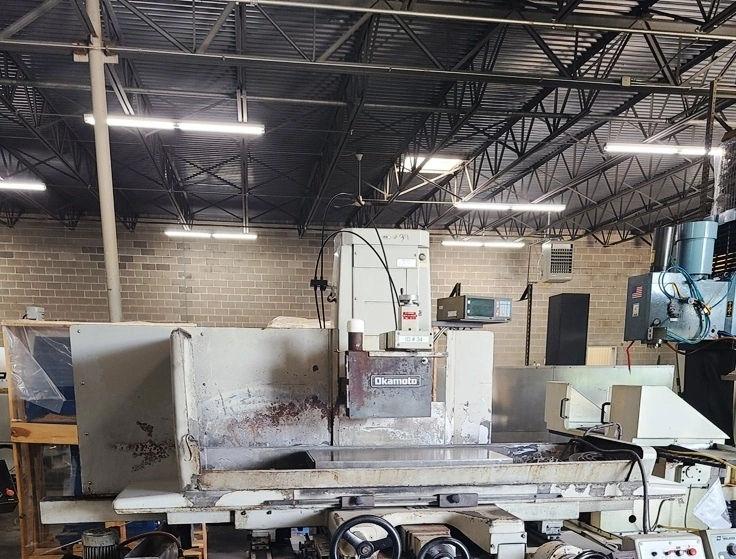

Make: Okamoto
Model: 1632N
Year: 1989
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okamoto 1632N Specifications

TABLE WIDTH: 15.7"
TABLE LENGTH: 37.4"
HORSEPOWER: 5 hp
GRINDING WHEEL WIDTH: 1.5"
GRINDING WHEEL DIAMETER: 14"
Dimensions: 96" x 80" x 88"
Weight: 7780 LBS
MAXIMUM GRINDING: 16" WIDE x 32" LONG
MAXIMUM VERTICAL CLEARANCE: 14" DIAMETER WHEEL
TABLE LOAD CAPACITY: 1,550 LBS
MAXIMUM TABLE TRAVEL (MANUAL): 17.3" x 37.4"
LONGITUDINAL MOVEMENT OF TABLE HYDRAULIC FEED: 10' to 83' PER MINUTE
CROSS MOVEMENT OF SADDLE HYDRAULIC INTERMITTENT FEED: 0.02" TO 0.8"
HYDRAULIC CONTINUOUS FEED: 8" TO 40" PER MINUTE
HAND FEED PER REVOLUTION: 0.25"
GRADUATION OF HANDWHEEL: 0.001"
VERTICAL MOVEMENT OF WHEELHEAD AUTOMATIC FEED PER TABLE STROKE: 0.0002" TO 0.0015"
AUTOMATIC FEED PER SADDLE REVERSAL: 0.0002 TO 0.0015"
HAND FEED PER REVOLUTION: 0.05"
MANUAL INCREMENTAL FEED: 0.0001" TO 0.0015"
GRADUATION OF HANDWHEEL: 0.0001"
RAPID FEED (50/60 Hz): 16"/19" PER MINUTE
GRINDING WHEEL DIAMETER (50/60 Hz): 14"/12"
GRINDING WHEEL BORE: 5"

Do you have a Okamoto 1632N to sell?

We are actively seeking a 1989 OKAMOTO 1632N Reciprocating Surface Grinder to add to our collection of high-quality used CNC machines. This particular model features a robust 5 hp motor, delivering exceptional performance for various grinding applications. With a maximum grinding capacity of 16 inches wide by 32 inches long, it is designed to handle substantial workloads, making it an asset for any machining shop. The table dimensions of 15.7 inches by 37.4 inches provide a stable working surface, while the machine's weight of 7,780 lbs ensures durability and stability during operation.

The OKAMOTO 1632N is equipped with a grinding wheel that measures 14 inches in diameter and 1.5 inches in width, allowing for efficient material removal and precision finishes. For enhanced accuracy, this grinder includes a SONY Two Axis Digital Read Out, which aids operators in achieving precise measurements and ensuring consistent results. The hydraulic feed system enables smooth longitudinal and cross movements, with adjustable speeds ranging from 10 to 83 feet per minute for longitudinal movement and 0.02 to 0.8 inches for cross movement. Additionally, the vertical movement of the wheelhead is facilitated by an automatic feed system, allowing for fine adjustments as required.

With a table load capacity of 1,550 lbs, the OKAMOTO 1632N is capable of handling heavy workpieces, further establishing its reputation as a reliable grinder in the industry. If you have an OKAMOTO 1632N or similar used CNC machine that you are looking to sell, we invite you to reach out to us. At Superior Machine Tools, we offer competitive prices and a seamless buying process. Contact us today to discuss your machine and receive a fair quote!
