Direct procurement2010 Model

Sell your Mazak QTN450IIM today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

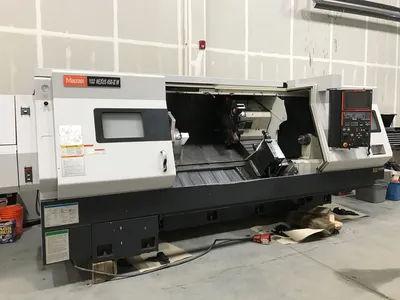

Make: Mazak
Model: QTN450IIM
Year: 2010
Category: CNC Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak QTN450IIM Specifications

# Of Spindle Speeds: 1
Spindle Speed: 2000 RPM
Max Cutting Diameter: 22.8''
Max Cutting Length: 80.6''
Spindle Taper: A2-15''
Spindle Power: 40 HP
Turret Positions: 12 POSITION
Turret Clamping Force: 11,700 LBS.
X - Axis Travel: 13.375''
Rapid Traverse Rate X: 1181 IPM
Rapid Traverse Rate Z: 1299 IPM
Tailstock Quill Diameter: 3.94''
Tailstock Center: MT # 5
Stroke Of Tail Body: 83.4''
Machine Weight: 26,417 LBS.
Rapid Traverse Rate C: 555 RPM
C - Axis Indexing: .001 Indexing
Other: Swing Over Bed: 29.5''
Swing Over Carriage: 22.8''
Spindle Bore Main: 7.2''
Spindle Torque: 1217 FT-LBS.
Rotary Tool Spindle Speeds: 2000 RPM
Rotary Tool Horsepower: 10 HP
Z - Axis Travel: 83.25'

Do you have a Mazak QTN450IIM to sell?

We are actively seeking a 2010 MAZAK QTN450IIM Big Bore Lathe. This impressive machine is designed for heavy-duty work, featuring a robust swing over bed of 29.5 inches and a swing over carriage of 22.8 inches. The maximum cutting diameter reaches 22.8 inches, with a cutting length of 80.6 inches, making it an excellent choice for shops that require precision and power. With a spindle nose of A2-15 and a substantial spindle bore main of 7.2 inches, this lathe is built to handle a variety of materials and complex tasks. The spindle speeds can reach up to 2000 RPM, delivering a spindle torque of 1217 FT-LBS, which ensures that the QTN450IIM can tackle even the most demanding machining applications.

Equipped with a rotary tool spindle that also operates at 2000 RPM and boasts a horsepower of 10 HP, this lathe enhances versatility, allowing for a range of operations beyond standard turning. The turret positions include 12 positions with a clamping force of 11,700 LBS, ensuring that tooling is securely held in place during operation. The X-axis travel of 13.375 inches and Z-axis travel of 83.25 inches provide ample workspace for larger projects, while the rapid traverse rates of 1181 IPM for the X-axis and 1299 IPM for the Z-axis contribute to efficient production times. Additionally, the tailstock features a quill diameter of 3.94 inches and a stroke of 83.4 inches, further enhancing the machine's functionality. With a total weight of 26,417 LBS, this lathe is a solid investment for any manufacturing facility.

Sellers often decide to part with their machines for various reasons, such as upgrading to newer models, downsizing operations, or even closing facilities altogether. If you find yourself in any of these situations, we are here to help. At Superior Machine Tools, we buy CNC machines like the MAZAK QTN450IIM nationwide. Don't hesitate to reach out to us if you're ready to sell your used CNC lathe. We are here to provide a seamless selling experience and ensure you receive a fair value for your machine.
