Direct procurement1994 Model

Sell your Mazak Multiplex today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

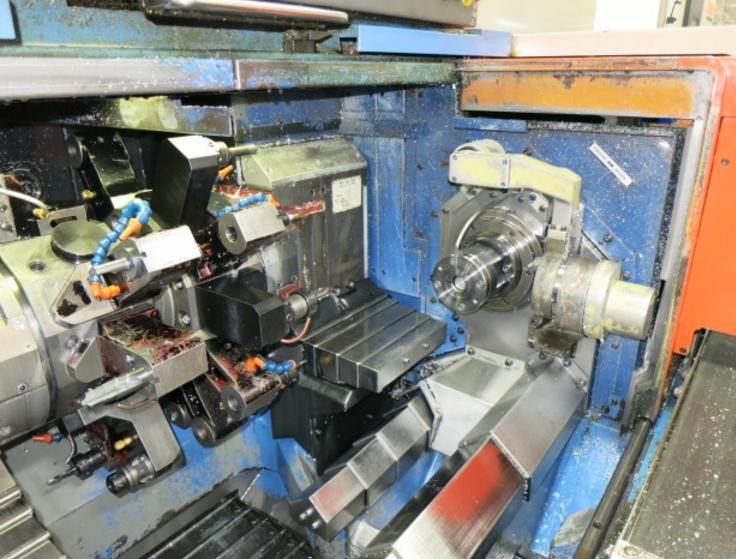

Make: Mazak
Model: Multiplex
Year: 1994
Category: CNC Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak Multiplex Specifications

Chuck Size: 6"
Max Bar Capacity: 1.65"
Spindle Horsepower (Cont./30 Min.): 10 HP
X1-Axis Travel: 7.87"
Z-Axis (Longitudinal Travel): 14.37"
Swing Over Bed: 13.8"
Spindle Speeds 1, 2: 35 - 5,000 RPM
Turret Positions: 2 Turrets with 12 Stations Each (Live)
Distance Between Spindle Faces (Max.): 40.55"
Maximum Machining Diameter: 9.06"
Spindle Bore Diameter: 2.05"
Spindle Indexing (C-Axis): C-Axis .001 Degree (Both)
Maximum Machining Length For Shaftwork: 15.7"
Coolant System: 62 Gal
Max Swing: 13.8"
Rated Capacity Distance Between Spindles: 40.55"
Max Machining Diameter Standard / Max: 9.06" / 13.8"
Max Machining length Chucking / Shaft: 15.7"
Max Bar Feed Diameter: 1.65"
Hole Thru Spindle: 2.05"
Max Spindle Speeds: 35 - 5,000 RPM
Spindle Indexing: C-Axis .001 Degree (Both)
Spindle Drive: 10 HP
Turret Stations: (2) Turrets with (12) Stations Each (Live)
Turret Live Milling Speeds: 3,000 RPM
Live Milling Drive Motor: 3 HP
Turret Travels X / Z: 7.87" x 14.37" Left and 16.54" Right Turret
Turret Rapid Traverse Rates X/ Z: 945 IPM
Coolant Capacity: 62 Gal

Do you have a Mazak Multiplex to sell?

We are actively seeking a 1994 Mazak Multiplex 610 Dual Spindle Live Milling CNC Turning Center. This machine is an exceptional asset for any manufacturing facility, boasting advanced features designed to enhance productivity and precision. With a maximum swing of 13.8 inches and a chuck size capacity of 6 inches, the Multiplex 610 is capable of handling a variety of machining tasks efficiently. The rated capacity distance between spindles stretches to 40.55 inches, providing ample space for complex operations. The maximum machining diameter reaches 9.06 inches, with a maximum machining length for chucking and shaft applications of 15.7 inches.

It accommodates a maximum bar feed diameter of 1.65 inches and features a hole through the spindle measuring 2.05 inches. The spindles are capable of impressive speeds, ranging from 35 to 5,000 RPM, allowing for versatile machining operations. Additionally, the C-axis spindle indexing at .001 degree ensures high precision in machining. This model is equipped with dual turrets, each featuring 12 live stations, and can achieve turret live milling speeds of 3,000 RPM. The turret travels in X and Z directions are 7.87 inches by 14.37 inches for the left turret and 16.54 inches for the right turret, combined with rapid traverse rates of 945 IPM, ensuring quick and efficient production cycles.

With a coolant capacity of 62 gallons, the Mazak Multiplex 610 is built for sustained operations. If you have a 1994 Mazak Multiplex 610 Dual Spindle Live Milling CNC Turning Center that you wish to sell, we invite you to reach out to us. Our team at Superior Machine Tools is ready to provide you with a competitive offer and a seamless selling experience.
