Direct procurement2011 Model

Sell your Mazak INT I200S/1000U today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

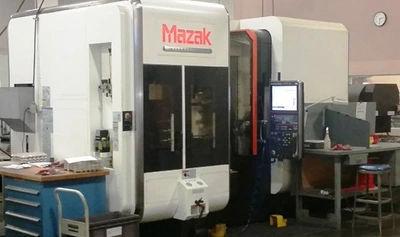

Make: Mazak
Model: INT I200S/1000U
Year: 2011
Category: CNC Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak INT I200S/1000U Specifications

# Spindle Speed: 5000 RPM
Spindle Nose: A2-6
Spindle Bore Main: 2.99"
Bar Capacity: 2.55"
C - Axis Travel Main Spindle: .0001 Degree
X - Axis Travel: 24.21"
Z - Axis Travel: 42.4"
B - Axis Travel: 240 Degrees (-30, +210)
Y - Axis Travel: 9.84"
W - Axis Tailstock Travel: 41.97"
Rapid Traverse Rates X, Z, W, Y: 1969, 1969, 1181, 1575 IPM
Rapid Traverse Rate B, C: 40, 555 RPM
Rotary Tools Spindle Nose: CAPTO STYLE
Tool Magazine Capacity: 36 ATC
Rotary Tool Spindle Speeds: 12,000 RPM
Rotary Tool Motor: 30 HP
Max Tool Length: 15.75''
Max Tool Dia. / Adjacent: 3.54''/4.92''
Maximum Tool Weight: 26.5 LBS.
Main Spindle Output: 30 HP
Second Spindle Nose: A2-6
Second Spindle Bore: 2.99"
Second Spindle Speed: 5000 RPM
Second Spindle Indexing: .001 Degree Programmable
Second Spindle Output: 25 HP
Machine Weight: 28,880 Lbs.

Do you have a Mazak INT I200S/1000U to sell?

We are actively seeking a 2011 MAZAK INT I200S/1000U Live Tooling Lathe. This exceptional CNC lathe is designed to meet the demanding needs of today's machining environments, offering remarkable capabilities that can enhance production efficiency. With a swing over bed of 25.9 inches and a maximum machining diameter of 25.9 inches, this model is well-equipped to handle various materials and complex parts. The cutting length of 39.8 inches allows for the production of longer components, making it a versatile choice for different applications. One of the standout features of the MAZAK INT I200S/1000U is its impressive spindle speed of 5000 RPM, which ensures that you can achieve high precision and quality in your machining processes.

The spindle nose is an A2-6 type with a bore of 2.99 inches, accommodating a bar capacity of 2.55 inches. This machine also boasts advanced C-axis travel with a resolution of .0001 degrees, along with X-axis travel of 24.21 inches and Z-axis travel of 42.4 inches, providing you with the flexibility required for complex machining tasks. Additionally, the B-axis travel of 240 degrees (-30 to +210) and Y-axis travel of 9.84 inches enhance the machine's versatility, while the W-axis tailstock travel of 41.97 inches adds to its functionality. Rapid traverse rates of 1969 IPM for X, Z, and W axes, and 1575 IPM for the Y-axis, ensure quick positioning, thereby reducing cycle times. With a tool magazine capacity of 36 ATC and rotary tool spindle speeds reaching 12,000 RPM powered by a robust 30 HP motor, this lathe is capable of handling a variety of tooling needs, making it suitable for industries like aerospace and manufacturing.

The main spindle output of 30 HP and a second spindle output of 25 HP further enhance its productivity. Sellers often part with machines like the MAZAK INT I200S/1000U due to upgrades, downsizing, or even plant closures. We understand the reasons behind these decisions and are here to support you through the process. If you're considering selling your CNC machine, reach out to us today to learn more about how we can assist you.
