Direct procurement1981 Model

Sell your Landis Machine Co 6 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

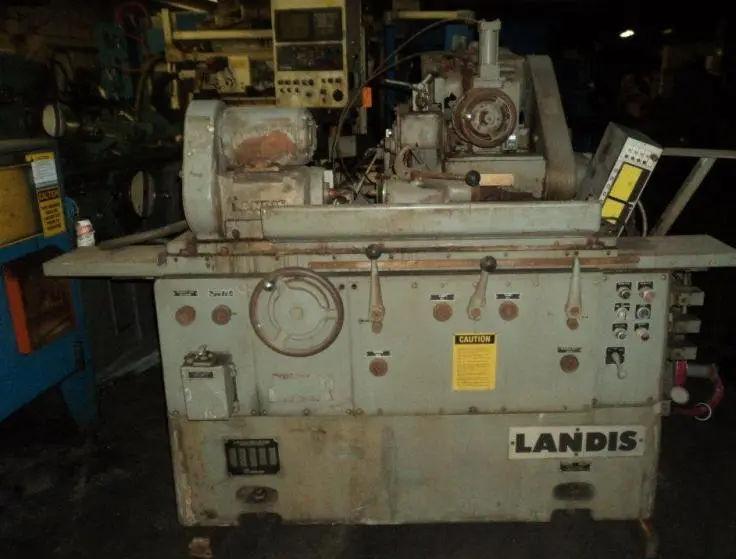

Make: Landis Machine Co
Model: 6
Year: 1981
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Landis Machine Co 6 Specifications

Size Capacity: 6 x 18
Weight: 6,000.00
Nominal work swing: 6
Nominal distances between work centers: 18
Maximum diameter work standard machine will grind with full size standard wheel: 6 7/8
Minimum diameter wheel to grind zero diameter work on centers: 10 1/2
Floor space required: 106 x 50
Coolant tank capacity - gallons: 19
Hydraulic tank capacity - gallons: 9 1/4
Height from floor to work center line: 39 3/4
Carriage traverse per turn of hand wheel: 0.200
Swivel table graduated - inches per foot: 4
Degrees included angle: 20
Head stock work center: #10 Jarno
Foot stock work center: #6 Jarno
Head stock swivel range: 60, 90, 150
Work speeds - RPM: 225, 400, 600
Head stock spindle nose: 5 A2
Grinding wheel size - (standard): 16 x 3 x 5
Grinding wheel - maximum width: 3
Grinding wheel spindle speeds - RPM: 1725
Grinding wheel, minimum diameter of worn wheel: 9 1/2
Maximum distance wheel center line to work center line for machines with hand wheel feed: 11 1/2
Minimum distance wheel center line to work center-line with foot stock removed: 3 1/2
Work diameter reduction per revolution of wheel feed Hand wheel: 0.100
Work diameter reduction per revolution of fine knob: 0.001
Minimum feed graduations - on diameter: 0.000050
Maximum hydraulic in feed on diameter for hydraulic in feed machines: 0.090
Rapid in feed stroke for hydraulic in feed machines: 1
Wheel drive motor: 3 HP 1755 RPM
Work drive motor: 1/4 HP
Wheel spindle lubrication motor: 1/4 HP
Hydraulic pump motor for machines with hydraulic traverse: 1 HP
Machine with hand traverse and hydraulic in feed: 6,000

Do you have a Landis Machine Co 6 to sell?

We are actively seeking a 1981 Landis 6 x 18 1R CNC Grinding Machine to purchase. This cylindrical grinder is known for its robust construction and reliable performance. With a nominal work swing of 6 inches and a distance of 18 inches between work centers, it provides the precision needed for various grinding tasks. The machine features a maximum grinding diameter of 6 7/8 inches, making it versatile for different projects. It operates with a standard grinding wheel size of 16 x 3 x 5 inches and can achieve spindle speeds of 1725 RPM, ensuring efficient grinding operations.

The Landis 6 x 18 1R is designed with user-friendly features, including a swivel table graduated in inches per foot and a headstock swivel range of 60 to 150 degrees. The hydraulic tank capacity is 9 1/4 gallons, allowing for effective lubrication and cooling during operations. With a floor space requirement of 106 x 50 inches, this machine fits well in various workshop layouts. Its weight of 6,000 pounds reflects its sturdy build, ensuring stability during grinding processes. This model is equipped with a powerful 3 HP wheel drive motor, which provides the necessary torque for heavy-duty grinding tasks.

The work drive motor, rated at 1/4 HP, and the hydraulic pump motor, also at 1 HP, enhance the machine's overall functionality. The ability to adjust the work diameter reduction with fine knobs and hand wheels offers precise control over the grinding process. If you have a Landis 6 x 18 1R CNC Grinding Machine that you are looking to sell, we would love to hear from you. Contact us today to discuss your machine and receive a competitive offer!
