Direct procurement1978 Model

Sell your Landis Machine Co 6 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

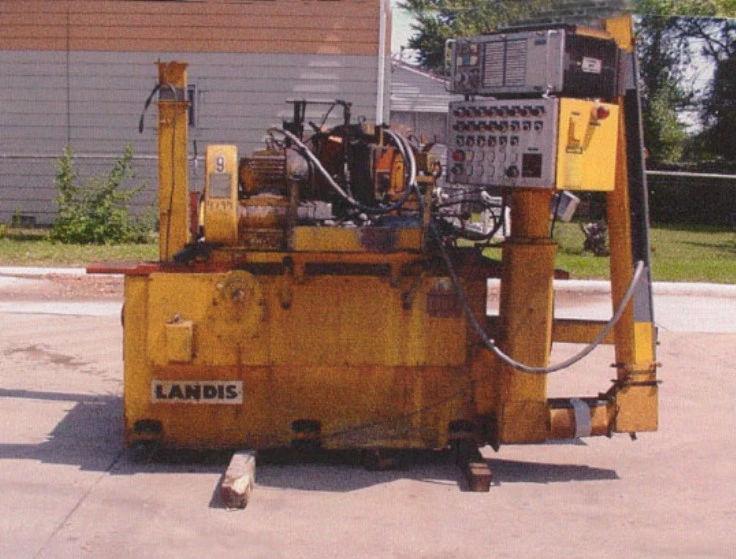

Make: Landis Machine Co
Model: 6
Year: 1978
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Landis Machine Co 6 Specifications

Size Capacity: 6 x 18
Nominal work swings: 6
Maximum work swing over table: 6 31/32
Nominal distances between centers: 18
Maximum work swing diameter: 6-2H.I.
Minimum diameter wheel to grind zero dia. work on centers: 15
Coolant pump capacity: 28 gallons
Hydraulic tank capacity: 19 gallons
Traverse speed per turn of hand wheel Slow: 0.100
Traverse speed per turn of hand wheel Fast: 1.000
Grinding wheel size-standard: 4x24x12
Grinding wheel spindle speeds,RPM: 1000/1271
Grinding wheel minimum dia. of worn wheel: 15
Hydraulic rapid in feed - Standard maximum: 2
Hydraulic rapid in feed - Standard minimum: 1/2
Hydraulic rapid in feed - Angle Wheel head machine Maximum: 2
Hydraulic rapid in feed - Angle Wheel head machine Minimum: 1/2
Wheel drive motor -H.P: 10 HP - 1775RPM
Work drive motor -H.P: 1/2 HP - 900RPM
Wheel spindle lubrication motor H.P: 2

Do you have a Landis Machine Co 6 to sell?

We are actively seeking a 1978 Landis 6 x 18 2R cylindrical grinder. This reliable machine is renowned for its ability to handle precision grinding tasks, making it a valuable asset in any workshop. With a nominal work swing of 6 inches and a maximum work swing over the table of 6 31/32 inches, it is well-suited for a variety of grinding applications. The grinder features a nominal distance between centers of 18 inches, allowing for efficient processing of larger workpieces.

Its grinding wheel size is standard at 4 x 24 x 12 inches, with spindle speeds ranging from 1000 to 1271 RPM, ensuring optimal performance for your grinding needs. Equipped with a dead center work head and a manual tailstock, this Landis model also incorporates a behind wheel Tru-Form dresser, which enhances its functionality for precision grinding. The coolant pump has a capacity of 28 gallons, providing effective cooling during operation, while the hydraulic tank can hold up to 19 gallons, ensuring smooth hydraulic operations. The traverse speed per turn of the hand wheel is adjustable, with slow speeds at 0.100 and fast speeds at 1.000, allowing for fine-tuning based on your specific requirements.

The machine is powered by a 10 HP wheel drive motor operating at 1775 RPM, complemented by a 1/2 HP work drive motor at 900 RPM and a 2 HP wheel spindle lubrication motor. The hydraulic rapid in feed capabilities range from a maximum of 2 to a minimum of 1/2, providing flexibility in operation. If you have a 1978 Landis 6 x 18 2R cylindrical grinder that you are looking to sell, reach out to us today for a competitive offer. We buy your used CNC machines in any condition, providing a hassle-free selling experience.
