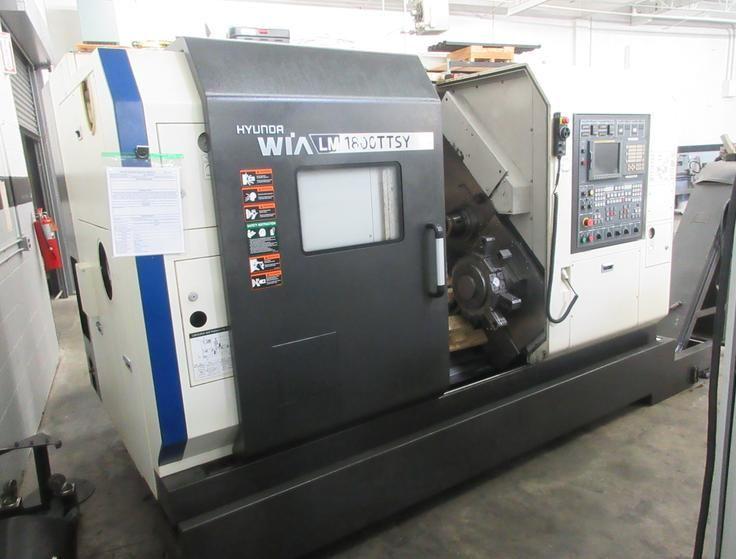

Hyundai WIA LM1800TTSY Specifications
| CNC Control | Fanuc 18i-TB |
|---|---|
| Main Spindle Chuck Size | Royal Quick Grip Pullback Chuck, A2-6 Mount, QG-65 Collet (8" Standard Chuck Capacity) |
| SubSpindle Chuck Size | Royal Quick Grip Accu-Length Chuck, A2-6 Mount, QG-65 Collet (8" Standard Chuck Capacity) |
| Main Spindle Max Turn Diameter | 9" (230mm) |
| SubSpindle Max Turn Diameter | 9" (230mm) |
| Max Turning Length | 26.49" (673mm) |
| Max Bar Capacity | 2.56" |
| Main Spindle Speeds | 5000 RPM |
| Main Spindle Drive | 30 HP / 15 HP Continuous |
| Main Spindle Orientation | Full C-Axis |
| Sub Spindle Speed | 5000 RPM |
| Sub Spindle Drive | 30 HP / 15 HP Continuous |
| SubSpindle Orientation | Full C-Axis |
| Sub Spindle Travel | 26.3" |
| Turret 1 Capacity | 12 Stations (12 Live Capable) |
| Turret 2 Capacity | 12 Stations (12 Live Capable) |
| Main Spindle Nose | A2-6 |
| Turret 1 Travels X/Z | (Upper) 6.5" / 27.6" / +/- 3.93" |
| Turret 2 Travels X/Z | (Lower) 6.5" / 27.6" |
| Live Tool Speeds | 5000 Max RPM |
| Live Tool Drive Motor | 7.5 HP |
| Rapid Traverse Rate (X1/X2/Z1/Z2/Y/ZB) | 787 IPM X1 X2, 1575 IPM Z1 Z2, 295 IPM Y, 1575 IPM ZB. |
Do you have a Hyundai WIA LM1800TTSY to sell?
We are actively seeking a 2012 Hyundai Wia LM1800TTSY CNC Multi-Axis Turning Center for purchase. This advanced machine is equipped with both main and sub spindles, providing versatility and efficiency for complex machining tasks. The CNC control is powered by a reliable Fanuc 18i-TB, ensuring precise operation and ease of use. With a main spindle chuck size of 8" and a sub spindle chuck size that matches, both featuring Royal Quick Grip technology, this machine is designed for high-performance turning.
The LM1800TTSY boasts impressive specifications, including a maximum turning diameter of 9" (230mm) and a maximum turning length of 26.49" (673mm). It handles bar capacities up to 2.56", making it suitable for a variety of applications. Both spindles can achieve speeds of up to 5000 RPM, powered by robust 30 HP / 15 HP continuous drives, and feature full C-axis orientation for intricate part geometries. This turning center also includes dual turrets, each with a capacity of 12 stations, and both capable of live tooling, allowing for dynamic machining operations.
The rapid traverse rates are impressive, reaching up to 787 IPM for X1/X2 and 1575 IPM for Z1/Z2, making it efficient in production runs. Additionally, the live tool speeds reach a maximum of 5000 RPM, driven by a 7.5 HP motor, enhancing operational flexibility. If you have a 2012 Hyundai Wia LM1800TTSY CNC Multi-Axis Turning Center that you are looking to sell, we offer competitive pricing and a hassle-free selling experience. Contact us today to get a quote and take the first step towards selling your used CNC machine.
