Direct procurement2011 Model

Sell your Doosan V550ML today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

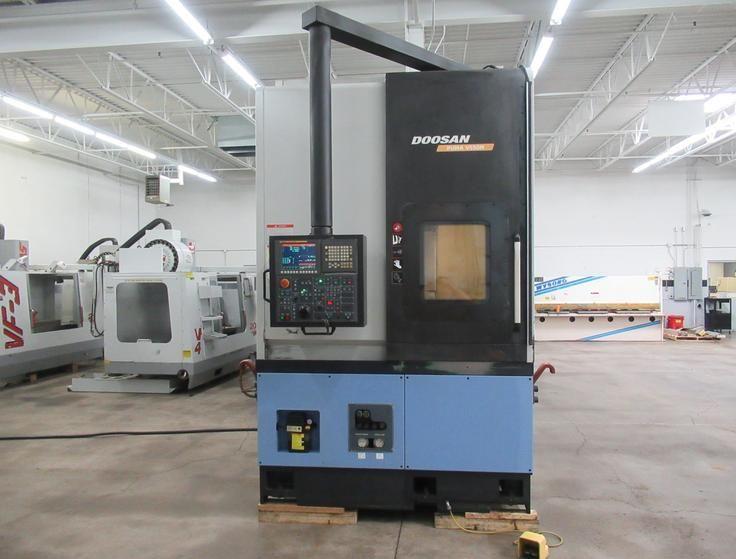

Make: Doosan
Model: V550ML
Year: 2011
Category: CNC Vertical Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan V550ML Specifications

Turning Dia.: 19.68"
Maximum Swing: 30.7"
Max Turning Length: 24.20"
Spindle Height Surface From Floor: 41.73"
Chuck Size: 20"
Hole Through Spindle: 4.33"
Spindle Speeds: 20 - 2,000 RPM
Spindle Torque: 509 Ft-Lbs.
Max Spindle Orientation: C-Axis, (.001 Degree)
C-Axis Max Speed: 55.5 RPM
Turret Travels (X/Z): 14.57" x 24.02"
Rapid Traverse (X/Z): 787 IPM
Turret Capacity: 12 Stations (Live Milling Capable)
Turret Index Time: .7 Second 1 Tool / 1.08 Sec 6 Tools
Max Number of Live Tools: 12
Live Tool Max Speed: 3,000 RPM
Rotary Tool Drive: 7.5 HP
Main Spindle Drive: 50 / 40 HP.

Do you have a Doosan V550ML to sell?

We are actively seeking a 2011 Doosan Puma V550ML, a remarkable CNC Vertical Turning Center with Live Milling capabilities. This machine is designed to enhance productivity and precision in your machining operations. With a maximum swing of 30.7 inches and a turning diameter of 19.68 inches, the Puma V550ML can handle a variety of workpieces efficiently. Its impressive maximum turning length of 24.20 inches allows for versatility in production, making it ideal for both small and large components.

The Doosan Puma V550ML is equipped with a 20-inch chuck size and a hole through spindle measuring 4.33 inches, ensuring that it can accommodate a wide range of materials. The spindle speeds range from 20 to 2,000 RPM, providing the flexibility needed for various machining tasks, while the spindle torque of 509 ft-lbs guarantees robust performance. The machine also features a C-axis with maximum spindle orientation accuracy of 0.001 degrees and a C-axis max speed of 55.5 RPM, making it suitable for complex machining processes. With turret travels of 14.57 inches in the X-axis and 24.02 inches in the Z-axis, along with a rapid traverse rate of 787 IPM, the Doosan Puma V550ML ensures quick and efficient machining cycles.

The turret has a capacity of 12 stations, and its index time of just 0.7 seconds for one tool and 1.08 seconds for six tools significantly reduces downtime. Additionally, the machine supports up to 12 live tools, with maximum speeds reaching 3,000 RPM, which enhances its milling capabilities. If you are looking to sell your 2011 Doosan Puma V550ML, we would love to hear from you. Contact us today to discuss a fair price for your machine!
