Direct procurement2007 Model

Sell your Citizen M32 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

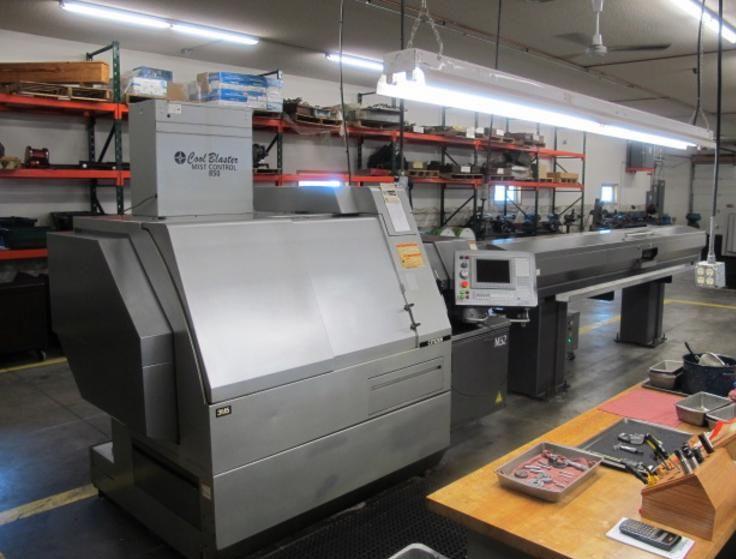

Make: Citizen
Model: M32
Year: 2007
Category: CNC Swiss-Type Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Citizen M32 Specifications

Maximum Machining Diameter: 32mm
Maximum Machining Length: 320mm
Main Spindle Speeds: 8,000 Max RPM
Main Spindle Indexing: Full C-Axis (.001 Degree)
Back Spindle Speeds: 8,000 Max RPM
Sub-Spindle Indexing: Full C-Axis (.001 Degree)
Rotary Tool Speeds: 6,000 Max RPM on Gang Slide and Turret
Back Spindle Max Chucking Diameter: 32mm
Turret Stations: 10 Stations Live Capable
Turret Axes: X2, Z2, and Y2
Turning Tools: 5 Static Stations on Gang Slide
Rotary (Live) Tools: 4 on Main Slide / Up to 10 On Turret
Front Endworking Tools: 3
Back Endworking Tools: 3
Cutting Tool Shank/Sleeve Size: 5/8"
Rapid Traverse (X/Y/Z): 32m / min All Axes Except on Y Turret Axis
Main Spindle Drive: 7.5 / 3.7 KW
Back Spindle Drive: 3.7 / 2.2 KW
Rotary Tool Drive: 1.5KW
Other: Turret / 1.0 KW Main Slide

Do you have a Citizen M32 to sell?

We are actively seeking a 2007 Citizen M32 CNC Automatic Swiss Screw Machine. This exceptional piece of equipment is designed to deliver precision and efficiency in your machining operations. With a maximum machining diameter of 32mm and a machining length of up to 320mm, this Swiss-type lathe is ideal for various applications, particularly in the production of intricate components. The Citizen M32 boasts a main spindle that can reach speeds of up to 8,000 RPM, ensuring that you can achieve high production rates while maintaining excellent surface finishes. Its full C-axis indexing capability, with precision to .001 degree, allows for intricate part geometries that are essential in today's competitive manufacturing landscape.

Additionally, this machine features a back spindle that also operates at 8,000 RPM, providing versatility and efficiency in machining operations. The turret is equipped with 10 live-capable stations, along with X2, Z2, and Y2 axes, which enhance the machine's ability to perform complex tasks with ease. The rotary tool speeds can reach 6,000 RPM on both the gang slide and turret, further expanding the machining capabilities. With a total of 5 static turning tool stations on the gang slide and up to 10 rotary (live) tools on the turret, this machine is designed for maximum productivity. The Citizen M32 also includes robust back endworking capabilities, featuring three tools for both front and back end operations.

Its rapid traverse rates of 32m/min across all axes, except for the Y turret axis, ensure that your machining processes are completed swiftly. If you are looking to sell your used Citizen M32, we invite you to reach out to us at Superior Machine Tools. We provide competitive offers and a seamless selling experience.
