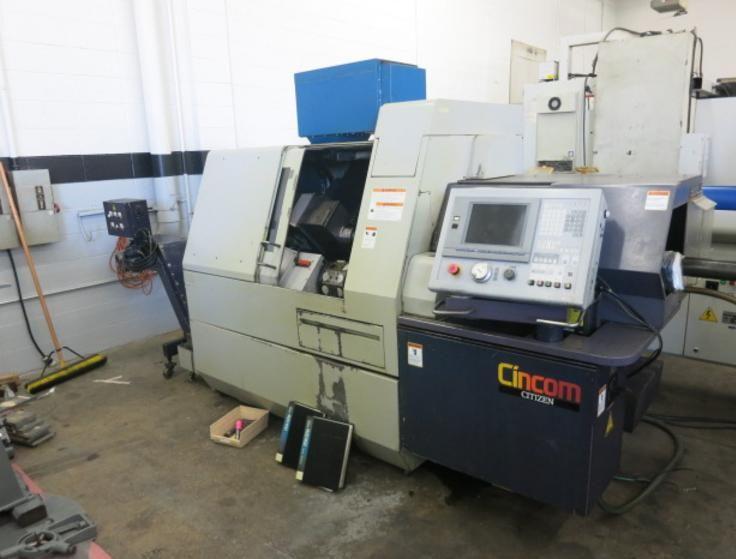

Make: Citizen
Model: M32
Year: 2000
Category: CNC Swiss-Type Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Citizen M32 Specifications

Maximum Machining Diameter: 32mm
Maximum Machining Length: 320mm
Main Spindle Speeds: 8000 Max RPM
Main Spindle Indexing: Full C Axis
Back Spindle Speeds: 7,000 Max RPM
Sub-Spindle Indexing: Full C Axis
Rotary Tool Speeds: 5,000 Max RPM
Back Spindle Max Chucking Diameter: 32mm
Turning Tools: 5 Static On Main Slide
Rotary (Live) Tools: 4 Live on Main Slide
Front Endworking Tools: 10 Turret Stations (Live Capable)
Back Endworking Tools: 3 Static On Block Plus 10 Turret Stations
Rapid Traverse (X/Y/Z): 32m / min All Axes Except Y Turret Axis
Main Spindle Drive: 7.5 / 3.7 KW
Back Spindle Drive: 3.7 / 2.2 KW
Rotary Tool Drive: 1.5 KW
Other: Turret / 1.0 KW Main Slide

Do you have a Citizen M32 to sell?

We are actively seeking a 2000 Citizen M32 CNC Swiss Screw Machine. This high-performance Swiss-type lathe is renowned for its precision and versatility in machining. With a maximum machining diameter of 32mm and a machining length of 320mm, the Citizen M32 is perfectly engineered for a variety of complex parts manufacturing. The main spindle operates at speeds up to 8000 RPM, while the back spindle can reach 7000 RPM, ensuring efficient production times. One of the standout features of the M32 is its full C-axis indexing capability on both the main and back spindles, allowing for intricate milling operations.

The machine is equipped with a 12-station turret that is live capable, alongside 4 live tool holders on the main slide, enhancing its functionality for various applications. The rotary tool speeds can reach up to 5000 RPM, providing further versatility in machining operations. In terms of tooling, the Citizen M32 supports 5 static turning tools on the main slide and an impressive array of 10 turret stations for front endworking, with an additional 3 static tools on the back end, plus another 10 turret stations. This setup significantly optimizes workflow and productivity. The rapid traverse rate is an impressive 32 meters per minute across all axes except for the Y turret axis, allowing for swift repositioning and setup.

The robust main spindle drive has a power rating of 7.5/3.7 KW, complemented by a back spindle drive of 3.7/2.2 KW and a rotary tool drive of 1.5 KW, ensuring that the machine can handle demanding tasks with ease. If you own a 2000 Citizen M32 CNC Swiss Screw Machine and are looking to sell, we invite you to reach out to us. Our team at Superior Machine Tools is ready to help you get the best possible value for your equipment. Contact us today to discuss your machine and receive a competitive offer.
