Direct procurement2008 Model

Sell your Citizen A20 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

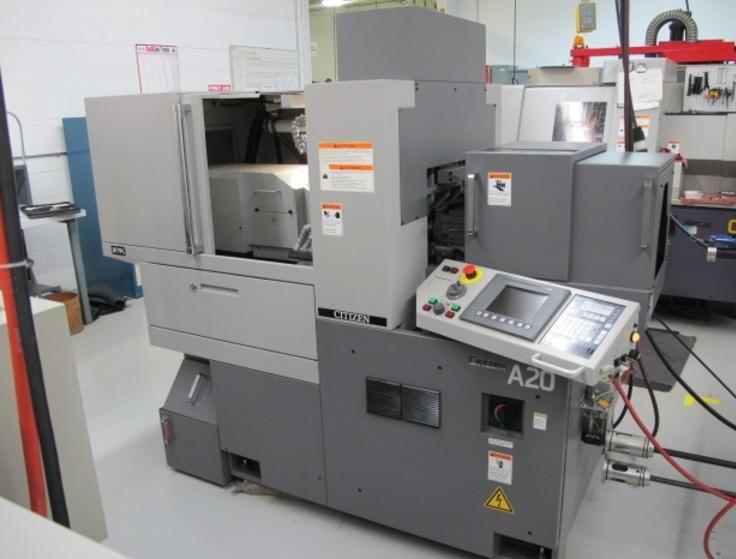

Make: Citizen
Model: A20
CNC Control: Cincom CNC Control (Simultaneous 5-Axis)
Year: 2008
Category: CNC Swiss-Type Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Citizen A20 Specifications

Control: Cincom CNC Control (Simultaneous 5-Axis)
Maximum Machining Diameter: 20mm
Maximum Machining Length: 165mm / 1 Chucking
Main Spindle Speeds: 100 - 8,000 RPM
Main Spindle Indexing: Full C-Axis (.001 Degree)
Back Spindle Speeds: 100 - 8,000 RPM
Sub-Spindle Indexing: Full C-Axis (.001 Degree)
Rotary Tool Speeds: 6,000 Max RPM (Recomended 4,500 Max Operating)
Back Spindle Max Chucking Diameter: 20mm
Turning Tools: 5 Static on Main Slide
Rotary (Live) Tools: 4 Live On Main Slide
Front Endworking Tools: 4 Static
Back Endworking Tools: 8 Static on 2 Blocks
Cutting Tool Shank/Sleeve Size: 1/2" Square Shank, 1" Diameter Sleeves
Rapid Traverse (X/Y/Z): 32m / min X2, Y1, Z1, Z2 & 18 m/min on X1
Main Spindle Drive: 5 HP / 3 HP
Back Spindle Drive: 2 HP
Rotary Tool Drive: 1 HP.

Do you have a Citizen A20 to sell?

We are actively seeking a 2008 Citizen A20 Type VII CNC Swiss Screw Machine to purchase. This advanced machine, equipped with Cincom CNC Control, offers simultaneous 5-axis capabilities that can significantly enhance your production efficiency. With a maximum machining diameter of 20mm and a machining length of 165mm, this model is designed for precision and versatility in machining operations. The Citizen A20 boasts impressive spindle speeds ranging from 100 to 8,000 RPM for both the main and back spindles, ensuring that it can handle a variety of materials and complex geometries with ease.

The full C-axis indexing at .001-degree increments allows for intricate part designs and high-tolerance machining, making it an essential tool for any shop looking to maximize productivity. Equipped with multiple turning tools, including 5 static tools on the main slide and 4 live rotary tools, as well as 4 static front endworking tools and 8 static back endworking tools, the A20 provides flexibility and efficiency in tool usage. The rapid traverse rates of 32m/min for X2 and Y1 axes ensure swift movement and reduced cycle times, which can lead to increased output. With a robust main spindle drive of 5 HP and a back spindle drive of 2 HP, this machine is built to perform under demanding conditions.

The rotary tool drive at 1 HP is designed for optimal performance at recommended operating speeds of up to 4,500 RPM. If you have a Citizen A20 Type VII CNC Swiss Screw Machine that you are looking to sell, we invite you to contact us. Superior Machine Tools offers competitive prices and a seamless selling process, ensuring that you get the best value for your used CNC machinery.
