Direct procurement1990 Model

Sell your Chevalier FSG-818M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

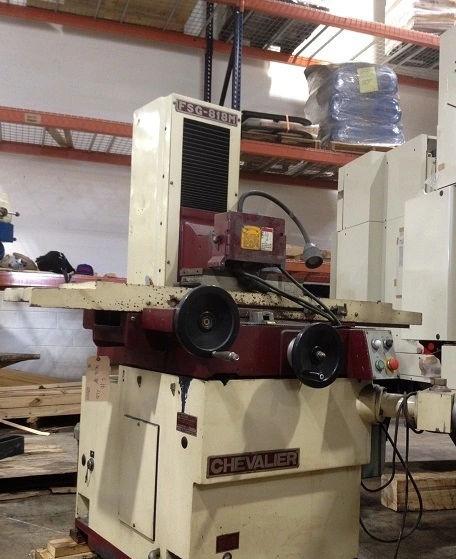

Make: Chevalier
Model: FSG-818M
Year: 1990
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Chevalier FSG-818M Specifications

Table-W: 6"
Table-L: 18"
Horz/Vert: Horz
Horz size: 6" x 18"
Grinding length (maximum): 18"
Grinding width (maximum): 6"
Longitudinal table travel (max.): 19"
Crossfeed table travel (max.): 7"
Distance spindle center to table center (maximum): 18"
Downfeed handwheel--per graduation: .0001"
Downfeed handwheel--per revolution: .05"
Crossfeed handwheel-per graduation: .0005"
Crossfeed handwheel-per revolution: .100"
Grinding wheel dimensions--diameter: 8"
Grinding wheel dimensions--width: 1/2" or 1"
Grinding wheel dimensions--hole size: 1-1/4"
Spindle motor (3450 rpm): 1 HP
Electrics: 220/440/3/60
Machine weight: 1,490 lbs

Do you have a Chevalier FSG-818M to sell?

We are actively seeking a 1990 Chevalier FSG-818M Reciprocating Surface Grinder to add to our inventory of high-quality used CNC machines. This model is renowned for its precision and reliability, making it a sought-after choice for many machining applications. With a maximum grinding length of 18 inches and a grinding width of 6 inches, the FSG-818M is equipped to handle a variety of tasks with ease. The machine features a robust horizontal design that ensures stability during operation, while the longitudinal table travel reaches up to 19 inches and the crossfeed table travel allows for a maximum of 7 inches.

This versatility makes it ideal for both small and large-scale projects. The FSG-818M is powered by a 1 HP spindle motor operating at 3450 RPM, providing the necessary power to achieve excellent grinding results. The grinding wheel dimensions are also noteworthy, featuring a diameter of 8 inches and a width option of either 1/2 inch or 1 inch, with a center hole size of 1-1/4 inches. Additionally, the machine's downfeed handwheel allows for precise adjustments, with graduations as fine as .0001 inches, ensuring that you can achieve the desired finish on your workpieces.

With a weight of 1,490 lbs, this machine is built to last and withstand rigorous use in various industrial settings. If you have a 1990 Chevalier FSG-818M that you are looking to sell, we would love to hear from you. At Superior Machine Tools, we offer competitive prices and a straightforward selling process. Contact us today to discuss your machine and get a quote!
