Direct procurement1995 Model

Sell your Chevalier FSG-1224AD today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Chevalier
Model: FSG-1224AD
Year: 1995
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Chevalier FSG-1224AD Specifications

TABLE SIZE: 11-3/4" X 25-3/8"
MAX. GRINDING CAPACITY: 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC: 25-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL: 27-1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC: 12"
MAX. CROSSFEED TRAVEL, MANUAL: 13-3/4"
DIST. FROM SPINDLE CENTER TO TABLE: 19-3/4"
VARIABLE TABLE SPEED, HYDRAULIC: 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT: 1/8" TO 1-1/4"
CROSSFEED HANDWHEEL, PER GRADUATION: 0.0025"
PER REVOLUTION: 0.25"
MICROFEED, PER REVOLUTION: 0.0005"
PER GRADUATION: 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED: 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION: 0.0005"
PER REVOLUTION: 0.05"
MICROFEED: 0.00005"/.0001"
RAPID TRAVERSE RATE: 8" IPM
SPINDLE MOTOR: 5 HP
STANDARD GRINDING WHEEL: 14"DIA. X 2"W X 5"B
APPROX. WEIGHT: 4,850 LBS
APPROX. DIMENSIONS: 98" X 68" X 88"H

Do you have a Chevalier FSG-1224AD to sell?

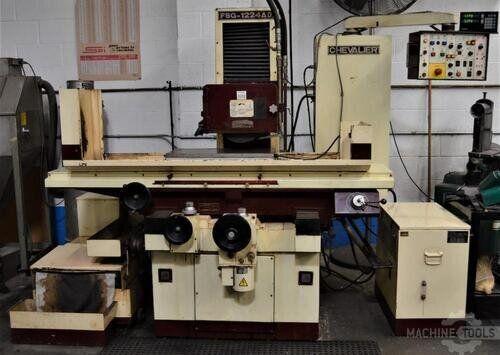

We are actively seeking a 1995 Chevalier FSG-1224AD, a highly regarded reciprocating surface grinder known for its reliability and precision. This machine features a table size of 11-3/4" x 25-3/8" and boasts a maximum grinding capacity of 12" x 24". With both hydraulic and manual longitudinal table travel options, the FSG-1224AD provides a maximum travel of 25-5/8" hydraulically and 27-1/2" manually, making it versatile for various grinding applications. The grinder's automatic crossfeed travel reaches up to 12" while manual travel extends to 13-3/4", providing flexibility in operations.

The distance from the spindle center to the table is an impressive 19-3/4", ensuring ample space for larger workpieces. With a variable table speed ranging from 16 to 82 feet per minute, operators can achieve optimal grinding results tailored to their specific needs. The automatic incremental downfeed feature allows for adjustments from 0.00005" to 0.002", complemented by a microfeed capability that enables precision down to 0.00005". The machine is powered by a robust 5 HP spindle motor and comes equipped with a standard grinding wheel of 14" diameter, 2" width, and 5" bore, ensuring high performance in material removal.

Weighing approximately 4,850 lbs and measuring 98" x 68" x 88" in dimensions, the Chevalier FSG-1224AD is a solid investment for any shop looking to enhance its grinding capabilities. If you are looking to sell your used Chevalier FSG-1224AD, contact Superior Machine Tools today for a competitive offer and quick transaction!
