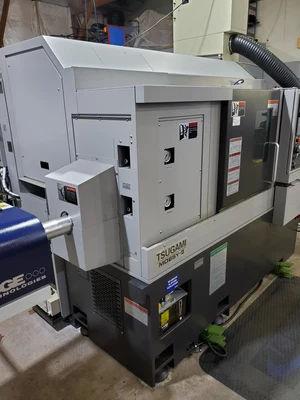

Direct procurement2020 Model

Sell your Tsugami MO8SY today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Tsugami
Model: MO8SY
Year: 2020
Category: CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Tsugami MO8SY Specifications

Swing Over Bed: 0
Turning Diameter: 11.02"
Turning Length: 14.96"
Distance Between Spindles: 19.92"
Chuck Size 1: 8"
Chuck Size 2: 6"
Spindle Nose 1: A2 - 6
Spindle Nose 2: 140 FLAT
Spindle Bore Diameter 1: 2.87"
Spindle Bore Diameter 2: 2"
Bar Capacity 1: 2.5"
Bar Capacity 2: 2"
Spindle Speeds 1: 4500 RPM
Spindle Speeds 2: 4500 RPM
Spindle Horsepower 1: 15 HP
Spindle Horsepower 2: 10 HP
X - Axis Travel X1: 8.7"
X - Axis Travel X2: 8.7"
X - Axis Travel X3: 8.7"
Z - Axis Travel Z1: 15.75"
Z - Axis Travel Z2: 15.75"
Z - Axis Travel Z3: 15.75"
Y - Axis Travel Y1: 3.94"
Y - Axis Travel Y2: 3.94"
Y - Axis Travel Y3: 3.94"
C - Axis Indexing 1: .001 Degrees
C - Axis Indexing 2: .001 Degrees
W - Axis Travel Sub Spindle: 19.92"
Rapid Traverse Rates X1: 945 IPM
Rapid Traverse Rates X2: 945 IPM
Rapid Traverse Rates X3: 945 IPM
Rapid Traverse Rates Y1: 472 IPM
Rapid Traverse Rates Y2: 472 IPM
Rapid Traverse Rates Y3: 472 IPM
Rapid Traverse Rates Z1: 1062 IPM
Rapid Traverse Rates Z2: 1062 IPM
Rapid Traverse Rates Z3: 1062 IPM
Turret Tool Positions 1: 12
Turret Tool Positions 2: 12
Turret Tool Positions 3: 12
Turret Rotary Tool Speeds 1: 5,000 RPM
Turret Rotary Tool Speeds 2: 5,000 RPM
Turret Rotary Tool Speeds 3: 5,000 RPM
Turret Rotary Tool Horse Power 1: 5 HP
Turret Rotary Tool Horse Power 2: 5 HP
Turret Rotary Tool Horse Power 3: 5 HP
Machine Weight: 13,007 LBS.

Do you have a Tsugami MO8SY to sell?

We are actively seeking a 2020 TSUGAMI MO8SY Multi-Axis Lathe to enhance our inventory of high-quality used CNC machines. This machine is a remarkable piece of engineering, ideal for precision manufacturing. With a turning diameter of 11.02 inches and a turning length of 14.96 inches, it delivers the versatility needed for complex machining tasks. The MO8SY features a robust design with a swing over bed that accommodates various workpieces, making it suitable for a wide range of applications. The distance between spindles is an impressive 19.92 inches, allowing for efficient multi-tasking.

Equipped with an 8-inch and a 6-inch chuck size, this machine ensures reliable gripping of materials. The A2-6 spindle nose enhances its adaptability, while the spindle bore diameter of 2.87 inches contributes to its capability in handling larger components. With spindle speeds reaching up to 4500 RPM and a horsepower rating of 15 HP for the main spindle, this lathe is engineered for high efficiency and productivity. The X, Y, and Z-axis travels are expansive, with travels of 8.7 inches in X, 3.94 inches in Y, and 15.75 inches in Z, allowing for intricate and detailed operations. The C-axis indexing at .001 degrees provides exceptional precision, while the rapid traverse rates of up to 1062 IPM ensure swift movement and reduced cycle times.

Additionally, with 12 turret tool positions and rotary tool speeds of 5,000 RPM, this machine can handle multiple tool changes seamlessly. Weighing in at 13,007 lbs, the TSUGAMI MO8SY is a robust choice for any machining environment. If you are looking to sell your 2020 TSUGAMI MO8SY Multi-Axis Lathe, contact us today for a competitive offer and a hassle-free selling experience.
