Direct procurement2003 Model

Sell your Okuma SIMUL-TURN-LU300M-2SC600 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

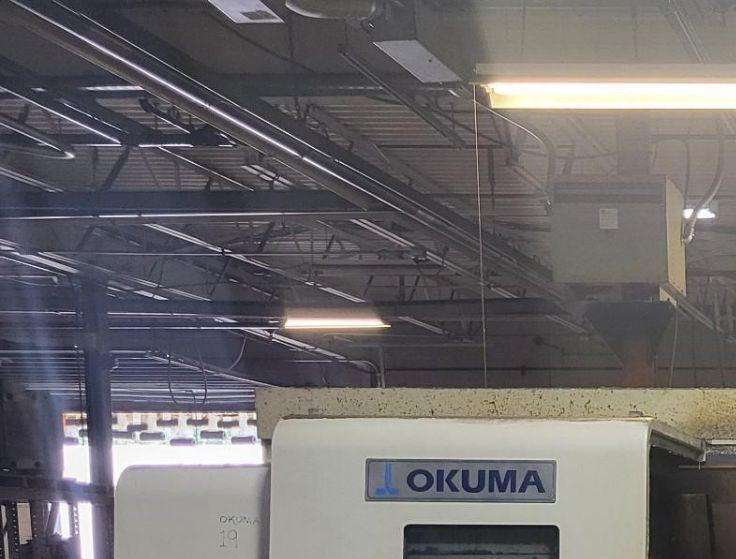

Make: Okuma
Model: SIMUL-TURN-LU300M-2SC600
Year: 2003
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okuma SIMUL-TURN-LU300M-2SC600 Specifications

# Axis: 4
Chuck Size: 10"
Power: 30 HP
Max RPM: 3,800 RPM
Turning Dia: 14.567"
Live Tooling: Yes
Dimensions: 116" x 80" x 79" High
Weight: 15,000 lbs
Spindle Diameter: 4.72"
Through Spindle Hole: 3.14"
Carriage Z Axis Travel: 25.20" Upper, 24.21" Lower
Z Axis Feed Rate: 0.001-1,000.0 mm/rev, 0.00001-39.37ipr
Z Axis Rapid Feed Rate: 25,000mm/min (984.25ipm)
Cross Slide X Axis Travel: 10.24" Upper, 5.51" Lower
X Feed Rate: 0.001-1,000.0 mm/rev, 0.00001-39.37ipr
X Rapid Feed Rate: 20,000mm/min (787.25ipm)
No. Tools: 20
Tool Size OD Turning: 25 x 25 (1")
Tool Size ID Turning: 40 (1 ½")
Rotary Tool Spindle Speed: 45-4,500 RPM
C Axis Control Angle: 360 (0.001")
C Axis Rapid Traverse: 200 IPM
Tail Stock Spindle Dia.: 3.54"
Tail Stock Spindle Travel: 4.72"
Spindle HP: 20/30-20 Min/Cont.
Carriage Feed Z Axis HP: 5.3 Upper & Lower
Cross Slide X Axis HP: 4 Upper, 2.7 Lower
Hydraulic Pump HP: 3
Machine Height: 79.13"
Floor Space: 116" x 80"
Bar Feed: Spego 512-20.5
Chuck: 10" 3 Jaw
Additional Equipment: Enomoto Chip Conveyor, Coolant Tank & Pump, Parts Catcher, Assorted Tooling Live Tooling, Collets, Live Center, RS-232-C Port, Foot Pedals (3), Books & Diagrams
Power Supply: Wired 240/3/60

Do you have a Okuma SIMUL-TURN-LU300M-2SC600 to sell?

We are actively seeking a 2003 Okuma SIMUL-TURN-LU300M-2SC600 Live Tooling Lathe. This versatile CNC lathe is designed to meet the demands of modern manufacturing with its advanced features and robust specifications. With a swing of 20.866 inches and a machining length of 23.622 inches, this machine is capable of handling a variety of machining tasks. It boasts a 10-inch chuck and a maximum turning diameter of 14.567 inches, providing the capacity needed for larger workpieces. The lathe is powered by a 30 hp spindle, which can reach an impressive 3,800 RPM, ensuring efficient and precise machining operations.

Equipped with live tooling capabilities, the Okuma SIMUL-TURN-LU300M-2SC600 allows for greater versatility, enabling shops to perform milling operations alongside traditional turning. This feature is particularly beneficial for manufacturers looking to streamline their processes and reduce setup times. The CNC control, specifically the OPS-E1000L, offers intuitive operation and programming flexibility, making it easier for operators to adapt to various production requirements. In addition to its impressive specifications, this lathe includes a tailstock, which enhances workpiece support during machining. The machine's turret type features a V12 upper and V8 lower configuration, accommodating up to 20 tools, which facilitates quick tool changes and efficient production runs.

The rapid feed rates of 25,000 mm/min on the Z axis and 20,000 mm/min on the X axis further optimize productivity. Sellers often part with machines like the Okuma SIMUL-TURN-LU300M-2SC600 for various reasons, including upgrading to newer models, downsizing operations, or even closing facilities. Our goal is to make the selling process as smooth as possible for you. If you have a 2003 Okuma SIMUL-TURN-LU300M-2SC600 or similar equipment, don't hesitate to reach out. We would love to discuss how we can assist you in selling your machine quickly and efficiently.
