Sell your Okuma LU-300M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

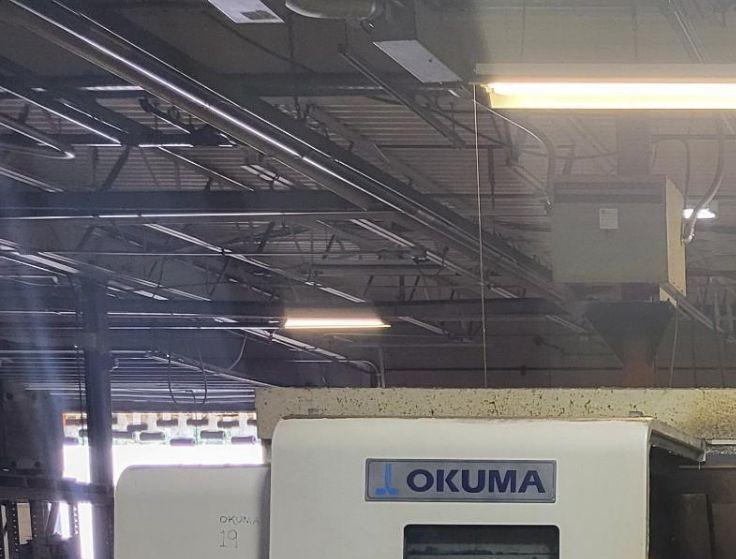

Make: Okuma
Model: LU-300M
Year: 2007
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okuma LU-300M Specifications

# Of Spindle Speeds: 1
Spindle Speed Range: 75-5000 RPM
Spindle Horsepower: 30 HP
Max Swing Over Slant Bed: 20.87"
Max Turning Diameter: 14.57"
Max Machinable Center Distance: 23.62"
Cross Travel (X-Axis) Upper Slide Above Center: 10.23"
Lower Slide Below Center: 5.51"
Longitudinal Travel (Z-Axis) Upper Slide: 25.2"
Lower Slide: 24.21"
C-Axis Indexing: 0.001 Deg
Rapid Traverse Rate X-Axis: 787 IPM
Rapid Traverse Rate Z-Axis: 984 IPM
Rapid Traverse Rate C-Axis: 200 RPM
Spindle Bore: 2.44"
Approximate Machine Dimensions (Main Machine): 126" x 86"
Approximate Machine Height: 76"
Approximate Machine Weight (Main Machine): 16,050 LBS
Other: Okuma OSP P200 CNC Control w/Color CRT, Live Tooling, C-Axis, Auto Door, Chuck Air Blow, Tailstock Air Blow, MAC MAN, 8" 3-Jaw Hydraulic Chuck, Tailstock, Upper and Lower Simultaneous Tool Turrets, Chip Conveyor and Coolant System.

Do you have a Okuma LU-300M to sell?

We are actively seeking a 2007 Okuma LU-300M Live Tooling Lathe. This high-performance machine is equipped with the Okuma OSP P200 CNC Control featuring a color CRT, making it a valuable asset for any machining operation. The LU-300M offers live tooling capabilities that enhance versatility and efficiency, allowing for complex machining tasks to be performed with ease. With a C-axis for indexing at .001 degrees, this model provides precision that shops in the aerospace, manufacturing, and job shop industries can rely on. The LU-300M boasts a maximum swing over the slant bed of 20.87 inches and a turning diameter of 14.57 inches, making it suitable for a variety of workpieces.

It has an impressive maximum machinable center distance of 23.62 inches, which allows for larger parts to be accommodated. The cross travel capabilities include an upper slide above the center of 10.23 inches and a lower slide below the center measuring 5.51 inches, providing flexibility in machining operations. Longitudinal travel is equally generous, with the upper slide reaching 25.2 inches and the lower slide 24.21 inches. This model features rapid traverse rates of 787 IPM in the X-axis and 984 IPM in the Z-axis, ensuring that your production cycle times are minimized. The C-axis rapid traverse rate of 200 RPM allows for quick positioning, enhancing efficiency further.

With a spindle bore of 2.44 inches and a spindle speed range from 75 to 5000 RPM, the LU-300M is designed to handle a wide variety of materials and machining tasks. It delivers a robust 30 HP, ensuring that it can tackle even the most demanding jobs. Many sellers decide to part with machines like the Okuma LU-300M due to reasons such as upgrading to newer models, downsizing operations, or closing facilities. We take care of all logistics, ensuring a seamless transaction process. If you're ready to sell your 2007 Okuma LU-300M or any other CNC machine, don't hesitate to reach out to us today!
