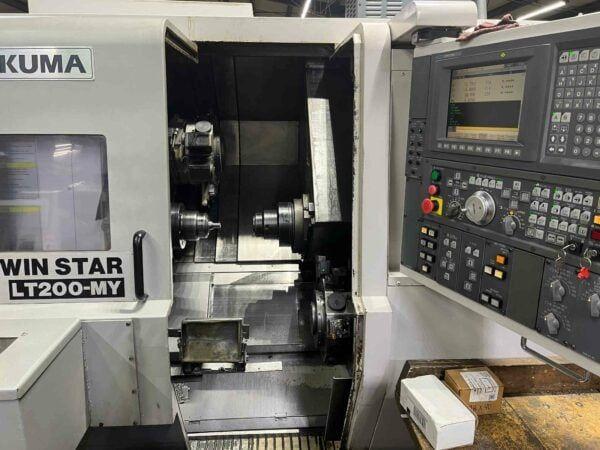

Okuma LT-200 MY (2005)
Direct procurement2005 Model

Sell your Okuma LT-200 MY today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make
Okuma
Model
LT-200 MY
Year
2005
Category
CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition
Used / Surplus
Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okuma LT-200 MY Specifications

# Of Spindle Speeds
2
Spindle Speed
45 - 4,500 RPM
Spindle Bore
2.44"
Bar Capacity
2"
Spindle Nose
A2-6
Main Motor (30 Min / Continuous)
15 / 10 HP
Turret Stations
12 Tools Each
X-Axis Travel (Turret One / Turret Two)
7.56" / 7.56"
Z-Axis Travel (Turret One / Turret Two)
27.561" / 27.561"
Y-Axis Travel (Turret One)
+/- 3.62"
B-Axis Travel (Sub-Spindle)
28.74"
Rotary Tool Speed
50 - 6,000 RPM
Rotary Tool Motor (Turret One / Turret Two)
5.4 HP
Rapid Traverse X / Z / Y
1,181 / 1,574 / 1,024
Sub Spindle Rapid Traverse
1,574 IPM
Approx Dimensions Lxwxh
105" x 88" x 88"
Approx Machine Weight
16,000LBs
Other
ATS Collet Chuck on Main & Sub Standard Tool Holders
Other
Auto Touchsetter
Other
Barfeed Interface
Other
Parts Catcher
Other
User Task II
Other
Parts Ejector
Other
Synchronous Tapping
Other
Helical Cutting
Other
Thermal Compensation
Other
Lap 4
Other
Nose Radius Compensation
Other
Auto Chamfering
Other
3D Animation
Other
Spindle Orientation
Other
Torque Limiter
Other
Tool Life Management
Other
Tool Wear Compensation.

Do you have a Okuma LT-200 MY to sell?

We are actively seeking a 2005 Okuma LT-200 MY Live Tooling Lathe. This CNC lathe is known for its precision and reliability, making it a valuable asset for any machining operation. With a swing over the cross slide of 15.75 inches and a maximum cutting diameter of 8.27 inches, this model is designed to handle a variety of machining tasks efficiently. The maximum turning length of 21.26 inches and a distance between spindles of 37.80 inches further enhance its versatility, allowing for complex components to be machined with ease. The Okuma LT-200 MY features a main spindle that operates at speeds ranging from 45 to 4,500 RPM, providing the power needed for a range of materials.

Its spindle bore measures 2.44 inches, with a bar capacity of up to 2 inches, making it suitable for both small and large workpieces. The turret configuration includes 12 live tool positions on both turret one and turret two, allowing for a total of 24 tools to be utilized in production. The X-axis travel of 7.56 inches and Z-axis travel of 27.561 inches, along with a Y-axis travel of +/- 3.62 inches, ensure that operators can achieve precise cuts and finishes. Additionally, the B-axis travel for the sub-spindle is 28.74 inches, further expanding the capabilities of this lathe. Equipped with advanced features such as a rotary tool speed of 50 to 6,000 RPM and a rotary tool motor of 5.4 HP, the LT-200 MY allows for high-speed machining and complex operations.

Rapid traverse rates of 1,181 IPM in the X-axis, 1,574 IPM in the Z-axis, and 1,024 IPM in the Y-axis contribute to efficient production cycles. The machine's robust construction, weighing approximately 16,000 pounds, ensures stability during operation. Sellers often consider parting with machines like the Okuma LT-200 MY due to reasons such as upgrading to newer technology, downsizing operations, or closing facilities. Regardless of your reason, we understand the challenges involved in selling machinery and are here to facilitate a smooth process. If you own a 2005 Okuma LT-200 MY or a similar machine, don't hesitate to reach out to us for a fair and straightforward selling experience.
