Direct procurement2003 Model

Sell your Okuma CAPTAIN-L470M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

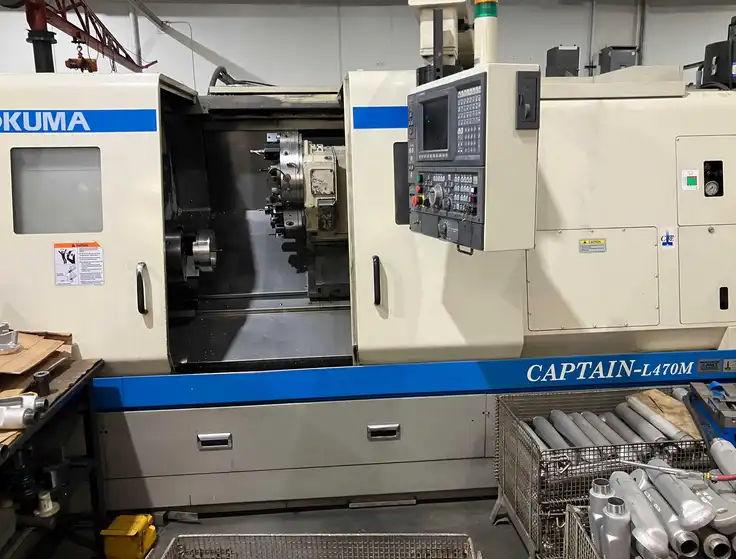

Make: Okuma
Model: CAPTAIN-L470M
Year: 2003
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okuma CAPTAIN-L470M Specifications

# Swing: 24.4"
Machining Length: 26"
Chuck Size: 12"
Bar Capacity: 4"
Power: 30 HP
Max RPM: 3,000 RPM
Turning Dia: 16.53"
Tailstock: Yes
Swing Over Bed: 24.41"
Swing Over Saddle: 16.54"
Max. Turning Length: 49.2"
Spindle Nose: A2-11"
Bore Diameter: 4.33"
Range Of Spindle Speed: 15-3000 RPM
Longitudinal Travel (Z-Axis): 51.57"
Cross-Slide Travel(X-Axis): 11.81"
Rapid Traverse Speeds Z-Axis: 984 IPM
Rapid Traverse Speeds X-Axis: 787 IPM
Type And No Of Tool Stations: Vert 12
C-Axis: .001
Rotary Tool Spindle Speed: 45-3000
Rotary Tool Horse Power: 7.5 HP
Main Spindle Drive Motor: 30 HP
Diameter Of Quill: 3.54"
Quill Stroke: 4.72"
Quill Center: MT #5
Weight: 14,800 Lbs.

Do you have a Okuma CAPTAIN-L470M to sell?

We are actively seeking a 2003 Okuma CAPTAIN-L470M Big Bore Lathe. This impressive CNC lathe, with a swing over bed of 24.41 inches and a swing over saddle of 16.54 inches, is designed for precision and efficiency in various machining applications. Equipped with a 12-inch 3-jaw hydraulic chuck and a bore diameter of 4.33 inches, it offers remarkable versatility for turning and milling operations. The CAPTAIN-L470M features a maximum turning length of 49.2 inches, allowing for the machining of substantial workpieces with ease.

This model boasts a powerful main spindle drive motor rated at 30 HP, which supports a spindle speed range of 15 to 3000 RPM. Such capabilities enable operators to tackle a wide range of materials and projects, making it a valuable asset for any shop. The longitudinal travel on the Z-axis reaches up to 51.57 inches, while the cross-slide travel on the X-axis extends to 11.81 inches, ensuring that you can handle various machining tasks efficiently. Additionally, rapid traverse speeds of 984 IPM on the Z-axis and 787 IPM on the X-axis enhance productivity.

The CAPTAIN-L470M also includes a robust C-axis with a resolution of .001, and a rotary tool spindle speed ranging from 45 to 3000 RPM, driven by a 7.5 HP motor. With a total weight of 14,800 lbs, this machine is built to last, and it comes with all manuals and available tool holders, ensuring that you have everything you need for a seamless operation. Sellers often part with machines like the Okuma CAPTAIN-L470M due to various reasons such as upgrading to newer models, downsizing operations, or even closing facilities altogether. If you own a 2003 Okuma CAPTAIN-L470M or similar CNC lathe and are considering selling, reach out to us today to discuss how we can assist you in this process.
