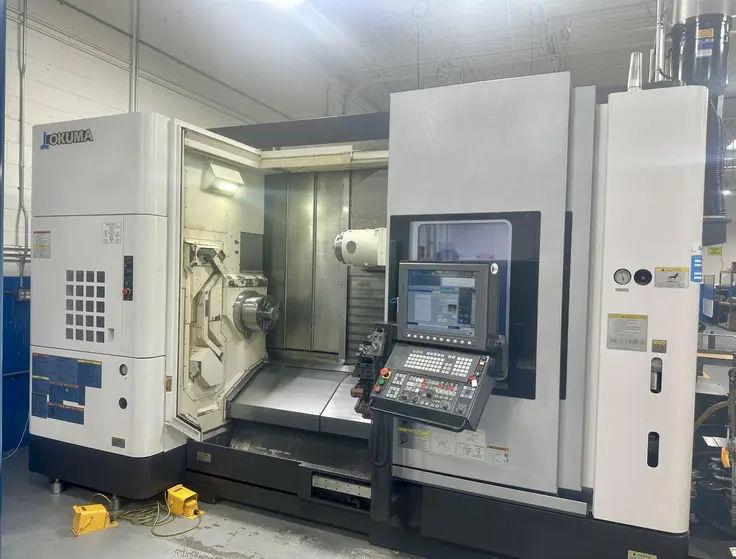

Okuma MULTUS-U4000SB/SB-2SW/1500 2019 (2019)

Direct procurement2019 Model

Sell your Okuma MULTUS-U4000SB/SB-2SW/1500 2019 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Okuma
Model: MULTUS-U4000SB/SB-2SW/1500 2019
Year: 2019
Category: CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Okuma MULTUS-U4000SB/SB-2SW/1500 2019 Specifications

# Axis: 5
2nd Spindle Chuck: 10" 3-Jaw
2nd Spindle HP: 30
2nd Spindle RPM: 3,800
A Axis Travel: 360°
A Axis Rapid Traverse: Not Provided
Axis X: 27.36"
Axis Y: ± 5.91"
Axis Z: 62.99"
B Axis Travel: -30° to 210°
B Axis Milling Spindle Speed: Not Provided
C Axis Travel: 360° (.001°)
Maximum Cutting Diameter: 25.59"
Maximum Cutting Length: Not Provided
Maximum Tool Diameter: Not Provided
Maximum Tool Length: Not Provided
Tool Change Time: Not Provided
Weight Capacity: Not Provided
Workpiece Weight Capacity: 1,760 lb
Workpiece Size: Not Provided
Spindle Speed Range: Not Provided
Spindle Motor Power: 30 hp
Tool Storage Capacity: 40
Rapid Traverse Rate: Not Provided
Feed Rate: Not Provided
Cutting Speed: Not Provided
Number of Tools: Not Provided
Chip Removal System: Not Provided
Coolant System: Not Provided
Drive System Type: Not Provided
Control System Type: Not Provided
Software Compatibility: Not Provided
Other: Main Spindle Chuck Size: 12" 3-Jaw
Main Spindle Nose: A2-11
Main Spindle Thru Hole: 4"
Sub-Spindle Chuck Size: 10" 3-Jaw
Sub-Spindle Nose: A2-8
Max Spindle Speed: 4,200 RPM
Max Sub-Spindle Speed: 3,800 RPM
ATC Magazine Capacity: CAPTO C6
12 Position Lower Turret: 12
Approximate Dimensions: 180" x 130" x 125"
Approximate Machine Weight: 39,600 LBS
Machine Cutting Hours: 464
Electrics: 220/480/3/60
Air Requirements: Not Provided
Accuracy and Precision: Not Provided
Axes: Not Provided
Axis Rapid Rates: Not Provided
Axis Travels: Not Provided
B Axis Coupling: Not Provided
B Axis Head Indexing: Not Provided
B Axis Spindle Speeds: Not Provided
ATC Capacity: Not Provided
Automatic Tool Changer Capacity: Not Provided
Tool Holder Type: Not Provided
Parts Conveyor: Not Provided
Maximum Swing Over Bed: 29.59"
Maximum Swing Between Centers: 93"
Y-Axis Feed Rate: Not Provided
Z2-Axis Lower Turret Head Longitudinal Travel Feed Rates: 1,968 in/min.
X-Axis Feed Rate: 27.4 in/min.
Z-Axis Feed Rate: 1,968 in/min.
X-Axis Rapid Traverse Rate: 1,968 in/min.
Z-Axis Rapid Traverse Rate: 82.7 in/min.
X2-Axis Lower Turret Head Cross Travel Rapid Traverse Rate: 980 in/min.
Z2-Axis Lower Turret Head Longitudinal Rapid Traverse Rate: 1,574 in/min.

Do you have a Okuma MULTUS-U4000SB/SB-2SW/1500 2019 to sell?

We are actively seeking a 2019 Okuma Multus-U4000SB/SB-2SW/1500 CNC Multi-Tasking Machine. This advanced mill-turn machine is designed to handle complex machining tasks with precision and efficiency. Equipped with a robust OSP-P300SA CNC control system, this model offers exceptional versatility, allowing shops to perform both turning and milling operations seamlessly. With a main spindle chuck size of 12 inches and a sub-spindle chuck size of 10 inches, it provides the capability to handle various workpieces. The B-axis milling head reaches an impressive RPM of 12,000, ensuring high-speed cutting for intricate designs.

The tool changer capacity of 40 and lower turret tool capacity of 12 further enhance its productivity, making it an ideal choice for busy manufacturing environments. The Multus-U4000SB/SB-2SW/1500 boasts a main spindle power of 30 HP, with a maximum speed of 4,200 RPM, while the sub-spindle also maintains a power of 30 HP with a maximum speed of 3,800 RPM. The machine's generous X-axis travel of 27.36 inches and Z-axis travel of 62.99 inches, along with a Y-axis travel of ± 5.91 inches, allows for substantial movement and flexibility when working on large parts. Notably, it has a maximum swing over bed of 29.59 inches and a maximum turning diameter of 25.59 inches, accommodating a variety of workpiece sizes. With a maximum part weight capacity of 1,760 pounds and a maximum swing between centers of 93 inches, this machine is built to handle demanding projects with ease.

Sellers often part with machines like the Okuma Multus-U4000SB/SB-2SW/1500 for various reasons, including upgrading to newer technology, downsizing their operations, or closing facilities altogether. It's understandable that as the industry evolves, businesses must adapt, and we are here to help facilitate that transition smoothly. At Superior Machine Tools, we buy CNC machines nationwide, ensuring a hassle-free process for you. If you have an Okuma Multus-U4000SB/SB-2SW/1500 or a similar model to sell, contact us today and let us help you get the best value for your equipment.
