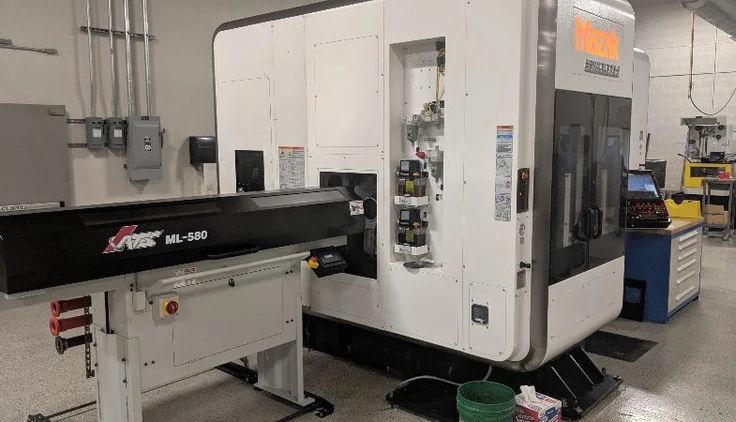

Mazak INTEGREX i 200SW Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 2.99" |
| 2nd Spindle Chuck | Collet |
| 2nd Spindle HP | 20/25 |
| 2nd Spindle RPM | 5,000 RPM |
| 5 Axis Machining | Yes |
| Approximate Dimensions | 110.24" x 157.1" |
| Approximate Machine Height | 107.1" |
| Approximate Machine Weight | 28,880 LBS |
| ATC Magazine Capacity | 110 |
| Axis X | 24.21" |
| Axis Y | 9.84" |
| Axis Z | 42.4" |
| B Axis Head Indexing | 0° |
| B Axis Milling Spindle Speed | 12,000 RPM |
| B Axis Travel | -30 DEG. TO +210 DEG. |
| Chip Conveyor | Yes |
| Control Type | CNC (MAZATROL SMOOTH X) |
| Main Spindle Bore/Max Bar Capacity | 4.65/4.0 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Horsepower (CONT. /30 MINS) | 20/30 |
| Main Spindle Speed | 5,000 RPM |
| Maximum Cutting Diameter | 25.9" |
| Maximum Cutting Length | 39.8" |
| Maximum Swing | 25.9" |
| Maximum Swing Over Cross Slide | 25.9" |
| Parts Catcher | Yes |
| Rapid Traverse Rate | X & Z-Axis 1969 IPM |
| Sub Spindle/2nd Spindle Bore Size | 2.99" |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20/25 |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Tool Change Time | 1.3 SEC. |
| Tool Holder Type | CAPTO |
| Tool Positions | 110 |
| Weight Capacity | 28,880 LBS |
| Workpiece Weight Capacity | 28,880 LBS |
| Y-Axis Travel (Y1, Y2, Y3) | 9.84" |
| Other | Bar Feed |
| Other | High Pressure Coolant System (PSI): 213 |
| Other | Maximum Tool Diameter: 4.92" |
| Other | Maximum Tool Length: 15.75" |
| Other | Software Compatibility: EIA, HIGH SMOOTHING CONTROL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O, HIGH SPEED, SHAPE COMP., THREAD VARIABLE, CYLINDER & POLAR CO-OR INT., EIA PATTERN CYCLE, TILTED WORK PLANE, SEAMLESS CORNER CONTROL, SUPER HIGH SPEED, AUTOMATIC OPERATION ISS. |
Do you have a Mazak INTEGREX i 200SW to sell?
We are actively seeking a 2018 MAZAK INTEGREX i 200SW CNC multi-tasking machine. This impressive machine is designed for both milling and turning, making it a versatile addition to any manufacturing setup. With a maximum swing of 25.9 inches and a maximum cutting length of 39.8 inches, it allows for a wide range of machining tasks with precision and ease. The main spindle boasts a bore diameter of 4.65 inches and can handle bar work up to 4 inches, providing the capacity needed for various applications. Equipped with a hydraulic chuck of 8 inches, the INTEGREX i 200SW operates at spindle speeds of up to 5,000 RPM, ensuring that you can tackle even the most demanding jobs.
Additionally, the machine features a sub-spindle with a speed of 5,000 RPM and a bore size of 2.99 inches, allowing for increased productivity through synchronized operations. The advanced MAZATROL SMOOTH X control system enhances usability and efficiency, making programming straightforward and intuitive. The tool magazine has a capacity of 110 tools, which facilitates quick tool changes and minimizes downtime. With a maximum tool diameter of 3.54 inches when all pockets are full, and a maximum tool length of 15.75 inches, you can expect a high degree of flexibility in your machining processes. The machine also features high-pressure coolant capabilities, ensuring optimal performance and tool life.
