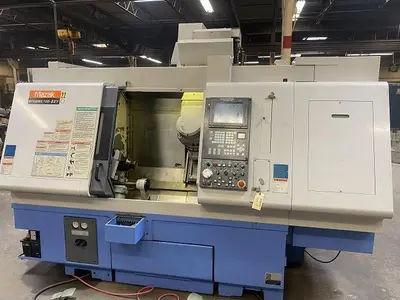

Mazak INTEGREX 100SY (2005)
Direct procurement2005 Model

Sell your Mazak INTEGREX 100SY today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make
Mazak
Model
INTEGREX 100SY
Year
2005
Category
CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition
Used / Surplus
Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak INTEGREX 100SY Specifications

# Axis
5
2nd Spindle HP
15
2nd Spindle RPM
6,000
B Axis Travel
+/- 225 DEG
C Axis Travel
.001 DEG
Axis X
14.17"
Axis Z
30.87"
Axis Y
2.36"
Main Spindle Horsepower
15 HP
Main Spindle Speed Range
5,000 RPM
Sub-Spindle Speed Range
6,000 RPM
Axis Rapid Rates
1,181 IPM
Axis Travels
X: 14.17", Z: 30.87", Y: 2.36"
B Axis Coupling
A2-5
Maximum Cutting Diameter
18.5"
Maximum Cutting Length
29.72"
Tool Holder Type
ATS Collet Chuck
Tool Change Time
40
Tool Storage Capacity
40
Chip Removal System
Chip Conveyor
Coolant System
Coolant Tank
Drive System Type
440/3/60
Control System Type
Mazatrol 640 MT CNC Control
Other
TSC, Tool Presetter, Parts Catcher, Bar Feeder Interface, Multi-Tap Transformer, RS-232C Port, PCMCIA Interface, Electrics: 440/3/60
Approximate Dimensions
121" x 84"
Approximate Machine Height
97"
Approximate Machine Weight
16,500 LBS
Software Compatibility
EIA/ISO Input Function, Helical Interpolation

Do you have a Mazak INTEGREX 100SY to sell?

We are actively seeking a 2005 Mazak INTEGREX 100SY CNC Multi-Tasking Machine. This impressive machine features the Mazatrol 640MT CNC control, providing a user-friendly interface that enhances operational efficiency. With a maximum swing of 18.5 inches and a turning length of nearly 30 inches, this model is designed for versatility and precision, making it ideal for various machining tasks. Equipped with an ATS collet chuck on both the main and sub spindles, the INTEGREX 100SY boasts a main spindle speed of 5,000 RPM and a sub-spindle speed of 6,000 RPM.

Additionally, it features a milling spindle capable of reaching 10,000 RPM, allowing for dynamic machining operations that can adapt to the demands of aerospace, job shop, and manufacturing industries. The B-axis rotation of +/- 225 degrees and C-axis indexing with increments of .001 degrees provide enhanced flexibility, enabling complex part geometries to be machined with ease. The machine's robust design includes a 40-station tool changer, ensuring minimal downtime and increased productivity. With a rapid traverse rate of 1,181 IPM on the X-axis and 1,299 IPM on the Z-axis, this CNC multi-tasking machine is built for speed and efficiency.

The upper turret features live tooling with a horsepower of 7.5 HP and a speed range of up to 10,000 RPM, making it an invaluable asset for shops looking to expand their capabilities. Sellers often consider parting with machines like the Mazak INTEGREX 100SY for various reasons, such as upgrading to newer technology, downsizing operations, or closing facilities. If you have a 2005 Mazak INTEGREX 100SY or similar machines that you are considering selling, we would love to hear from you. Let us help you turn your equipment into cash quickly and efficiently.
