Direct procurement2018 Model

Sell your Mazak QTN 500IIMY / 3000 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

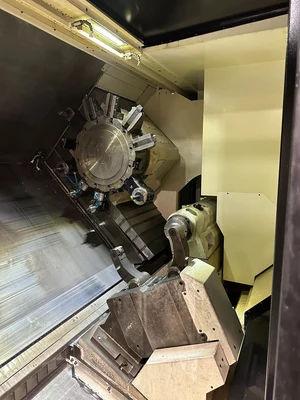

Make: Mazak
Model: QTN 500IIMY / 3000
Year: 2018
Category: CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak QTN 500IIMY / 3000 Specifications

# Of Spindle Speeds: 2
Spindle Speed: 2000 RPM
Spindle Power: 50 HP
Chuck Size: 18"
Bar Capacity: 7.2"
Swing Over Bed: 33.07"
Turning Diameter: 22.84"
Turning Length: 120.87"
Distance Between Centers: 125"
Spindle Bore: 7.2"
X - Axis Travel: 13.38"
Z - Axis Travel: 125"
Y - Axis Travel: 8"
B - Axis Head Indexing: 0
C - Axis Indexing: .001 Degree
Rapid Traverse Rate X: 1181 IPM
Rapid Traverse Rate Z: 1299 IPM
Rapid Traverse Rate Y: 555 RPM
Turret Tool Positions: 24
Turret Rotary Tool Speed: 4000 RPM
Turret Rotary Tool Power: 10 HP
Tailstock Quill Diameter: 3.94"
Tailstock Taper: MT #5
Tailstock Travel: 123"
Machine Weight: 34,417 Lbs.

Do you have a Mazak QTN 500IIMY / 3000 to sell?

We are actively seeking a 2018 MAZAK QTN 500IIMY / 3000 CNC lathe. This multi-axis machine is known for its robust capabilities, making it an excellent choice for manufacturers looking to maximize efficiency and precision. With a swing over bed of 33.07 inches and a turning diameter of 22.84 inches, this lathe can handle substantial workpieces with ease. The turning length of 120.87 inches and a distance between centers of 125 inches further enhance its versatility, allowing for a range of applications in various industries.

Equipped with an 18-inch chuck size and a spindle bore of 7.2 inches, the MAZAK QTN 500IIMY / 3000 is powerful, featuring spindle speeds of up to 2000 RPM and a spindle horsepower of 50 HP. These specifications ensure that the machine can tackle demanding tasks efficiently. The Y-axis travel of 8 inches, along with X and Z-axis travels of 13.38 inches and 125 inches respectively, provides exceptional maneuverability, while the C-axis indexing at 0.001 degrees allows for precise operations. The rapid traverse rates of 1181 IPM on the X-axis and 1299 IPM on the Z-axis, combined with a rapid traverse rate of 555 RPM on the Y-axis, ensure that your production can maintain high speeds without sacrificing quality.

Additionally, the turret tool positions, boasting 24 positions with rotary tool speeds of 4000 RPM and 10 HP, offer the flexibility needed for complex machining tasks. We understand that sellers often part with their machines for various reasons, such as upgrading to newer models, downsizing operations, or even closing facilities. If you own a 2018 MAZAK QTN 500IIMY / 3000 or similar CNC lathe, we encourage you to reach out to us today for a competitive offer.
