Direct procurement2011 Model

Sell your Mazak NEXUS QTN350IIMY/1500 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

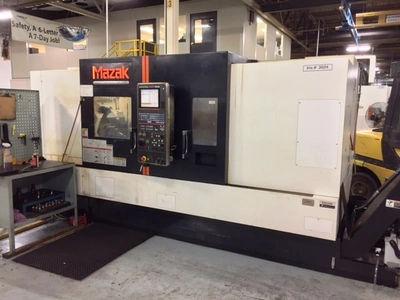

Make: Mazak
Model: NEXUS QTN350IIMY/1500
Year: 2011
Category: CNC Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak NEXUS QTN350IIMY/1500 Specifications

Swing Over Bed: 29.5''
Swing Over Carriage: 20.87''
Max Cutting Diameter: 16.5''
Max Cutting Length: 59.4''
Spindle Nose: A2-11''
Spindle Bore Main: 4.4''
Spindle Speeds: 3300 RPM
Spindle Torque: 530 FT-LBS
Rotary Tool Spindle Speeds: 4000 RPM
Rotary Tool Horsepower: 10 HP
Turret Positions: 12 POSITION
Turret Clamping Force: 11,700 LBS
X Axis Travel: 10.2''
Y Axis Travel: +-2.95" (5.90" total)
Z Axis Travel: 59.25''
C Axis Travel: .0001 DEGREE N/C CONTOURING
Rapid Traverse Rate X: 1181 IPM
Rapid Traverse Rate Z: 1299 IPM
Rapid Traverse Rate Y: 555 RPM
Tailstock Control: FULLY PROGRAMABLE
Tailstock Quill Diameter: 3.94''
Tailstock Center: MT # 5
Stroke Of Tail Body: 53.4''
Machine Weight: 15,417 LBS
Main Motor: 40 HP

Do you have a Mazak NEXUS QTN350IIMY/1500 to sell?

We are actively seeking a 2011 MAZAK NEXUS QTN350IIMY/1500 Live Tooling Lathe. This impressive machine features a swing over bed of 29.5 inches and a swing over carriage of 20.87 inches, allowing for versatility in handling various workpieces. With a maximum cutting diameter of 16.5 inches and a maximum cutting length of 59.4 inches, the NEXUS QTN350IIMY/1500 is designed for efficiency and precision. Its spindle nose is A2-11, complemented by a spindle bore of 4.4 inches, which enables robust performance at spindle speeds of up to 3300 RPM and a spindle torque of 530 FT-LBS. Additionally, the rotary tool spindle speeds reach up to 4000 RPM, with a horsepower rating of 10 HP, ensuring that this lathe can tackle demanding tasks with ease.

This model is equipped with a 12-position turret that boasts a clamping force of 11,700 lbs, providing the reliability and strength you need for complex machining operations. The X-axis travel measures 10.2 inches, while the Y-axis travel offers a total of 5.90 inches with its ±2.95-inch capability. The Z-axis travel spans 59.25 inches, allowing you to work on larger components without hassle. The C-axis travel features a precise .0001-degree N/C contouring, enhancing your machining accuracy significantly. Rapid traverse rates of 1181 IPM in the X and 1299 IPM in the Z axis, combined with a rapid traverse rate of 555 RPM in the Y axis, further contribute to its efficiency.

As machine owners, you may find yourself parting with your MAZAK NEXUS QTN350IIMY/1500 for various reasons. Whether you're upgrading to newer technology, downsizing your operations, or even closing a facility, we understand the importance of a smooth transition. We are here to assist you in this process, ensuring you receive a fair price and a hassle-free experience. At Superior Machine Tools, we buy used CNC machines nationwide, including this exceptional MAZAK lathe. If you're considering selling your 2011 MAZAK NEXUS QTN350IIMY/1500 or similar CNC machines, reach out to us today to learn more about how we can help you.
