Direct procurement2003 Model

Sell your Mazak INTEGREX 400-3ST today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

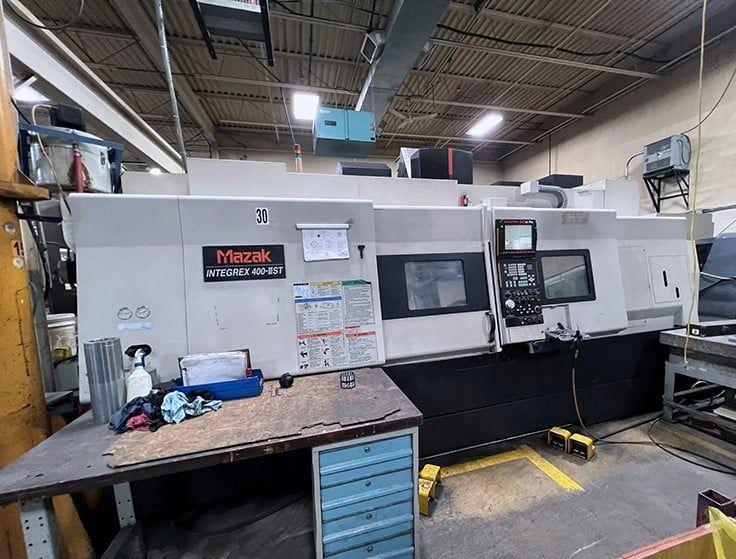

Make: Mazak
Model: INTEGREX 400-3ST
Year: 2003
Category: CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak INTEGREX 400-3ST Specifications

Spindle Speed: 3300 rpm
Weight: 12.93103 kg
Main Spindle Chuck Size: 15"
Sub Spindle Chuck Size: 10"
X1 Axis Travel: 24.8"
X2 Axis Travel: 9.06"
Y Axis Travel: 10.23"
Z1 Axis Travel: 62.4"
Z2 Axis Travel: 60.24"
B - Axis Tilt Head: + 210 Deg To - 30 Deg
C - Axis Indexing: 0.001 Deg
Max Turning Diameter: 30"
Max Turning Length: 60"
Max Bar Capacity: 3.46"
Max Main Spindle Speed: 3300 Rpm
Max Sub Spindle Speed: 4000 Rpm
Spindle Motor Power: 40 Hp
Turret Tooling: 40 Station
Lower Turret Capacity: 9 Tools
Rapid Traverse Rate X/Z Axes: 1,496 Ipm
Live Milling Speed: 12,000
Rotary Tool Motor: 25 Hp
Tool Taper: KM-63
Machine Dimensions: 202" X 93" X 115"
Machine Weight: 28,500 Lbs

Do you have a Mazak INTEGREX 400-3ST to sell?

We are actively seeking a 2003 Mazak INTEGREX 400-3ST multispindle automatic lathe to purchase. This versatile CNC multi-tasking machine is renowned for its efficiency and precision in both milling and turning operations. With a maximum spindle speed of 3300 RPM, the INTEGREX 400-3ST is equipped to handle a variety of materials, making it an invaluable asset in any machine shop. It features a main spindle chuck size of 15 inches and a sub spindle chuck size of 10 inches, allowing for substantial workpiece diameters up to 30 inches and lengths reaching 60 inches.

The machine boasts impressive axis travels, with X1 axis travel at 24.8 inches, Y axis travel at 10.23 inches, and Z1 axis travel at 62.4 inches, ensuring it can accommodate a wide range of machining tasks. Additionally, the B-axis tilt head offers flexibility with angles ranging from +210 degrees to -30 degrees, while the C-axis indexing at 0.001 degrees enhances precision. With a turret tooling capacity of 40 stations and a lower turret capacity of 9 tools, this machine is designed for high productivity and quick changeovers. The rapid rate on the X/Z axes is an impressive 1,496 IPM, and it features live milling capabilities with a speed of 12,000 RPM powered by a 25 HP rotary tool motor.

Weighing 28,500 lbs and with dimensions of 202" x 93" x 115", the INTEGREX 400-3ST is a robust machine that can significantly enhance your production capabilities. If you have a 2003 Mazak INTEGREX 400-3ST that you are looking to sell, contact us today for a competitive quote!
