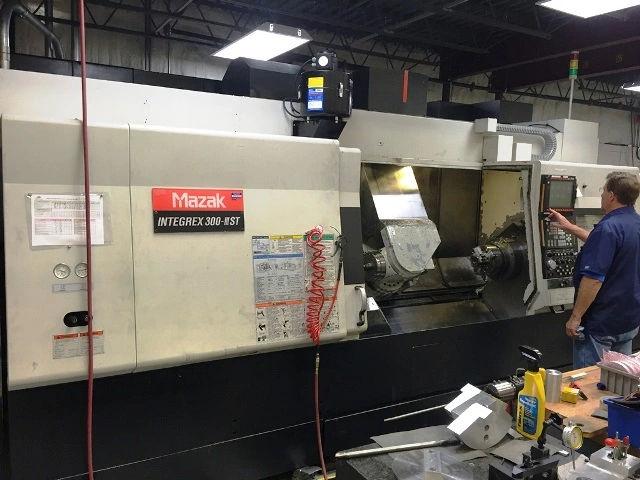

Mazak INTEGREX 300III ST/ 60 (2005)
Sell your Mazak INTEGREX 300III ST/ 60 2005 today.
Mazak INTEGREX 300III ST/ 60 Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 3.46" |
| 2nd Spindle Chuck | 10" |
| 2nd Spindle HP | 30/35 |
| 2nd Spindle RPM | 4,000 RPM |
| 5 Axis Machining | Yes |
| 12 Position Lower Turret | Yes |
| A Axis Travel | 60.24 in |
| Accuracy and Precision | Yes |
| Approximate Dimensions | 201" X 91.8" X 110.2" |
| Approximate Machine Weight | 29,983 LBS |
| ATC Magazine Capacity | 40 |
| Axes | X, Y, Z |
| Axis Rapid Rates | 1023 IPM, 1496 IPM |
| Axis Travels | X: 24.8", Y: +/- 4.53", Z: 62.4" |
| B Axis Travel | 10 RPM |
| B Axis Spindle Speeds | 400 RPM |
| C Axis Travel | 400 RPM |
| Control Type | CNC (MAZATROL FUSION 640MT) |
| Maximum Cutting Diameter | 30" |
| Maximum Cutting Length | 60" |
| Maximum Tool Diameter | 3.54" |
| Maximum Tool Length | 15.75" |
| Tool Change Time | 1.3 SEC |
| Tool Holder Type | Hydraulic |
| Weight Capacity | 29,983 LBS |
| Spindle Speed Range | 4,000 RPM |
| Spindle Motor Power | 30/35 |
| Tool Positions | 9 |
| Rapid Traverse Rate | 1023 IPM, 1496 IPM |
| Tool Storage Capacity | 40 |
| Chip Removal System | Yes |
| Other | Parts Conveyor |
| Other | Multi Tap Transformer |
| Other | Chip Conveyor |
| Other | SPECIFICATIONS: |
| Other | NOTE: WITHOUT BORING BAR HOLDER ON TURRET. |
| Other | SPINDLE NOSE: A2-8 |
| Other | SPINDLE INDEX (PROGRAMMABLE): 0.0001 DEG. |
| Other | SPINDLE TORQUE: 442.5 FT-LBS. |
| Other | SPINDLE INDEX (PROGRAMMABLE): 0.0001 DEG. (C-AXIS OPTIONAL) |
| Other | SPINDLE TORQUE: 368.8 FT-LBS. |
| Other | TYPE OF TURRET: 1 POSITION W/ATC |
| Other | TOOL SHANK HEIGHT: 1" |
| Other | TOOL SIZE (BORING BAR MAX. DIA.): 1.5" |
| Other | MAGAZINE CAPACITY: 40 TOOLS (KM) |
| Other | TOOL SELECTION METHOD: RANDOM |
| Other | MAX. TOOL DIA. W/ALL POCKETS FULL: 3.54" |
| Other | MAX. TOOL DIA. W/ADJ POCKETS EMPTY: 4.92" |
| Other | MAXIMUM TOOL WEIGHT: 22 LBS. |
| Other | ROTARY TOOL SPINDLE SPEED: 12,000 RPM |
| Other | ROTARY TOOL SPINDLE HP (20%ED): 24.8 HP (AC) |
| Other | ROTARY TOOL TORQUE (20%ED): 88.5 FT-LBS. |
| Other | TYPE OF TURRET: DRUM |
| Other | TOOL SHANK HEIGHT: 1.0" X 1.0" X 5"L |
| Other | TOOL SIZE (BORING BAR MAXIMUM DIAM): 1.25" |
| Other | TOTAL NUMBER OF TOOLS: 9 |
| Other | TOOL SELECTION METHOD: BI-DIRECTIONAL |
| Other | TOOL INDEX TIME: (1 STEP) 0.14 SEC. |
| Other | Y-AXIS TRAVELS: +/- 4.53" |
| Other | X-AXIS TRAVELS: 24.8" |
| Other | Z-AXIS TRAVELS: 62.4" |
| Other | X2 AXIS LOWER: 9.06" |
| Other | Z2 AXIS LOWER: 60.2" |
| Other | Y-AXIS RAPID RATES: 1023 IPM |
| Other | X/X2 AXIS RAPID RATES: 1496 IPM |
| Other | Z/Z2 AXIS RAPID RATES: 1496 IPM |
| Other | SECOND HEADSTOCK W-AXIS: 60.24" |
| Other | C-AXIS: 400 RPM |
| Other | FLOOR SPACE (WXL): 201" X 91.8" X 110.2" |
| Other | MACHINE WEIGHT: 29,983 LBS. |
Do you have a Mazak INTEGREX 300III ST/ 60 to sell?
We are actively seeking a 2005 MAZAK INTEGREX 300III ST/60 CNC Multi-Tasking Machine. This versatile machine is renowned for its exceptional capabilities in both milling and turning, making it an ideal choice for a variety of machining tasks. With a maximum swing of 33.5 inches and a turning diameter of 30 inches, this model is well-equipped to handle large workpieces efficiently. The INTEGREX 300III features a main spindle speed of up to 4,000 RPM, allowing for rapid machining and high productivity. Additionally, it boasts a substantial main spindle horsepower of 30, providing the power necessary for demanding applications. This machine is designed with a 40-position Automatic Tool Changer (ATC), ensuring that tool changes are quick and efficient, which is crucial for maintaining throughput in a busy shop environment.
The 9-position lower turret complements the main spindle, allowing for simultaneous machining operations and maximizing productivity. The machine's control system, the MAZATROL FUSION 640MT, offers intuitive programming and operation, which helps streamline workflows and reduce setup times. The INTEGREX 300III also accommodates a maximum cutting length of 60 inches, making it suitable for long workpieces. Its travel capabilities, including X-axis travel of 24.8 inches and Z-axis travel of 62.4 inches, provide the flexibility needed for complex machining operations. The inclusion of a sub-spindle further enhances its multitasking abilities, allowing for continuous operation without the need for manual intervention. Sellers often choose to part with their machines like the MAZAK INTEGREX 300III due to various reasons such as upgrading to newer models, downsizing operations, or even plant closures.
If you find yourself in a similar situation, we understand the challenges and are here to help. At Superior Machine Tools, we buy CNC machines nationwide and ensure a smooth selling process. We offer fast payments and take care of all logistics, so you can focus on what matters most. If you're ready to sell your MAZAK INTEGREX 300III ST/60 or any other used CNC machinery, reach out to us today and discover how easy it can be to turn your equipment into cash.
