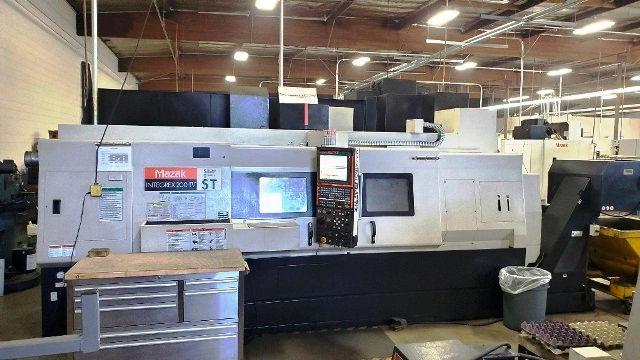

Mazak INTEGREX 200IV ST/ 60 (2009)
Sell your Mazak INTEGREX 200IV ST/ 60 2009 today.
Mazak INTEGREX 200IV ST/ 60 Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 2.99" |
| 2nd Spindle Chuck | 8" |
| 2nd Spindle HP | 25/20 |
| 2nd Spindle RPM | 5,000 RPM |
| 5 Axis Machining | Yes |
| 12 Position Lower Turret | 9 |
| A Axis Travel | N/A |
| A Axis Rapid Traverse | N/A |
| Accuracy and Precision | N/A |
| Air Requirements | N/A |
| Approximate Dimensions | N/A |
| Approximate Machine Height | N/A |
| Approximate Machine Weight | N/A |
| ATC Capacity | 40 |
| ATC Magazine Capacity | 40 |
| Automatic Tool Changer Capacity | N/A |
| Axes | N/A |
| Axis Rapid Rates | N/A |
| Axis Travels | X: 22.8", Z: 60.82", Y: +/- 3.15", C: .0001" |
| Axis X | 22.8" |
| Axis Y | +/- 3.15" |
| Axis Z | 60.82" |
| B Axis Coupling | N/A |
| B Axis Head Indexing | 5° |
| B Axis Travel | 225 DEG |
| B Axis Milling Spindle Speed | 12,000 RPM |
| B Axis Spindle Speeds | N/A |
| C Axis Travel | .0001" |
| Control Type | CNC (MAZATROL MATRIX) |
| Maximum Cutting Diameter | N/A |
| Maximum Cutting Length | 61" |
| Maximum Tool Diameter | N/A |
| Maximum Tool Length | 11.81" |
| Tool Change Time | N/A |
| Tool Holder Type | N/A |
| Weight Capacity | N/A |
| Workpiece Weight Capacity | N/A |
| Workpiece Size | N/A |
| Spindle Speed Range | N/A |
| Spindle Motor Power | 30/25 HP |
| Tool Positions | N/A |
| Rapid Traverse Rate | N/A |
| Feed Rate | N/A |
| Cutting Speed | N/A |
| Number of Tools | N/A |
| Tool Storage Capacity | 40 |
| Chip Removal System | Yes |
| Coolant System | Yes |
| Drive System Type | N/A |
| Control System Type | CNC (MAZATROL MATRIX) |
| Software Compatibility | N/A |
| Other | Parts Catcher: Yes |
| Other | Chip Conveyor: Yes |
| Other | Milling Spindle Synchronous Tapping: Yes |
| Other | High Pressure Coolant System (PSI): 213 |
| Other | Maximum Swing: 26.5" |
| Other | Maximum Cutting Length: 61" |
| Other | Maximum Tool Length: 11.81" |
| Other | Maximum Swing Over Cross Slide: 26.5" |
| Other | Main Spindle Bore/Max Bar Capacity: 2.99/2.5" |
| Other | Tail Stock/Sub Spindle: Sub Spindle |
| Other | Main Spindle Chuck Size: 8" |
| Other | Main Spindle Chuck Type: Hydraulic |
| Other | Main Spindle Speed: 5,000 RPM |
| Other | Main Spindle Horsepower (CONT. /30 MINS): 30/25 |
| Other | Sub Spindle/2nd Spindle Chuck Size: 8 |
| Other | Sub Spindle/2nd Spindle Bore Size: 2.99" |
| Other | Sub Spindle/2nd Spindle Chuck Type: Hydraulic |
| Other | Sub Spindle/2nd Spindle Speed: 5,000 RPM |
| Other | Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS): 25/20 |
| Other | Number of Turrets: 1 |
| Other | Turret Tool Positions: 9 |
| Other | Turret Rotary Tool Spindle Speed: 6,000 |
| Other | Turret Rotary Tool Horse Power: 5 |
| Other | B Axis Rotary Tool Spindle Speed: 12,000 RPM |
| Other | B-Axis Rotary Tool Spindle Horsepower: 25 HP |
| Other | Z - Axis Thrust: 3124 FT/LBS. |
| Other | Main Motor / Second Spindle: 30 HP/AC 25 HP |
Do you have a Mazak INTEGREX 200IV ST/ 60 to sell?
We are actively seeking a 2009 MAZAK INTEGREX 200IV ST/60 CNC multi-tasking machine. This advanced piece of machinery is renowned for its impressive capabilities in both milling and turning, making it a valuable asset for any manufacturing facility. With a maximum swing of 26.5 inches and a maximum turning diameter of 26 inches, this machine is engineered to handle a variety of complex tasks with precision and efficiency. The main spindle can reach speeds of up to 5,000 RPM, while the sub-spindle also matches this speed, ensuring that you can achieve high-quality finishes on your workpieces. The INTEGREX 200IV ST/60 is equipped with a robust Mazatrol Matrix control system, which simplifies programming and operation, allowing you to maximize productivity.
The machine features a 40-station automatic tool changer, which helps reduce downtime and enhances workflow. Additionally, the 9-position lower turret provides versatility for various machining operations, making it suitable for a wide range of industries, from aerospace to job shops. This model is also designed for efficiency with its high-pressure coolant system that operates at 213 PSI, ensuring optimal cutting conditions. The chip conveyor further supports a clean working environment, making maintenance and operation smoother. Sellers often part with machines like the INTEGREX 200IV ST/60 due to reasons such as upgrading to newer technologies, downsizing operations, or closing facilities altogether.
If you're considering selling your equipment, know that we understand the intricacies involved in such decisions, and we respect the value of your investment. At Superior Machine Tools, we buy machines nationwide and offer fast payments to ensure a hassle-free selling experience. We handle all logistics, so you don't have to worry about transportation or setup. If you own a 2009 MAZAK INTEGREX 200IV ST/60 or a similar model, reach out to us today, and let's discuss how we can help you sell your equipment quickly and efficiently.
