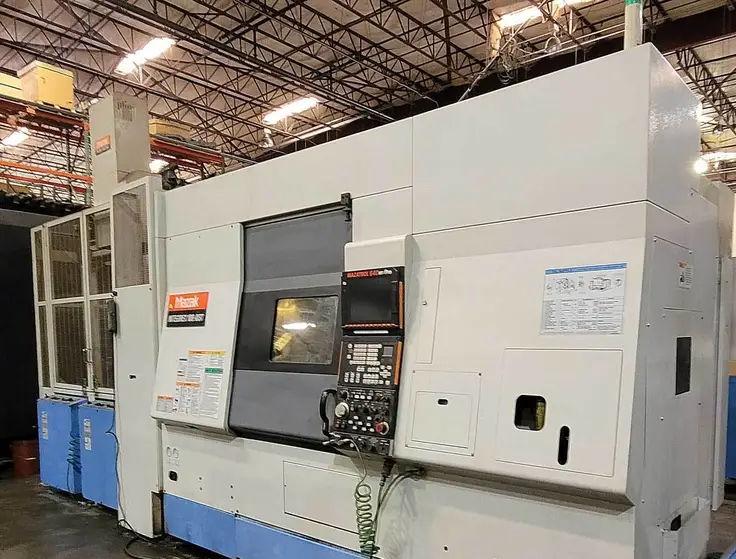

Mazak INTEGREX 100 IIIST w/ GANTRY (2005)

Direct procurement2005 Model

Sell your Mazak INTEGREX 100 IIIST w/ GANTRY today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Mazak
Model: INTEGREX 100 IIIST w/ GANTRY
CNC Control: CNC (MAZATROL FUSION 640 MT PRO)
Year: 2005
Category: CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak INTEGREX 100 IIIST w/ GANTRY Specifications

# Axis: 5
2nd Spindle Bore: 2.4"
2nd Spindle Chuck: 8"
2nd Spindle HP: 10/15
2nd Spindle RPM: 6,000 RPM
12 Position Lower Turret: 9
A Axis Travel: Not Provided
A Axis Rapid Traverse: Not Provided
Accuracy and Precision: Not Provided
Air Requirements: Not Provided
Approximate Dimensions: Not Provided
Approximate Machine Height: Not Provided
Approximate Machine Weight: Not Provided
ATC Magazine Capacity: 40
Axes: Not Provided
Axis Rapid Rates: Not Provided
Axis Travels: X: 16.14", Z: 31.69"
Axis X: Not Provided
Axis Y: Not Provided
Axis Z: Not Provided
B Axis Coupling: Not Provided
B Axis Head Indexing: 0.0001 deg
B Axis Travel: 225 DEG
B Axis Milling Spindle Speed: Not Provided
B Axis Spindle Speeds: Not Provided
C Axis Travel: Not Provided
Control Type: CNC (MAZATROL FUSION 640 MT PRO)
Maximum Cutting Diameter: 21.45"
Maximum Cutting Length: 29.65"
Maximum Tool Diameter: Not Provided
Maximum Tool Length: Not Provided
Tool Change Time: Not Provided
Tool Holder Type: Not Provided
Weight Capacity: Not Provided
Workpiece Weight Capacity: Not Provided
Workpiece Size: Not Provided
Spindle Speed Range: Not Provided
Spindle Motor Power: Not Provided
Tool Positions: Not Provided
Rapid Traverse Rate: Not Provided
Feed Rate: Not Provided
Cutting Speed: Not Provided
Number of Tools: Not Provided
Tool Storage Capacity: Not Provided
Chip Removal System: Yes
Coolant System: Not Provided
Drive System Type: Not Provided
Control System Type: Not Provided
Software Compatibility: Not Provided
Other: Maximum Swing: 21.45", Maximum Swing Over Cross Slide: 13.86", Distance Between Spindles: 28.9", X-Axis Travel: 16.14, Z-Axis Travel: 31.69, C-Axis Indexing: .0001, W-Axis Travel Sub Spindle: 31.3 in, Main Spindle Chuck Size: 8", Main Spindle Chuck Type: Hydraulic, Main Spindle Bore Diameter: 2.4", Main Spindle Maximum Bar Work: 2", Main Spindle Speed: 6,000 RPM, Main Spindle Horsepower (CONT. /30 MINS): 10/15, Sub Spindle/2nd Spindle Chuck Size: 8, Sub Spindle/2nd Spindle Bore Size: 2.4, Sub Spindle/2nd Spindle Chuck Type: Hydraulic, Sub Spindle/2nd Spindle Speed: 6,000 RPM, Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS): 10/15, Number of Turrets: 1, Turret Rotary Tool Spindle Speed 1, 2: 12000, Turret Rotary Tool Horse Power 1, 2: 7.0, B-Axis Head Indexing: 0°, B Axis Rotary Tool Spindle Speed: 12,000 RPM, B-Axis Rotary Tool Spindle Horsepower: 7.5 hp, Chip Conveyor: Yes, High Pressure Coolant System (PSI): 213, Gantry System: Yes.

Do you have a Mazak INTEGREX 100 IIIST w/ GANTRY to sell?

We are actively seeking a 2005 MAZAK INTEGREX 100 IIIST w/ GANTRY CNC Multi-Tasking Machine. This versatile machine is perfect for a range of applications due to its multi-tasking capabilities, allowing both milling and turning operations in a single setup. The INTEGREX 100 IIIST features a maximum swing of 21.45 inches and a maximum turning diameter of 21.45 inches, making it suitable for various workpieces. With an impressive main spindle speed of 6,000 RPM and a powerful 10/15 horsepower rating, this machine is designed to handle demanding tasks with ease. Equipped with a sub-spindle that also operates at 6,000 RPM, this model enhances productivity by enabling simultaneous operations.

The machine's ATC magazine capacity of 40 positions allows for quick tool changes, which can significantly reduce downtime during production runs. Additionally, the 213 PSI high-pressure coolant system ensures effective chip removal and improved cutting performance, further contributing to operational efficiency. We understand that many sellers choose to part with their machines for various reasons, including upgrading to newer technology, downsizing operations, or even closing facilities. Whatever your reason may be, we are here to help you navigate the selling process smoothly. We buy nationwide, and our experienced team makes the process straightforward and efficient.

If you own this exceptional machine or one with similar specifications, we encourage you to reach out to us. Let us assist you in making the most of your investment while simplifying the selling experience. Contact us today to learn more about how we can help you sell your CNC equipment effectively.
