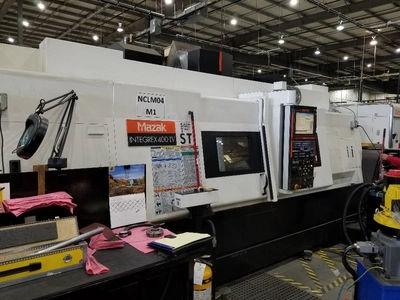

Mazak INT400IVST/1500 (2010)
Direct procurement2010 Model

Sell your Mazak INT400IVST/1500 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make
Mazak
Model
INT400IVST/1500
CNC Control
Not Provided
Year
2010
Category
CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition
Used / Surplus
Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak INT400IVST/1500 Specifications

# Axis
5
2nd Spindle Bore
3.46"
2nd Spindle Chuck
10"
2nd Spindle HP
35 HP
2nd Spindle RPM
4000 RPM
A Axis Travel
Not Provided
A Axis Rapid Traverse
Not Provided
Accuracy and Precision
Not Provided
Approximate Dimensions
Not Provided
Approximate Machine Height
Not Provided
Approximate Machine Weight
31,000 LBS.
ATC Capacity
40 ATC
ATC Magazine Capacity
Not Provided
Automatic Tool Changer Capacity
Not Provided
Axes
Not Provided
Axis Rapid Rates
Not Provided
Axis Travels
Not Provided
Axis X
24.8"
Axis Y
9.06"
Axis Z
62.41"
B Axis Coupling
Not Provided
B Axis Head Indexing
225 DEGREE
B Axis Travel
Not Provided
B Axis Milling Spindle Speed
12,000 RPM
B Axis Spindle Speeds
Not Provided
C Axis Travel
Not Provided
Control Type
Not Provided
Maximum Cutting Diameter
30"
Maximum Cutting Length
60"
Maximum Tool Diameter
3.5"
Maximum Tool Length
15.75"
Tool Change Time
Not Provided
Tool Holder Type
Not Provided
Weight Capacity
Not Provided
Workpiece Weight Capacity
Not Provided
Workpiece Size
Not Provided
Spindle Speed Range
Not Provided
Spindle Motor Power
Not Provided
Tool Positions
Not Provided
Rapid Traverse Rate
Not Provided
Feed Rate
Not Provided
Cutting Speed
Not Provided
Number of Tools
Not Provided
Tool Storage Capacity
Not Provided
Chip Removal System
Not Provided
Coolant System
Not Provided
Drive System Type
Not Provided
Control System Type
Not Provided
Software Compatibility
Not Provided
Other
Distance Between Spindles: 60.2"
Chuck Size 1
12"
Spindle Nose 1
A2 -8
Spindle Bore Diameter 1
4.41"
Bar Capacity 1
4.0"
Spindle Speeds 1
3300 RPM
Spindle Horsepower 1
40 HP
Tool Diameter
3.5"
Tool Length
15.75"
Tool Weight
22 LBS.
Z - Axis Travel Z2
60.24"
Y - Axis Travel Y1
9.06"
C - Axis Indexing 1
.0001
C - Axis Indexing 2
.0001
W - Axis Travel Sub Spindle
60.24"
Rapid Traverse Rates X1
1496 IPM
Rapid Traverse Rates X2
1496 IPM
Rapid Traverse Rates Z1
1496 IPM
Rapid Traverse Rates Z2
1496 IPM
Turret Tool Positions 1
9 POSITION.

Do you have a Mazak INT400IVST/1500 to sell?

We are actively seeking a 2010 MAZAK INT400IVST/1500 CNC multi-tasking machine. This impressive machine showcases a swing over bed of 33.6 inches and a turning diameter of 30 inches, making it a versatile option for a variety of machining tasks. With a turning length of 60 inches and a distance between spindles measuring 60.2 inches, this model is designed for efficiency and precision in production environments. The machine is equipped with two spindles, featuring a 12-inch and a 10-inch chuck size, both with A2-8 spindle noses, allowing for exceptional flexibility in handling different workpieces. It boasts spindle bore diameters of 4.41 inches and 3.46 inches, which supports a bar capacity of 4.0 inches for both spindles.

The MAZAK INT400IVST/1500 is powered by impressive spindle speeds of 3300 RPM for the first spindle and 4000 RPM for the second, with horsepower ratings of 40 HP and 35 HP, respectively. The B-axis head indexing of 225 degrees enhances its multi-tasking capabilities, while the B-axis milling spindle speed reaches an impressive 12,000 RPM, backed by a 25 HP motor. The automatic tool changer for the milling spindle holds up to 40 tools, accommodating tool diameters of 3.5 inches and lengths of 15.75 inches, with a maximum tool weight of 22 pounds. With X-axis travels of 24.8 inches and 9.06 inches, Z-axis travels of 62.41 inches and 60.24 inches, and Y-axis travel of 9.06 inches, this machine provides extensive movement capabilities. The rapid traverse rates across the axes can reach up to 1496 IPM, and 1024 IPM for the Y-axis, ensuring quick and efficient operations.

The turret tool positions enhance its versatility, providing 27 positions across three turrets, making it an ideal choice for complex machining tasks. Sellers often part with machines like the MAZAK INT400IVST/1500 due to upgrades to newer models, downsizing operations, or even plant closures. If you're considering selling your machine, we are here to help. Contact us today to discuss your options and get a competitive offer for your equipment.
