Direct procurement2006 Model

Sell your Mazak INT400IVST/1500 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

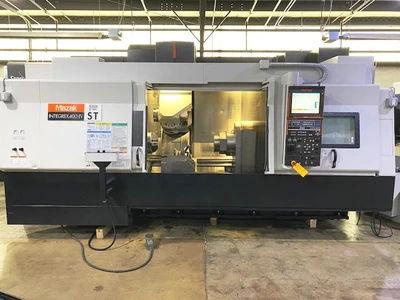

Make: Mazak
Model: INT400IVST/1500
Year: 2006
Category: CNC Multi-Tasking Machines (Mill-Turn / Turn-Mill)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak INT400IVST/1500 Specifications

# Axis: 5
2nd Spindle Bore: 3.4"
2nd Spindle Chuck: 10"
2nd Spindle HP: 35"
2nd Spindle RPM: 4000 RPM
5 Axis Machining: Yes
B Axis Head Indexing: 225 DEGREE
B Axis Milling Spindle Speed: 12,000 RPM
B Axis Milling Spindle Taper: KM 63
B Axis Milling Spindle Horse Power: 25 HP
ATC Capacity: 40 ATC
Tool Diameter: 3.5", 4.9"
Tool Length: 15.75"
Tool Weight: 22 LBS.
Axis X: 24.8"
Axis Z: 62.41"
Axis Y: 9.06"
C Axis Travel: .0001
W Axis Travel: 60.24"
Rapid Traverse Rate X: 1496 IPM
Rapid Traverse Rate Z: 1496 IPM
Rapid Traverse Rate Y: 1024 IPM
12 Position Lower Turret: 9 POSITION
Approximate Machine Weight: 31,000 LBS.

Do you have a Mazak INT400IVST/1500 to sell?

We are actively seeking a 2006 MAZAK INT400IVST/1500 CNC Multi-Tasking Machine. This impressive machine is designed for efficiency and versatility, making it a valuable asset for any shop. With a swing over bed of 33.6 inches and a turning diameter of 30 inches, this model allows for significant workpiece capacity. The turning length of 60 inches and the distance between spindles measuring 60.2 inches further enhance its capability to handle larger components effectively. The dual spindle arrangement features a 12-inch and a 10-inch chuck size, both equipped with A2-8 spindle noses, ensuring stability and precision throughout the machining process.

The MAZAK INT400IVST/1500 boasts a spindle bore diameter of 4.4 inches and 3.4 inches, offering substantial bar capacity of up to 4 inches. With spindle speeds reaching up to 3300 RPM and 4000 RPM, along with spindle horsepower of 40 HP and 35 HP respectively, this machine delivers the power and speed needed for various applications. The B-axis head indexing at 225 degrees and a milling spindle speed of 12,000 RPM with 25 HP allows for advanced milling operations, making this machine a true multi-tasking marvel. With an automatic tool changer (ATC) featuring 40 positions, the MAZAK INT400IVST/1500 can accommodate tool diameters of 3.5 inches to 4.9 inches and lengths of up to 15.75 inches, supporting a tool weight of 22 pounds. The X, Y, and Z-axis travels provide generous movement, with rapid traverse rates of 1496 IPM for X and Z axes and 1024 IPM for Y, ensuring swift and efficient operation.

Sellers often part with machines like the MAZAK INT400IVST/1500 for various reasons, including upgrading to newer technology, downsizing operations, or closing facilities. If you're considering selling your machine, we understand the importance of a smooth transaction. Reach out to us today to get started on selling your CNC machine with confidence.
