Direct procurement2007 Model

Sell your Mazak E410HSII/3000U today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

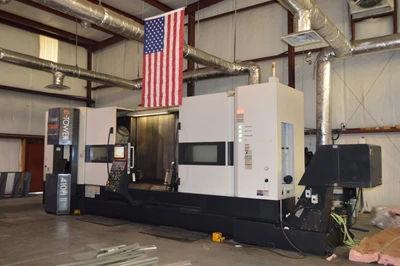

Make: Mazak
Model: E410HSII/3000U
Year: 2007
Category: CNC Turning Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak E410HSII/3000U Specifications

# Of Spindle Speeds: 1
Spindle Speed: 3000 RPM
X - Axis Travel: 29.13"
Y - Axis Travel: + - 8.07"
Z - Axis Travel: 124.65"
A Axis Travel: 240 Degrees
C - Axis Rapids: 555 IPM
X, Y, Z - Axis Rapids: 1969, 1181, 1969 IPM
Atc Capacity: 120
Max Tool Diameter: 3.74''
Max Tool Length: 15.75''
Max Tool Weight: 26.5 lbs.
2Nd Spindle RPM: 12000 RPM
2Nd Spindle Horse Power: 30 HP
Machine Weight: 60000 LBS.
C - Axis Travel Sub Spindle: .0001 Degree
Other: Swing Over Bed: 24.02''
Maximum Machining Diameter: 24.02''
Maximum Cutting Length: 123.31''
Spindle Bore Main: 4.4''
Spindle Nose: A2-8
Max. Tool Dia. / Adjacent Pocket Empty: 3.74''/5.91''
Rotary Tool Spindle Taper: 50 Big Plus
Maximum Tool Weight: 22 LBS.
C - Axis Travel: .0001 Degree.

Do you have a Mazak E410HSII/3000U to sell?

We are actively seeking a 2007 MAZAK E410HSII/3000U Big Bore Lathe. This model is known for its robust capabilities and precision, making it a valuable asset for any machining operation. With a swing over bed of 24.02 inches and a maximum machining diameter of the same size, this lathe is designed to handle large workpieces efficiently. It boasts a maximum cutting length of 123.31 inches, making it suitable for various applications in industries such as aerospace and manufacturing. Equipped with a spindle bore of 4.4 inches and an A2-8 spindle nose, the MAZAK E410HSII/3000U offers impressive spindle speeds of up to 3000 RPM.

The machine's X-axis travel extends up to 29.13 inches, with Y-axis travel reaching + - 8.07 inches and Z-axis travel extending to 124.65 inches. These specifications provide versatility and precision for complex machining tasks. Additionally, the A-axis provides 240 degrees of travel, and the C-axis rapids can reach up to 555 inches per minute, enhancing productivity. The tool magazine capacity of 120 ATC allows for efficient tool changes, while the maximum tool diameter of 3.74 inches and maximum tool length of 15.75 inches provide flexibility for various tooling needs. The rotary tool spindle speeds of 12,000 RPM and a powerful 30 HP rotary tool motor add to the machine's capabilities.

With a maximum tool weight of 26.5 lbs and a machine weight of 60,000 lbs, this lathe is built to last and perform under demanding conditions. Sellers often part with machines like the MAZAK E410HSII/3000U for a variety of reasons, such as upgrading to newer technology, downsizing operations, or closing facilities. If you own a 2007 MAZAK E410HSII/3000U Big Bore Lathe or a similar machine, we invite you to reach out to us today. Let's discuss how we can assist you in selling your equipment with confidence.
