Direct procurement2002 Model

Sell your Gleason ZSE150T today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

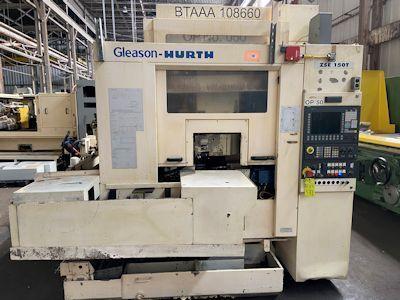

Make: Gleason
Model: ZSE150T
Year: 2002
Category: CNC Gear Machinery
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Gleason ZSE150T Specifications

Approximate Dimensions: 143"L x 102"W x 129"H
Approx Net Weight: 12,125 lbs
Workpiece Diameter: 200mm
Module: 3.5 mm
Max. Tooth Width: 45 mm
Max. Workpiece Length: 400mm
Min. Shaving Cutter Outside Diameter: 200mm
Max. Shaving Cutter Outside Diameter: 270mm
Max. Shaving Cutter Width: 50.8mm
Max. Shaving Cutter Bore Diameter: 63.5mm or 100mm
Max. Shaving Cutter Speed: 400 RPM
Min. Center Distance: 120mm
Max. Center Distance: 130mm
Cross Axis Angle Swivel: -21deg/+18deg
Max. Chamfer Rolling Tool Diameter: 205mm
Chamfer Rolling Tool Bore Diameter: 40mm
Secondary Chamfer-Deburring Disc Diameter: 59mm

Do you have a Gleason ZSE150T to sell?

We are actively seeking a 2002 Gleason ZSE150T CNC Gear Shaping machine. This model, known for its precision and efficiency, is ideal for producing high-quality gears. With a maximum workpiece diameter of 200mm and a module of 3.5mm, the ZSE150T is engineered to deliver exceptional performance in gear shaping applications. It boasts a maximum tooth width of 45mm and a workpiece length of up to 400mm, making it versatile for various manufacturing needs. Equipped with Siemens CNC technology, the ZSE150T ensures a high level of automation and control, which is crucial for maintaining accuracy in gear production.

The machine can accommodate shaving cutters with an outside diameter ranging from 200mm to 270mm and a width of up to 50.8mm, allowing for a variety of shaping tasks. Additionally, it features a maximum shaving cutter speed of 400 rpm, providing the speed and efficiency that modern manufacturing demands. The Gleason ZSE150T also offers flexibility in its setup, with a minimum center distance of 120mm and a maximum of 130mm, along with a cross-axis angle swivel of -21 degrees to +18 degrees. This adaptability makes it suitable for different types of gears and customer specifications. Sellers often decide to part with machines like the ZSE150T for various reasons, such as upgrading to newer technology, downsizing operations, or even closing down facilities.

If you have a Gleason ZSE150T or a similar machine that you're ready to sell, we invite you to reach out to us. Let's discuss how we can help you turn your machinery into cash quickly and efficiently. Your satisfaction is our priority, and we're committed to making the selling process as smooth as possible.
