Direct procurement1997 Model

Sell your Gleason PHOENIX today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

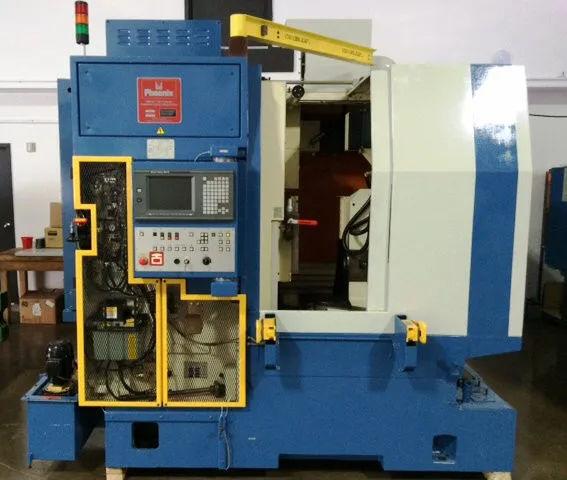

Make: Gleason
Model: PHOENIX
Year: 1997
Category: CNC Gear Machinery
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Gleason PHOENIX Specifications

Approx Net Weight: 8200
Control System: FANUC MODEL 150MB COMPUTER CONTROL
AAxis Work Spindle Face Milling RPM: 0-75
AAxis Work Spindle Face Hobbing RPM: 0-375
B Axis Swinging Base Degrees Per Second: 30°/SEC
Maximum Axial Travel: (-102MM TO178MM)
Maximum Horizontal Travel: (-152MM TO 102MM)
Axial Slide Travel: (51MM TO 304MM)
B Axis Swivelling Axis: 5 ° TO 90°
AAxis Work Spindle: 3-29/32: (#39 TAPER)
Coolant System: 3 HP
Approximate Dimensions: 18,000 LBS(8,200 KG)
Other: CONTROLS LOCATED AT FRONT OF MACHINE, ADJACENT
Other: SECURITY KEY FOR CONTROL OF SET-UP
Other: Self Contained Coolant System (Pump Tank & Piping)
Other: Installation. Control Circuit Is 115 VAC
Root Angle Range (B Axis): -5 ° TO 90 DEG
X Axis Speed: 4.92"/SEC(125MM/SEC)
Y Axis Speed: 4.92"/SEC(125MM/SEC)
Z Axis Speed: 4.92"/SEC(125MM/SEC)
C Axis Cutter Spindle RPM: 30-500
C Axis Cutter Spindle Ac Drive: FANUC 15P 1024
Cutter Spindle Diameter: FANUC 5S/3000 10K
Chip Conveyor: Included

Do you have a Gleason PHOENIX to sell?

We are actively seeking a 1997 Gleason Phoenix Gear Hobbing machine. This high-quality CNC gear machinery is known for its precision and reliability, making it a valuable asset for any shop involved in manufacturing spiral bevel gears. Equipped with a FANUC Model 150MB computer control, this machine is designed to streamline the gear cutting process, providing exceptional accuracy and efficiency. With the ability to operate at spindle speeds between 0 to 375 RPM for face hobbing and 30 to 500 RPM for the cutter spindle, the Gleason Phoenix is capable of meeting a variety of production demands. The machine features an impressive range of travel capabilities. The work spindle bore accommodates a #39 taper, while the maximum swinging base travel ranges from 5° to 90°.

Vertical travel reaches from -102mm to 178mm, and horizontal travel spans from -152mm to 102mm. Additionally, the sliding base allows for movement between 51mm to 304mm, ensuring that this machine can handle a wide array of workpiece sizes and shapes. The B-axis swinging base operates at 30° per second, enhancing operational speed and efficiency. Sellers often consider parting with their Gleason Phoenix gear hobbing machines for several reasons. Upgrading to newer technology, downsizing operations, or consolidating equipment due to plant closures are common motivations. Others may find that their machines are underutilized, and selling can free up capital and space for more pressing needs.

We take care of all logistics, making the process as easy as possible for you. If you have a 1997 Gleason Phoenix or similar CNC gear machinery that you are ready to sell, reach out to us today. We are committed to providing a fair offer and a seamless transaction. Let us help you turn your equipment into cash while you focus on your next steps.
