Direct procurement1994 Model

Sell your Gleason PHOENIX today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

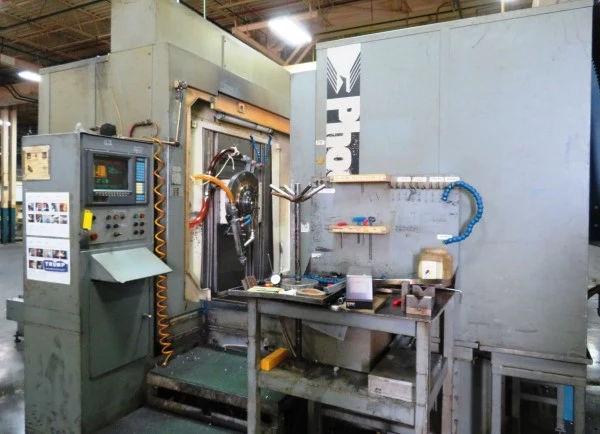

Make: Gleason
Model: PHOENIX
Year: 1994
Category: CNC Gear Machinery
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Gleason PHOENIX Specifications

A-Axis Work Spindle Ac Servo: 50.0 (Ft/Lbs)(66.0 NM)
B-Axis Swinging Base Ac Servo: 4.4 (Ft/Lbs)(5.9 NM)
C-Axis Cutter Spindle Ac-Drive: 25 HP(37.28 kW)
X-Axis Horizontal Ac Servo: 8.7 (Ft/Lbs)(11.8 NM)
Y-Axis Vertical Ac Servo: 8.7 (Ft/Lbs)(11.8 NM)
Z-Axis Sliding Base Ac Servo: 8.7 (Ft/Lbs)(11.8 NM)
Coolant Ac Induction: 5 HP(3.72 kW)
Chip Conveyor: ½ HP(.373 kW)
Weight (Approximately): 42,500 Lbs.(19,318 kGs)
Root Angle Range (B Axis): -5º to 90º
Work Spindle, A-Axis: 0 to 67 RPM, 0 to 333 RPM
Swinging Base, B-Axis: 0 to 30 deg/sec
Cutter, C-Axis: 0 to 240 RPM, 30 to 240 RPM
X Horizontal, X-Axis: 0 to 80mm/sec
Y Vertical, Y-Axis: 0 to 80mm/sec
Z Sliding Base, Z-Axis: 0 to 80mm/sec
Control System: GE-FANUC 150M COMPUTER CONTROL WITH SPIRAL BEVEL GEAR CUTTING
Other: WITH AUTOMATIC SETUP AND CONTROL OF SIX (6) AXES, COMPLETE COOLANT PLANT, PUMP TANK & PIPING WITH MAGNETIC CHIP CONVEYOR, WORK-SPINDLE BORE 8” (#80 TAPER) WITH OPTIONAL ADAPTER TO 6” (#60 TAPER), WORK CHAMBER AND CONTROL BOX LIGHTING, CHILLER UNIT FOR COOLANT SYSTEM, ELECTRICAL EQUIPMENT FOR 380 VOLT, 50 HZ, OR 460 VOLT, 60 HZ, 3-PHASE INSTALLATION. CONTROL CIRCUIT IS 110 VAC, FULL MACHINE DOCUMENTATION FOR THE MACHINE AND CONTROLLER.

Do you have a Gleason PHOENIX to sell?

We are actively seeking a 1994 Gleason Phoenix Gear Hobbing machine. This model, specifically the 500HC variant, is renowned for its capability to cut spiral bevel and hypoid gears with precision. Equipped with a GE-FANUC 150M computer control, this machine is designed to manage the automatic setup and control of six axes, including the work spindle rotational axis (A), horizontal linear motion of the cutter axis (X), and swinging base of the work-spindle axis (B). With a work spindle capable of rotating from 0 to 67 RPM and a cutter spindle that reaches up to 240 RPM, the 500HC delivers the versatility and efficiency that many shops require for high-quality gear production. The specifications of the Gleason Phoenix include an impressive root angle range from -5º to 90º, which is crucial for producing various gear geometries.

The machine also features a swinging base that operates at 0 to 30 degrees per second, providing additional flexibility in machining operations. The horizontal, vertical, and sliding base axes are all powered by AC servos, ensuring smooth and reliable movement at speeds of up to 80mm/second. With a total weight of approximately 42,500 lbs., this robust machine is built to handle the demands of industrial environments. Sellers often choose to part with their Gleason machines for a variety of reasons. Some may be upgrading to newer models with advanced technology, while others might be downsizing their operations or closing their facilities altogether.

Additionally, machines like the Phoenix may be underused in a shop, making it a practical decision to sell and free up resources. At Superior Machine Tools, we understand the importance of a hassle-free selling process. If you own a 1994 Gleason Phoenix or a similar CNC gear machinery model, we invite you to reach out to us today. Let us help you turn your unused equipment into cash while providing you with exceptional service and support throughout the entire process.
