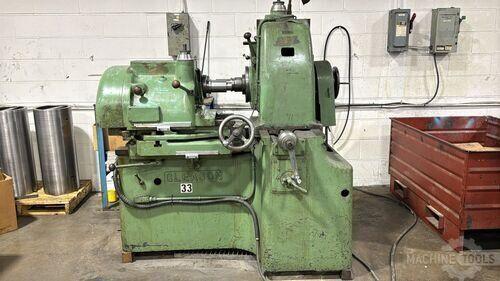

Make: Gleason
Model: 13
Category: CNC Gear Machinery
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Gleason 13 Specifications

Maximum Diameter Gear: 13" (330.2mm)
Range Of Angles: 0 to 180 degrees
Range Of Offset Pinion Spindle Above Center: 8" (203.2mm)
Range Of Offset Pinion Spindle Below Center: 2" (50.8mm)
Max. Center Distance: 8" (203.2mm)
Drive Spindle Bore (Large End): 3-29/32" (99.2mm)
Drive Spindle Bore Taper Per Ft: 39/64" (15.478mm)
Brake Spindle Bore (Large End): 2-19/64" (58.34mm)
Brake Spindle Bore Taper Per Ft: 1/2" (12.7mm)
Approx Net Weight: 5,200 lbs. (2364 kGs)
Approximate Dimensions: 60.5" x 80.5" (1537x2045mm)

Do you have a Gleason 13 to sell?

We are actively seeking a GLEASON 13 Gear Inspection machine. This model is renowned for its precision and reliability in gear testing applications. With a maximum gear diameter of 13 inches (330.2 mm) and a versatile range of angles from 0 to 180 degrees, the GLEASON 13 is designed to meet the rigorous demands of the gear manufacturing industry. Its ability to accommodate offset pinion spindles above and below the center, with ranges of 8 inches (203.2 mm) and 2 inches (50.8 mm) respectively, sets it apart as a valuable asset for any shop focused on quality assurance.

Additionally, the maximum center distance of 8 inches (203.2 mm) for spurs, helicals, and herringbones makes this machine adaptable for various gear types. The drive spindle bore, measuring 3-29/32 inches (99.2 mm) at the large end, ensures robust performance, while the taper per foot of 39/64 inches (15.478 mm) provides precise alignment for accurate testing. The brake spindle bore also supports high standards, with a large end measurement of 2-19/64 inches (58.34 mm) and a taper per foot of 1/2 inch (12.7 mm). With a floor space requirement of 60.5 inches by 80.5 inches (1537 mm x 2045 mm) and a net weight of approximately 5,200 lbs. (2364 kgs), this machine fits well into various facility layouts.

Sellers often consider parting with their GLEASON 13 due to reasons such as upgrading to newer technology, downsizing operations, or even closing a facility. Regardless of your reason for selling, we understand the importance of getting fair value for your equipment and ensuring a smooth transition. At Superior Machine Tools, we buy nationwide and make the selling process straightforward and hassle-free. If you have a GLEASON 13 Gear Inspection machine or similar equipment you're considering selling, reach out to us today and let's discuss how we can assist you!
