Direct procurement2015 Model

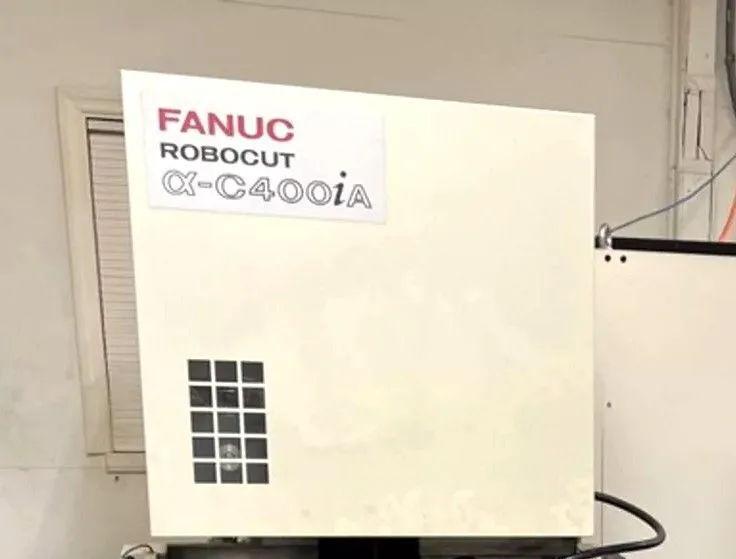

Sell your Fanuc ROBOCUT A-C400IA USED today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Fanuc
Model: ROBOCUT A-C400IA USED
Year: 2015
Category: CNC EDM Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Fanuc ROBOCUT A-C400IA USED Specifications

Main processor: 64 bit
Aux processors: 4 x 32 bit
Control method: Servo-closed loop
Controlled axes: X, Y, U, V, Z Plus optional rotary axis
Least input increment: 0.000004”
Least command increment: 0.00000004”
Interpolation: Linear, Circular
Maximum programmable dimension: ±999.99999 in.
Position command: Coordinate Systems Relative, absolute and machine values
Display unit: 15” color liquid crystal display
Part program storage and editing: 4 MB (standard)
Rapid traverse: 1 ~ 50”/ min.
Wire diameter compensation: 0 - ± 9.99999 in.
Floor space: 92” x 105”
Machine weight: 4,000 lbs.
Internal Worktank Size (X x Y x Z): 30.5” x 23.6” x 9.8”
Maximum submerged cutting depth: 9.84”
Maximum work piece weight: 1,100 lbs
Travel X Axis: 14.6” Y Axis: 10.6” Z Axis: 10.2” UV axes travel: ± 2.362” Rapid traverse: 1 ~ 50
Positioning accuracy (X, Y): ± 0.0001
Repeatability (X, Y): ± 0.000050
Wire feed system Wire feed rate: 0 ~ 590 IPM Wire tension: 200 ~ 2,500 g Maximum wire spool weight: 35 lbs Wire diameter (min. to max.): 0.004 to 0.012”
Wire guide – upper & lower guide: Round diamond . Die guide
Dielectric fluid system Tank capacity: 145 gal Chiller unit: Standard Dielectric fluid: Deionized water Resin bottle (one plus a spare): 1 cu. ft Filters (2 each): Cartridge Filtering precision: 3 Micron Dielectric fluid resistively control: NC Controlled
Power supply Pulse generator type: Transistor driven AC or DC: Switchable Power supply circuit: Transistor pulse circuit No loading voltage: Setting range 0 – 13 Cutting voltage: Setting range 3 – 18 On time: Setting range 1 – 255 Off time: Setting range 2 – 300 Servo voltage: Setting range 0 – 255 Programmable flushing: Setting range 1 - 18 Pulse mode: Setting range – 1, 2, 3, 4, 11, 12, 13, 14, 21, 31, 33, 41,43
Total power required: 13 KVA (200/220 V ± 10%, 3 Phase, 60 Hz)

Do you have a Fanuc ROBOCUT A-C400IA USED to sell?

We are actively seeking a 2015 FANUC ROBOCUT A-C400IA Wire EDM to purchase. This advanced machine is renowned for its precision and efficiency in wire cutting applications. The ROBOCUT A-C400IA features a 14.6" X-axis travel and a 10.6" Y-axis travel, making it ideal for a variety of machining tasks. With a maximum submerged cutting depth of 9.84 inches and an internal work tank size of 30.5" x 23.6" x 9.8", it can accommodate workpieces up to 1,100 lbs, enhancing its versatility in production environments.

This model is equipped with a powerful 64-bit main processor and four auxiliary 32-bit processors, ensuring smooth and reliable operation. The servo-closed loop control method enhances accuracy, offering a positioning accuracy of ±0.0001 and repeatability of ±0.000050 in the X and Y axes. With a rapid traverse rate of 1 to 50 inches per minute, it significantly reduces cycle times. The ROBOCUT A-C400IA also boasts an impressive wire feed system, with a wire feed rate of 0 to 590 IPM, accommodating wire diameters from 0.004" to 0.012".

This capability is further enhanced by the machine's wire tension settings, which range from 200 to 2,500 grams. With a total power requirement of 13 KVA and a robust dielectric fluid system that includes a 145-gallon tank, this machine is not only powerful but also designed for optimal performance and reliability. If you are looking to sell your 2015 FANUC ROBOCUT A-C400IA or have any questions about its value, please contact us today. We offer competitive prices and a hassle-free selling process for your used CNC EDM machines.
