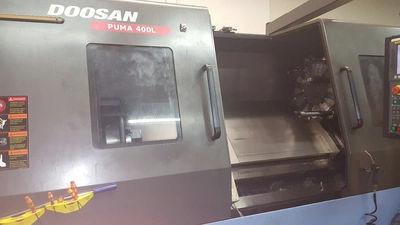

Make: Doosan
Model: PUMA 400LC
Year: 2009
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan PUMA 400LC Specifications

Swing Over Bed: 30.3''
Swing Over Carriage: 23.2''
Max Turning Diameter: 22.4''
Distance Between Centers: 84.7''
Spindle Bore Diameter: 7.12''
Spindle Nose: A2-15''
Spindle Speed: 20-1500 RPM
Spindle Torque: 1810 ft-lbs
Turret Configuration: 12
Rapid Traverse X: 590 IPM
Rapid Traverse Z: 710 IPM
Machine Weight: 22,800 LBS
X Axis Travel: 14.3"
Z Axis Travel: 83.5"
Main Motor: 50 HP
Tailstock Quill Diameter: 4.7"
Tailstock Quill Travel: 4.7"
Tailstock Travel: 39.4"
Other: 2nd Spindle Chuck Size: A2-15''
Other: 2nd Spindle Horse Power: Not Provided
Other: 2nd Spindle RPM: Not Provided
Other: 2nd Spindle Speed: Not Provided.

Do you have a Doosan PUMA 400LC to sell?

We are actively seeking a 2009 DOOSAN PUMA 400LC Big Bore Lathe. This exceptional CNC lathe is known for its robust performance and versatility, making it a valuable asset for any machining operation. With a swing over bed of 30.3 inches and a swing over carriage of 23.2 inches, this machine is designed to handle large workpieces with ease. The maximum turning diameter of 22.4 inches and a generous distance between centers of 84.7 inches give you the flexibility needed for various projects. The PUMA 400LC features a spindle bore diameter of 7.12 inches, enabling it to accommodate larger tools and materials. Its spindle speed ranges from 20 to 1500 RPM, providing the versatility to tackle a wide range of machining tasks.

With a spindle torque of 1810 ft-lbs, this lathe delivers the power necessary for demanding applications. The turret configuration boasts 12 stations, allowing for quick tool changes and increased productivity. Equipped with rapid traverse rates of 590 IPM in the X-axis and 710 IPM in the Z-axis, the PUMA 400LC ensures efficient operation, reducing cycle times and enhancing throughput. Weighing in at 22,800 pounds, this machine is built for stability and precision during operation. The X-axis travel measures 14.3 inches, while the Z-axis travel extends to 83.5 inches, providing ample movement for various machining tasks. Additionally, the main motor offers 50 HP, which contributes to its impressive performance.

The tailstock quill diameter of 4.7 inches and tailstock travel of 39.4 inches further enhance the machine's capabilities, making it suitable for a variety of applications. Sellers often part with machines like the DOOSAN PUMA 400LC for several reasons, including upgrading to newer technology, downsizing operations, or even closing facilities. If you have a 2009 DOOSAN PUMA 400LC or similar big bore lathe to sell, don't hesitate to reach out to us today. We look forward to working with you!
