Direct procurement1985 Model

Sell your Toyoda Americas x100 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Toyoda Americas
Model: x100
Year: 1985
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

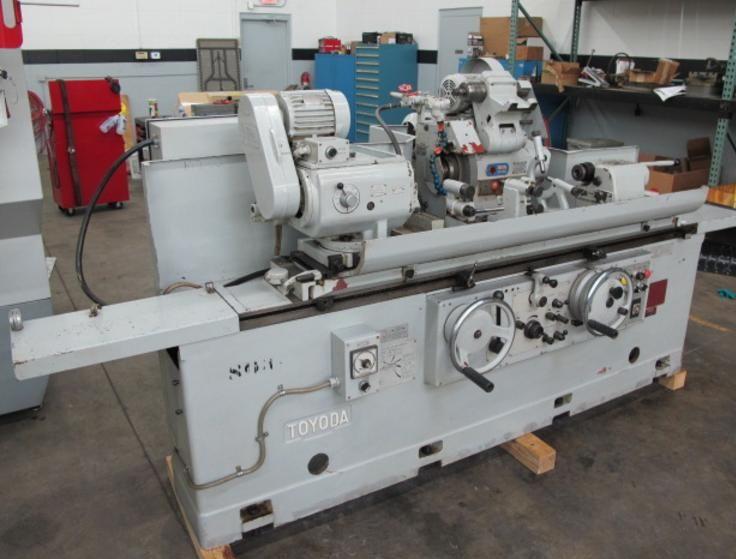

Toyoda Americas x100 Specifications

Swing over Bed: 12.6"
Distance Between Centers: 40"
Max Grinding Diameter: 11"
Max Table Load: 330 LBS
WheelHead Swivel Range: +30/-30 Degrees
Table Swivel Range: +10/-10 Degrees
Work Head Speeds: 16-250 RPM
Work Head Swivel Range: 90 Degree CW, 30 Degree CCW
Spindle Speeds: 1790 / 2195 RPM
Max Grinding Wheel Size: 14" x 2" x 5"
Table Speeds: 2-157 IPM
Spindle Motor: 5 HP
Tail Stock Taper: MT No. 4
Tailstock Quill Stroke: 1"

Do you have a Toyoda Americas x100 to sell?

We are actively seeking a 1985 Toyoda GUP 32x100 Universal Cylindrical Grinder. This exceptional CNC grinding machine is designed for precision and efficiency, making it a valuable asset in any manufacturing environment. With a swing over bed of 12.6 inches and a distance between centers of 40 inches, the GUP 32x100 is capable of handling a variety of grinding tasks with ease. Its maximum grinding diameter of 11 inches allows for versatility in production, while the robust construction ensures durability and reliability. The machine features a maximum table load of 330 pounds, accommodating heavy workpieces without compromising performance.

The WheelHead swivel range of +30/-30 degrees and the table swivel range of +10/-10 degrees provide exceptional flexibility for complex grinding operations. With work head speeds ranging from 16 to 250 RPM and spindle speeds of 1790 and 2195 RPM, this grinder can tackle both rough and fine plunge grinding with precision. The Toyoda GUP 32x100 is equipped with a 5 HP spindle motor, providing the necessary power for demanding applications. The maximum grinding wheel size of 14 inches by 2 inches by 5 inches enhances its capability, while the table speeds of 2-157 inches per minute allow for efficient material removal. Additionally, the tailstock taper of MT No. 4 and a quill stroke of 1 inch ensure accuracy in workpiece positioning.

If you own a 1985 Toyoda GUP 32x100 Universal Cylindrical Grinder and are looking to sell, we are here to help. At Superior Machine Tools, we specialize in buying used CNC machines, and we offer competitive prices for your equipment. Contact us today to discuss your machine and get a fair quote!
