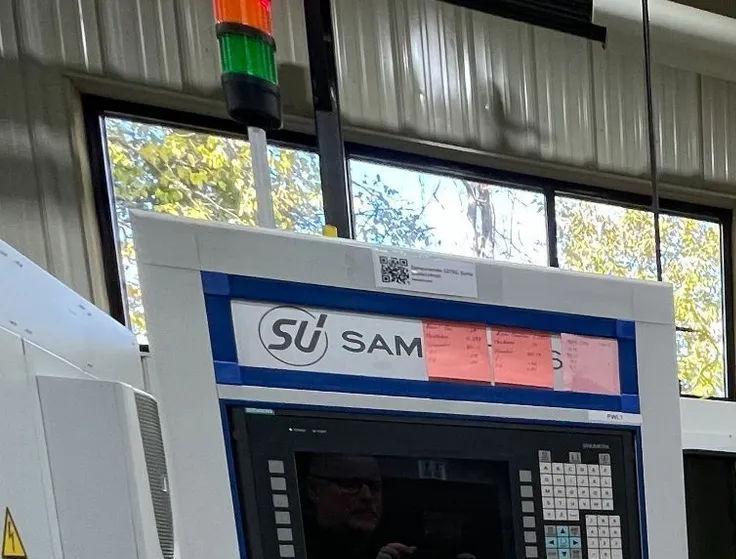

Make: Samputensili
Model: S375G
CNC Control: CNC (Siemens 840D)
Year: 2007
Category: CNC Gear Machinery
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Samputensili S375G Specifications

Max Gear Dia.: 400 mm
Control: CNC (Siemens 840D)
Dimensions: L: 4500mm x D: 5850mm x H: 2708mm
Weight: 9,500Kg
Maximum work-piece outside diameter: 14.76” (375mm)
Profile depth with dressable form wheels: 0.0394-1.38” (1-.0-35mm)
Profile depth with electroplated wheels: 0.0197-1.97” (0.5-50mm)
Maximum workpiece length: 34.25” (870mm)
Maximum helix angle: +/- 90°
Number of grindable teeth: 1-999
Maximum weight of workpiece: 110 Lbs. (50 kG)
Axis distance between tool and workpiece spindle: 1.38-13.4” (35-340mm)
Radial travel: 8.267” (210mm)
Axial travel: 23.62” (600mm)
Tangential travel (setting of tool centerline): 0.06299” (1.6mm)
Swivel angle: -35 … 180°
Drive power: 15 HP (11 kW)
Tool diameter for external gears: 1.57-11.8” (40-300mm)
Maximum width of dressable form wheels: 1.57” (40mm)
Maximum width of dressable form wheels with relief: 2.362” (60mm)
Maximum width of electroplated wheels: 1.181” (30mm)
Maximum width of electroplated wheels with special tool arbor: 2.362” (60mm)
Speed range of tool spindle: 0-18,000 rpm
Speed range of workpiece spindle: 0-100 rpm
Speed range of tool head swivel axis: 0-4 rpm
Speed range of dresser spindle (optional): 0-3,000 rpm
Feed range - axial: 0-10,000 mm/min
Feed range - radial: 0-10,000 mm/min
Positioning resolution linear axis: 0.0001mm
Positioning resolution tool and workpiece spindle: 0.0001°
Total connected load machine/with coolant unit: 50/80 kVA
Rated power of main motor: 11/20 kW
Operating voltage: 480 V AC
Control voltage: 24 V DC
CNC axes: four (4)
Total weight of base machine: 24,200 Lbs. (11,000 kG)
Overall dimensions (LxBxH), approx.: 201 x 228 x 106” (5100x5800x2700mm)
Required ambient temperature: 15 …38 °C.

Do you have a Samputensili S375G to sell?

We are actively seeking a 2007 Samputensili S375G Gear Grinder. This exceptional CNC machine is designed for precision grinding of external spur and helical gears, making it an ideal addition for any manufacturer looking to enhance their production capabilities. With a maximum gear diameter of 400 mm and a maximum workpiece outside diameter of 14.76 inches (375 mm), the S375G is built to handle a variety of gear sizes and profiles. Its advanced CNC control, utilizing Siemens 840D technology, ensures high precision and efficiency in every operation. The dimensions of the machine are L: 4500mm x D: 5850mm x H: 2708mm, and it weighs a substantial 9,500 kg, reflecting its robust construction.

The S375G features an impressive profile depth capability, ranging from 0.0394 to 1.38 inches (1-35 mm) with dressable form wheels, and up to 1.97 inches (0.5-50 mm) with electroplated wheels. It can accommodate a maximum workpiece length of 34.25 inches (870 mm) and handle a maximum weight of 110 lbs (50 kg). With a range of 1-999 grindable teeth and a maximum helix angle of +/- 90°, this machine is versatile for various gear manufacturing needs. The axis distance between the tool and workpiece spindle ranges from 1.38 to 13.4 inches (35-340 mm), providing flexibility in setup. The S375G also boasts a speed range of the tool spindle from 0-18,000 rpm and the workpiece spindle from 0-100 rpm, ensuring optimal performance.

If you have a 2007 Samputensili S375G Gear Grinder that you are looking to sell, we invite you to contact us. We specialize in purchasing used CNC machines and can offer you a competitive price for your equipment. Don't miss out on the opportunity to turn your surplus machinery into cash. Reach out to us today to discuss your options!
