Sell your Pfauter-Maag SH-250 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

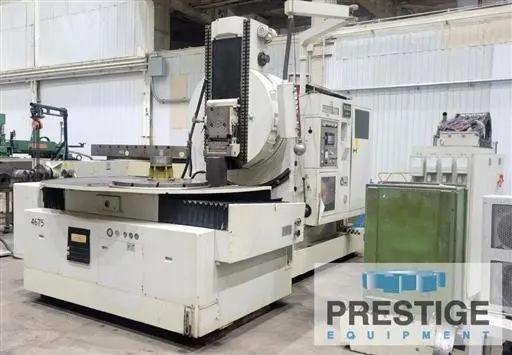

Make: Pfauter-Maag
Model: SH-250
Year: 1974
Category: CNC Gear Machinery
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Pfauter-Maag SH-250 Specifications

Max Dia. Gear: 98.4"
Max. Tip Circle Dia. (Spur Gear): 98.4"
Min. Tip Circle Dia. (Spur Gear): 7.9"
Module Min Pitch w/ Rack-Type Cutter: .0875 DP (30)
Module Max Pitch w/ Rack-Type Cutter: 12.7 DP (2)
Module Max w/ Single-Tooth Cutter: .5 DP (50)
Min./ Max. Number of Teeth: 12/1000
Helix Angle: Infinite
Max. Face Width (Spur Gear): 26"
Max. Table Load: 33000 lbs.
Max. Ram Stroke: 27"
Min. Ram Stroke: 2.75"
Diameter of Work Table Bore: 16.5"
Work Table Bore Length: 47.2"
Machine Footprint (L X W): 235" x 169"
Machine Height: 131"
Machine Weight: 84,000 lbs.

Do you have a Pfauter-Maag SH-250 to sell?

We are actively seeking a 1974 MAAG SH-250 Gear Shaper to add to our inventory of high-quality used CNC machinery. This exceptional gear shaping machine is designed to handle a maximum diameter gear of 98.4 inches, making it ideal for those larger projects. With a min and max tip circle diameter for spur gears ranging from 7.9 inches to 98.4 inches, it offers flexibility for various gear sizes. The SH-250 is equipped with a rack-type cutter, enabling a minimum pitch of .0875 DP and a maximum pitch of 12.7 DP, providing versatility in gear production.

The machine can accommodate a minimum of 12 teeth and a maximum of 1000 teeth, catering to a wide range of gear configurations. With an infinite helix angle, this gear shaper allows for precise adjustments to meet specific manufacturing requirements. It boasts a maximum face width of 26 inches, ensuring that it can handle substantial gear widths, while the robust construction supports a maximum table load of 33,000 lbs, making it suitable for heavy-duty applications. With a ram stroke that varies from 2.75 inches to 27 inches, it offers considerable adaptability in shaping operations.

The diameter of the work table bore is 16.5 inches with a bore length of 47.2 inches, emphasizing its capability for larger workpieces. The machine's footprint measures 235 inches by 169 inches, with a height of 131 inches, and it weighs an impressive 84,000 lbs, underscoring its industrial-grade build. If you have a 1974 MAAG SH-250 Gear Shaper for sale, we want to hear from you! Contact us today to discuss how we can facilitate a smooth transaction and get you the best price for your equipment.
