Direct procurement2020 Model

Sell your Nakamura-Tome SC 300 II today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

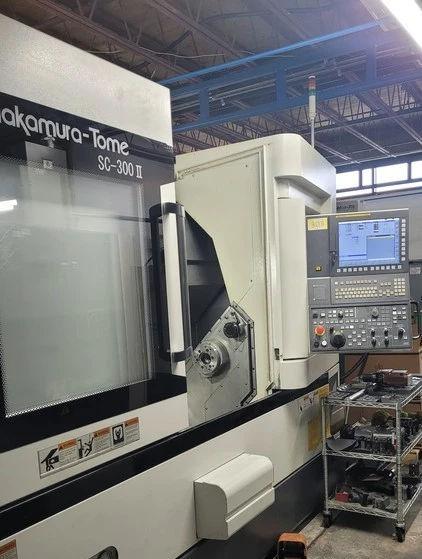

Make: Nakamura-Tome
Model: SC 300 II
CNC Control: CNC.
Year: 2020
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Nakamura-Tome SC 300 II Specifications

Maximum Swing: 14.17"
Max Turning Diameter: 14.17"
Main Spindle Bore/Max Bar Capacity: 3.7/3.2"
Maximum Cutting Length: 23.7"
Distance Between Spindles: 31.8"
X-Axis Travel: 9.15
Z-Axis Travel: 25
Y-Axis Travel: ±2.36
C-Axis Indexing: 0.001
Main Spindle Chuck Size: 12"
Main Spindle Chuck Type: Hydraulic
Main Spindle Bore Diameter: 3.7"
Main Spindle Maximum Bar Work: 3.2"
Main Spindle Speed: 3,500 RPM
Main Spindle Horsepower: 30/25
Sub Spindle/2nd Spindle Chuck Size: 8
Sub Spindle/2nd Spindle Chuck Type: Hydraulic
Sub Spindle/2nd Spindle Speed: 3,600 RPM
Number of Turrets: 1
Turret Tool Positions: 12
Turret Rotary Tool Spindle Speed: 6000
Turret Rotary Tool Horse Power: 7.0
B-Axis Travel: 19.7
Chip Conveyor: Yes
Tool Eye Measurement Upper Turret: Yes
Rapid Traverse, X-Axis: 788
Rapid Traverse, Y-Axis: 236
Rapid Traverse, Z-Axis: 1181
Control: CNC.

Do you have a Nakamura-Tome SC 300 II to sell?

We are actively seeking a 2020 Nakamura Tome SC 300 II CNC lathe. This multi-axis turning center is recognized for its exceptional performance and versatility, making it an ideal choice for precision machining applications. The SC 300 II features a robust 12-inch hydraulic chuck on the main spindle and an 8-inch hydraulic chuck on the sub-spindle, allowing for efficient handling of various workpieces. With a maximum swing and turning diameter of 14.17 inches, this machine can accommodate a wide range of parts, while the main spindle bore diameter of 3.7 inches and maximum bar capacity of 3.2 inches provide enhanced throughput.

The SC 300 II boasts an impressive main spindle speed of 3,500 RPM and a powerful 30 HP motor, ensuring quick and efficient machining operations. The machine also features a sub-spindle capable of 3,600 RPM, enhancing productivity with simultaneous operations. The turret, equipped with 12 tool positions, allows for quick tool changes, while the rotary tool spindle speed of 6,000 RPM and horsepower of 7.0 provide versatility for complex machining tasks. The X, Y, and Z-axis travels of 9.15, ±2.36, and 25 inches, respectively, combined with rapid traverse rates of 788, 236, and 1181 inches per minute, ensure efficient movement and reduced cycle times.

Additionally, the integrated chip conveyor and tool eye measurement enhance the overall operational efficiency of the SC 300 II. If you have a 2020 Nakamura Tome SC 300 II that you are looking to sell, we encourage you to contact us today for a competitive offer. Your machine can help another business thrive while you benefit from a seamless selling process.
