Direct procurement2009 Model

Sell your Mazak VORTEX 815 /120 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Mazak

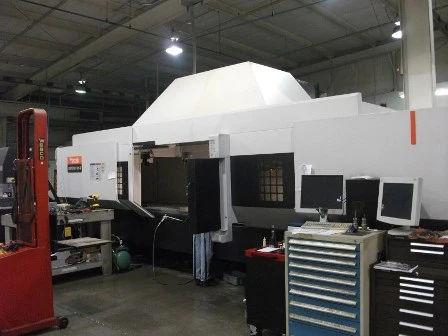

Model: VORTEX 815 /120
CNC Control: CNC (FANUC 31i - 5X)
Year: 2009
Category: CNC 5-Axis Machining Centers
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak VORTEX 815 /120 Specifications

# Axis: 5
Spindle Speed: 13,000 RPM
Atc Capacity: 60
Table Size: 31.9" x 127.56"
Main Spindle Motor: 50 HP
Spindle Taper: CAT 50
Table Type A-Axis Trunnion Tilt Range: -40 - +40 degrees
Coolant Thru High Pressure: Yes
Control: CNC (FANUC 31i - 5X)
Machine Weight: 42,200 LBS
Rapid Traverse Rates: 945 IPM (X), 945 IPM (Y), 787 IPM (Z)
Maximum Tool Diameter: 8.27"
Maximum Tool Length: 14.96"
Maximum Tool Weight: 44 LBS
Approx Machine Weight: 42,200 LBS
Other: Distance from Spindle Nose to Table Top: 5.00" - 29.02", Table Load Capacity: 6,600 LBS, Axes Movement: Full 5 Axis's Contouring, Approx Machine Dimensions: Not Available, Approx Weight: Not Available, Atc: Not Available, Atc Position Quantity: Not Available, Atc Stations: Not Available, Auto Tool Change: Not Available, Auto Tool Changer: Not Available, Automatic Tool Changer: Not Available, Automatic Tool Changer Capacity: Not Available, Axis Control: Not Available, Axis Diameter: Not Available, Axis Stroke Effective Stroke: Not Available, Maximum Spindle Speed: 13,000 RPM, Spindle Motor Power: 50 HP, Tool Change Time: Not Available, Cutting Feed Rate: Not Available, Work Envelope: Not Available, Power Supply: Not Available, Voltage: Not Available, Frequency: Not Available, Software Compatibility: Not Available, Tool Holder Type: Not Available, Chip Removal System: Not Available, Lubrication System: Not Available, Maximum Workpiece Weight: Not Available, Maximum Workpiece Size: Not Available, Minimum Workpiece Size: Not Available, Repeatability: Not Available, Positioning Accuracy: Not Available, Drive System: Not Available, Linear Guide Type: Not Available, Ball Screw Type: Not Available, Servo Motor Type: Not Available, Control Interface: Not Available, Safety Features: Not Available, Noise Level: Not Available, Environmental Requirements: Not Available.

Do you have a Mazak VORTEX 815 /120 to sell?

We are actively seeking a 2009 MAZAK VORTEX 815/120 CNC Vertical Machining Center. This impressive machine combines advanced technology with robust performance capabilities, making it an ideal choice for a variety of machining tasks. With an expansive X-axis travel of 120 inches, Y-axis travel of 31.89 inches, and Z-axis travel of 24.02 inches, this vertical machining center provides the versatility needed for complex operations. The machine is equipped with a powerful 50 hp spindle motor that can achieve speeds of up to 13,000 RPM, allowing for efficient cutting and machining of various materials. The 2009 VORTEX 815/120 features a 60-tool automatic tool changer, which enhances productivity by minimizing downtime between tool changes.

The table size of 31.9 inches by 127.56 inches accommodates substantial workpieces, with a maximum table load capacity of 6,600 pounds. Additionally, the machine's rapid traverse rates of 945 IPM on the X and Y axes and 787 IPM on the Z axis ensure quick positioning and responsiveness, crucial for high-volume production environments. Equipped with a full 5-axis contouring capability, this machine allows for intricate machining operations, making it suitable for industries such as aerospace, automotive, and job shops. The FANUC 31i control system provides advanced programming options, ensuring that users can achieve precise results with ease. Sellers often decide to part with machines like this for various reasons, including upgrading to newer technology, downsizing operations, or even closing facilities.

Whether you're facing a transition in your business or simply looking to free up space, we understand the challenges involved in selling machinery. We also handle all logistics, so you can focus on what matters most. If you have a 2009 MAZAK VORTEX 815/120 or similar CNC vertical machining center that you're ready to sell, reach out to us today, and let's make it happen.
