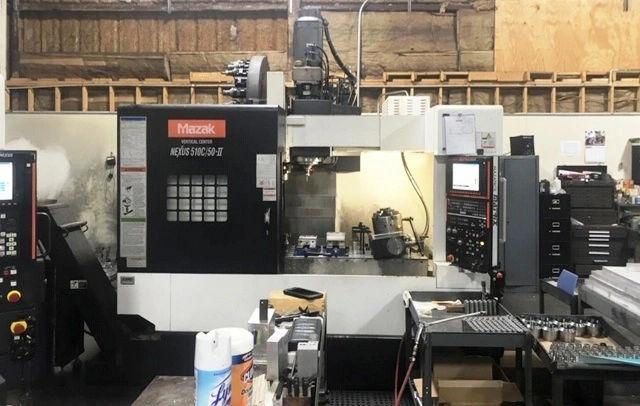

Mazak VCN 510C-II /50 TAPER 4 AXIS (2013)

Direct procurement2013 Model

Sell your Mazak VCN 510C-II /50 TAPER 4 AXIS today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Mazak
Model: VCN 510C-II /50 TAPER 4 AXIS
Year: 2013
Category: CNC Vertical Machining Centers (VMC)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak VCN 510C-II /50 TAPER 4 AXIS Specifications

# Axis: 4
Table Size: 51.18" x 21.65"
Table Load Capacity: 2630 LBS
Spindle Nose To Table Top: 5.9" to 25.98"
X Travel: 41.3"
Y Travel: 20.87"
Z Travel: 20.07"
Spindle Speed: 6000 RPM
Spindle Motor Power: 25 HP
Rapid Traverse Rate: 1417 IPM
Atc Capacity: 30
Maximum Tool Diameter: 4.920"
Maximum Tool Weight: 17.64 LBS
Maximum Tool Length: 13.78"
Machine Weight: 16,600 LBS
Control System: CNC (MAZATROL MATRIX)
Other: Coolant Thru High Pressure: Yes
Other: Hi Pressure Coolant System: 213 psi
Other: Part Probe: Yes
Other: Tool Probe/Auto Tool Length Measurement: Yes
Other: 4th Axis: .001 N/C Contouring 360000 Degrees
Other: 4th Axis Rotary Table Size: 10"
Other: Tool Capacity (ATC): 30
Other: Main Spindle Motor: 25 hp
Other: Spindle Taper: CAT 50.

Do you have a Mazak VCN 510C-II /50 TAPER 4 AXIS to sell?

We are actively seeking a 2013 MAZAK VCN 510C-II /50 TAPER 4 AXIS Vertical Machining Center. This impressive machine boasts an X-axis travel of 41.3 inches, Y-axis travel of 20.87 inches, and Z-axis travel of 20.07 inches, making it an excellent choice for a variety of machining tasks. With a spindle speed of 6000 RPM and a CAT 50 spindle taper, this model is designed to handle demanding applications with precision and efficiency. The machine's robust 25 HP main spindle motor ensures reliable performance, while the 30-tool automatic tool changer facilitates quick tool changes, enhancing productivity on the shop floor.

The MAZAK VCN 510C-II is equipped with a spacious table measuring 51.18 inches by 21.65 inches, capable of supporting loads up to 2630 pounds. Its advanced CNC control system, featuring the MAZATROL MATRIX, allows for intuitive operation and programming, making it suitable for both experienced machinists and newcomers alike. Additionally, this model includes a hi-pressure coolant system with 213 psi, ensuring optimal cooling during operation, and a built-in part probe for enhanced measurement accuracy. Sellers often part with their machines for a variety of reasons, including upgrading to newer models, downsizing operations, or closing facilities altogether.

If you find yourself in any of these situations, know that we are here to help you transition smoothly. If you own a 2013 MAZAK VCN 510C-II /50 TAPER or a similar model, reach out to us today. We're ready to make the selling process as easy as possible for you, so you can focus on your next venture.
