Direct procurement1998 Model

Sell your Mazak V 655/80N today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

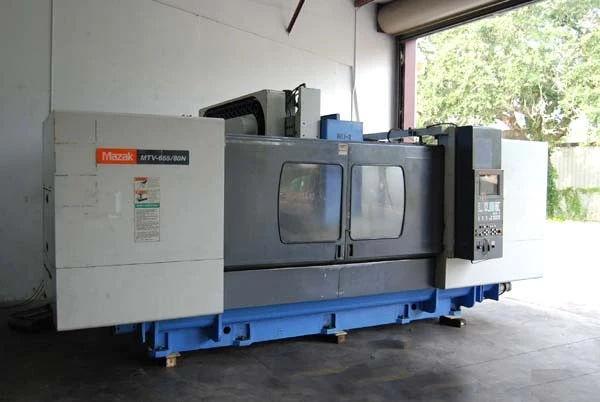

Make: Mazak
Model: V 655/80N
CNC Control: CNC (MAZATROL M-PLUS)
Year: 1998
Category: CNC Vertical Machining Centers (VMC)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak V 655/80N Specifications

# Axis: 3
Table Size: 25.6" x 88.1"
X Travel: 78.75"
Y Travel: 25.6"
Z Travel: 25.6"
Spindle Speed: 6,000 RPM
Tool Capacity (ATC): 30
Main Spindle Motor: 35 HP
Spindle Taper: CAT 50
Spindle Nose To Table Top: 7.87"-33.46"
Coolant Thru: Yes
Control: CNC (MAZATROL M-PLUS)
Rapid Traverse Rate: 945 IPM (X,Y), 708 IPM (Z)
Spindle Torque: 544 ft-lbs
Tool Magazine: 30 ATC
Maximum Tool Diameter: 4.92"
Maximum Tool Length: 15.75"
Maximum Tool Weight: 44 lbs
Tool Change Time: 2.4 sec
Chip to Chip Time: 7.5 sec
Approx Machine Weight: 5500 lbs.
Approx Machine Dimensions: Not Available
Power Supply: Not Available
Voltage: Not Available
Frequency: Not Available
Software Compatibility: Not Available
Tool Holder Type: Not Available
Chip Removal System: Not Available
Lubrication System: Not Available
Maximum Workpiece Weight: Not Available
Maximum Workpiece Size: Not Available
Minimum Workpiece Size: Not Available
Repeatability: Not Available
Positioning Accuracy: Not Available
Drive System: Not Available
Linear Guide Type: Not Available
Ball Screw Type: Not Available
Servo Motor Type: Not Available
Control Interface: Not Available
Safety Features: Not Available
Noise Level: Not Available
Environmental Requirements: Not Available
Axes Movement: Not Available
Axis Control: Not Available
Axis Diameter: Not Available
Axis Stroke Effective Stroke: Not Available
Atc Position Quantity: Not Available
Atc Stations: Not Available
Auto Tool Change: Not Available
Auto Tool Changer: Not Available
Automatic Tool Changer: Not Available
Automatic Tool Changer Capacity: Not Available
Work Envelope: Not Available
Machine Weight: Not Available
Machine Dimensions: Not Available.

Do you have a Mazak V 655/80N to sell?

We are actively seeking a 1998 MAZAK V 655/80N Vertical 3-Axis CNC Machining Center. This robust machine features generous X, Y, and Z travels of 78.75", 25.6", and 25.6" respectively, making it an excellent choice for a variety of machining tasks. The MAZAK V 655/80N is equipped with a powerful 35 hp main spindle motor and operates at a spindle speed of up to 6,000 RPM, allowing for efficient material removal and precise finishes. Its CAT 50 spindle taper ensures compatibility with a wide range of tooling, enhancing its versatility for different applications. With an automatic tool changer (ATC) capacity of 30 tools, this model offers the convenience of quick tool swaps, which can significantly reduce downtime during production runs.

The machine is designed with a spacious table size of 88.1" x 25.6", and it can support a table load capacity of up to 5,500 lbs, making it ideal for handling larger workpieces. The MAZATROL M-PLUS CNC control system is user-friendly, providing operators with the ability to program complex parts with ease. Features such as coolant through the spindle and auto tool length measurement enhance operational efficiency and precision. Furthermore, the machine is prepped for a 4th axis, with all necessary cabling and clamping already in place, offering future expansion possibilities for those looking to grow their capabilities. Sellers often part with machines like the MAZAK V 655/80N for various reasons, including upgrading to newer technology, downsizing operations, or closing facilities.

If you own a 1998 MAZAK V 655/80N or similar models and are considering selling, we invite you to reach out to us. Let us help you turn your equipment into cash with minimal hassle. Your machine could be just what another shop needs, and we are ready to make a fair offer today.
